ATND1061LK

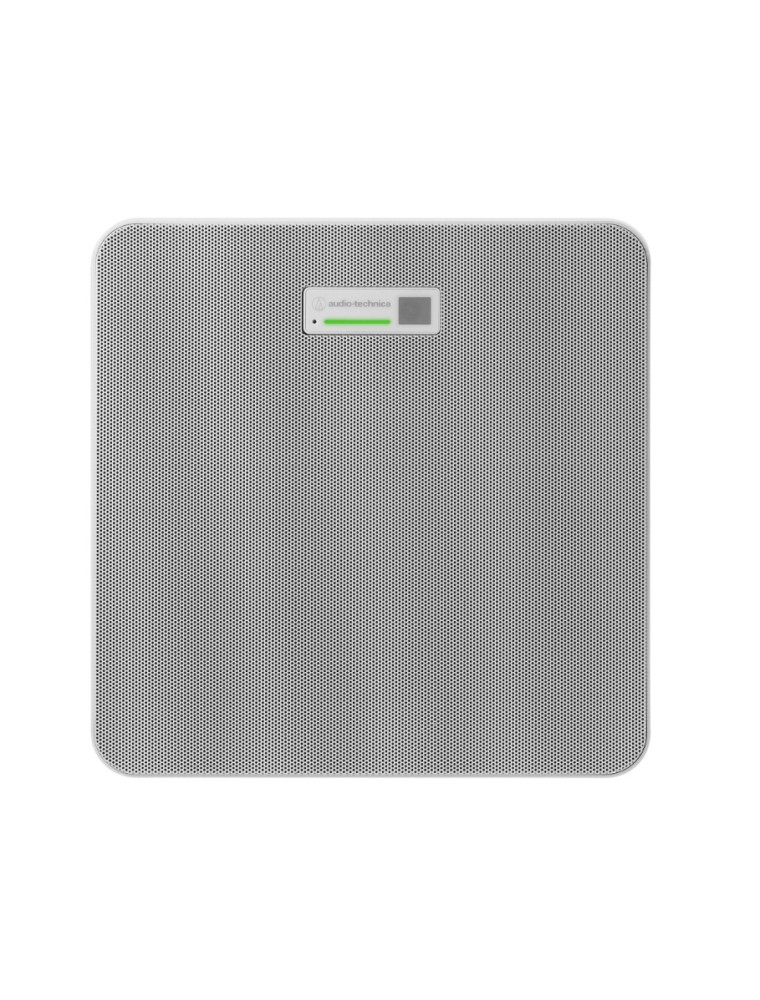

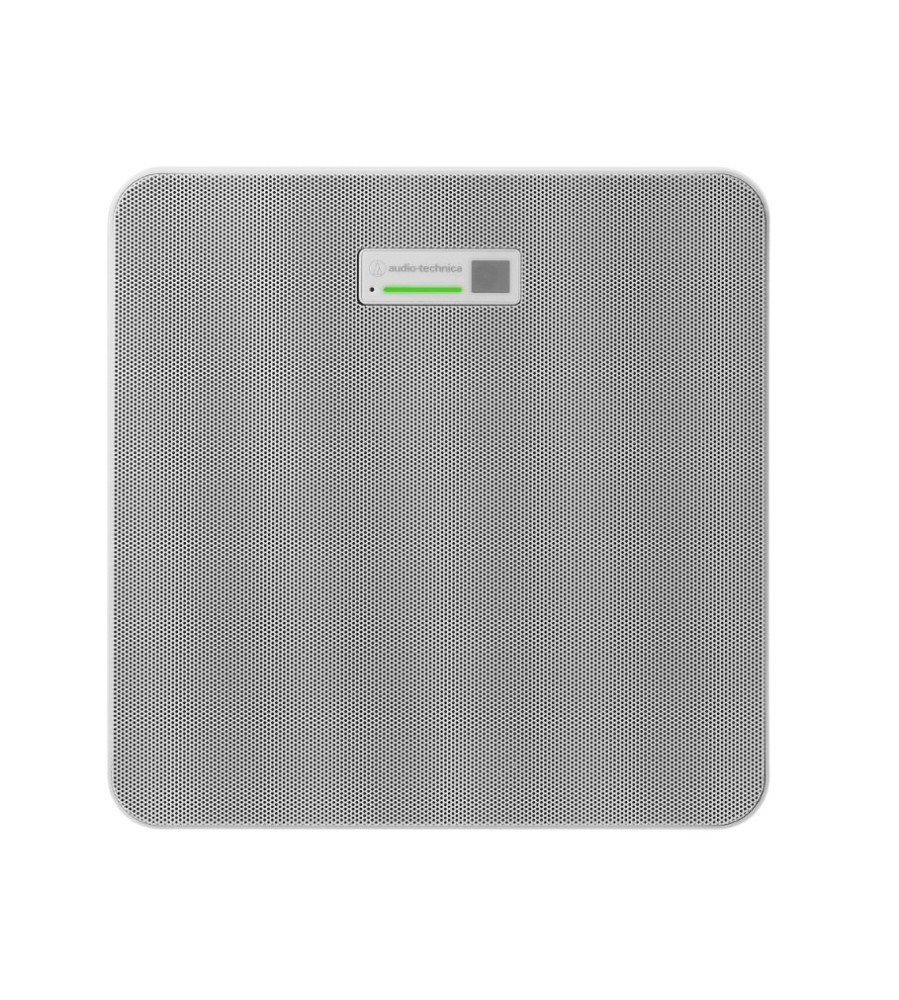

The ATND1061LK Beamforming Ceiling Array Microphone is an ideal solution for

conference rooms, boardrooms, and meeting spaces large and small. The

microphone may be used singly or in multiples (for larger meeting spaces) to

capture every person speaking in a room with clear, natural audio that reduces

distracting environmental sounds. A state-of-the-art professional product in a

familiar form factor (roughly the size of a wireless access point), the ATND1061LK

is easy to install, set up and operate.

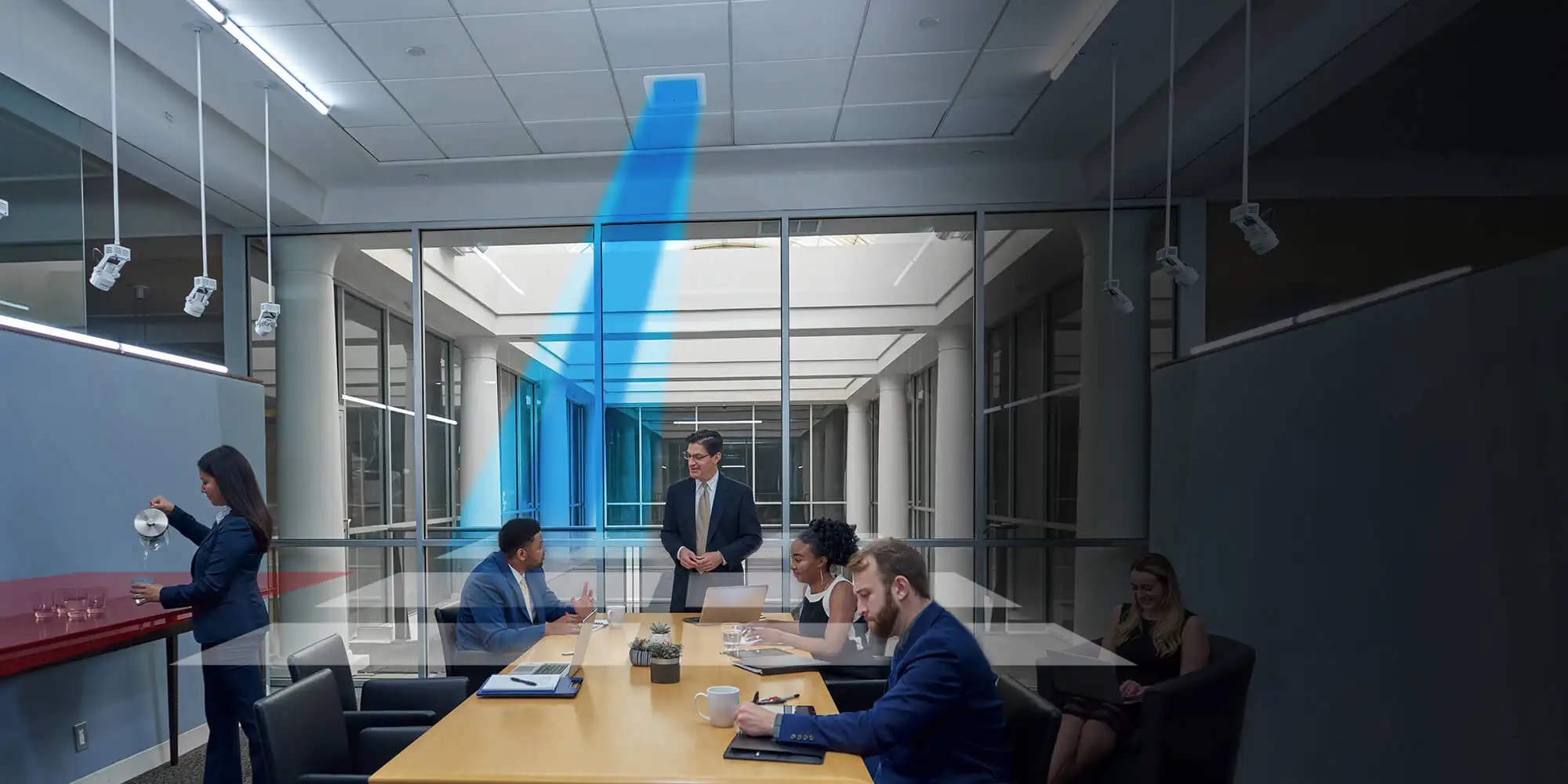

Beam and Zone Operation

Each microphone supports a maximum of 6 simultaneous beams as defined below:

One beam will cover Up to 16 Coverage Zones Five simultaneous beams will cover

Up to 16 Priority ZonesUnlimited Exclusion Zones

The ATND1061LK beamforming microphone array is an ideal solution for

conference rooms, boardrooms, and meeting spaces large and small

Powerful onboard DSP: automix, acoustic echo cancelation, noise

reduction, automatic gain control, and 4-band EQ

User-friendly Digital Microphone Manager software easily configures single or

multiple ATND1061LK microphone settings.

Six individual output channels with up to 32 user-defined microphone pickup

zones provide the flexibility to cover a wide variety of room sizes and meeting

types .Output Channel 1 can be configured with up to 16 user-defined Coverage

Zones to ensure coverage of nonpriority or unplanned participants

Output Channels 2–6 can be configured with up to 16 user-defined Priority

Zones to ensure priority pickup of participants in known locations

Proprietary voice activity detection (VAD) technology enables the microphone

to discern between a voice and unwanted noises such as paper shuffling

Exclusion zones can be set in the software to avoid known sources of

unwanted noise (such as air-handling systems).

Mounts flush or on the surface of a drop ceiling or hard ceiling, or in open

architecture spaces using VESA mount UL 2043 compliant for installation

in plenum spaces Includes tile bridge, safety wiring, and mounting hardware

and accessories . Low-reflective white finish matches ceiling tiles in most

environments

Powered by network PoE

Stand Alone Mode
Each microphone operates independently

Link Mode
Allow Gain Sharing link
