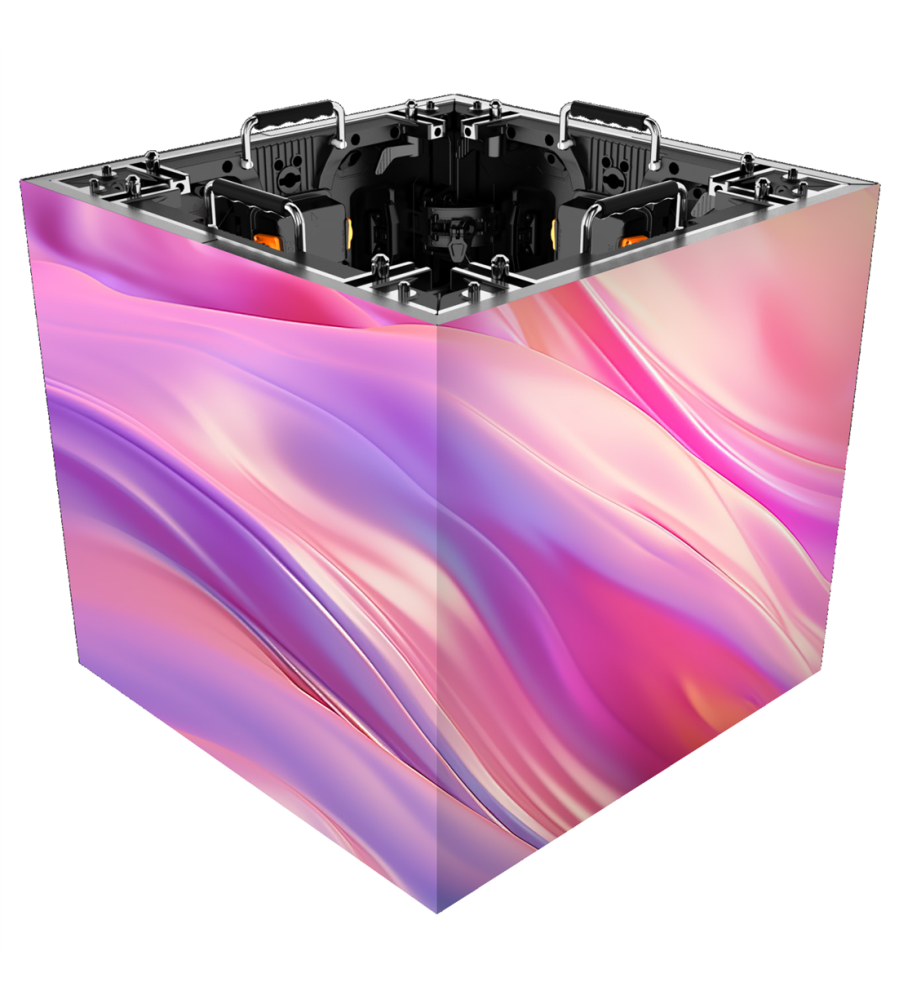

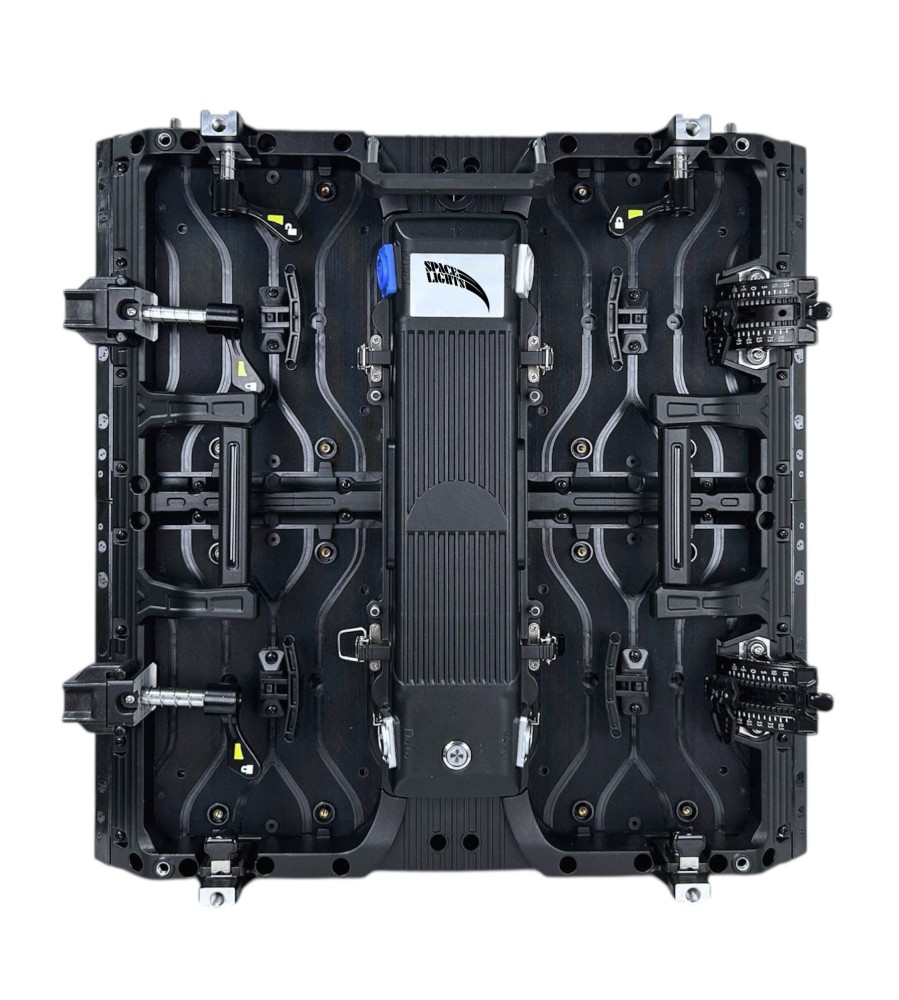

P1.92 GOB CUBE / CURVED AND STRAIGHT CABINET

Pitch (mm)

P1.923 Indoor

LED Packaging

Kinglight lamps smd1515 GOB

LED Arrangement

3 in 1

Brightness (cd/m^2)

1000 - 1200cd/sqm

Density (Real) (dots/m^2)

277.729

Cabinet Weight （kg）

7.5 KG

Module Size (mm)

(L)=250 ; (H)=250 ;

Module Resolution (dots)

132x132= 17424 dots

Cabinet Size (mm)

(L)=500 ; (H)=500

Resolution/Cabinet

264 X 264= 69696 dots

Cabinet

Die-Cast Aluminum

Angle-Level (angle)

140 (Right/Left)

Angle-Vertical (angle)

140 (Up/Down)

Best-Vision-Distance (m)

2 m and upwards

Gray Grade (Rank)

16.384

Display Color (Color)

Full Color (16.7m)

Drive Mode

1/32 Constant Current Driver

Refresh rate

7680hz

Max Power Consumption (W/m^2)

1200

Avg Power Consumption (W/m^2)

600~960

Voltage (V)

AC: 200 -260V 50 Hz

Protection Level (IP)

IP56

IC’s

FM6373

Time (hr)

> 10,000

Temperature (℃)

-20 ~ 50

Relative humidity (RH)

25% ~ 95%
