HK AUDIO CONTOUR X CX8

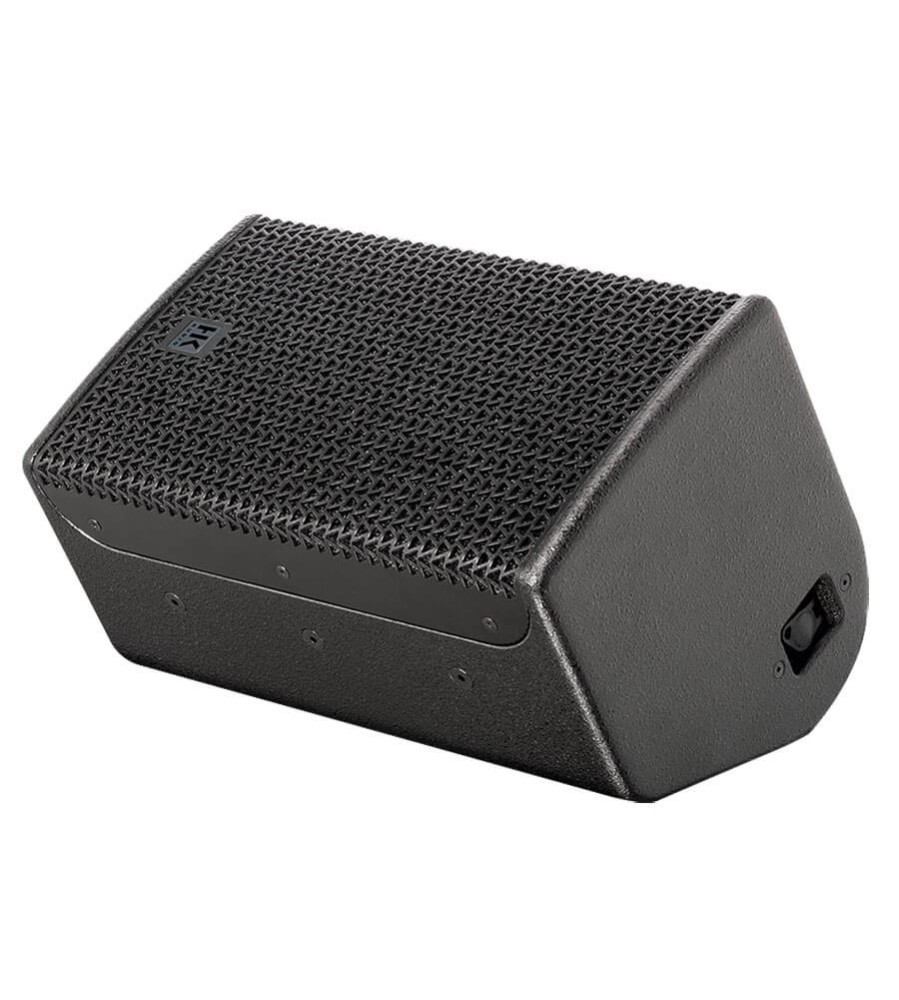

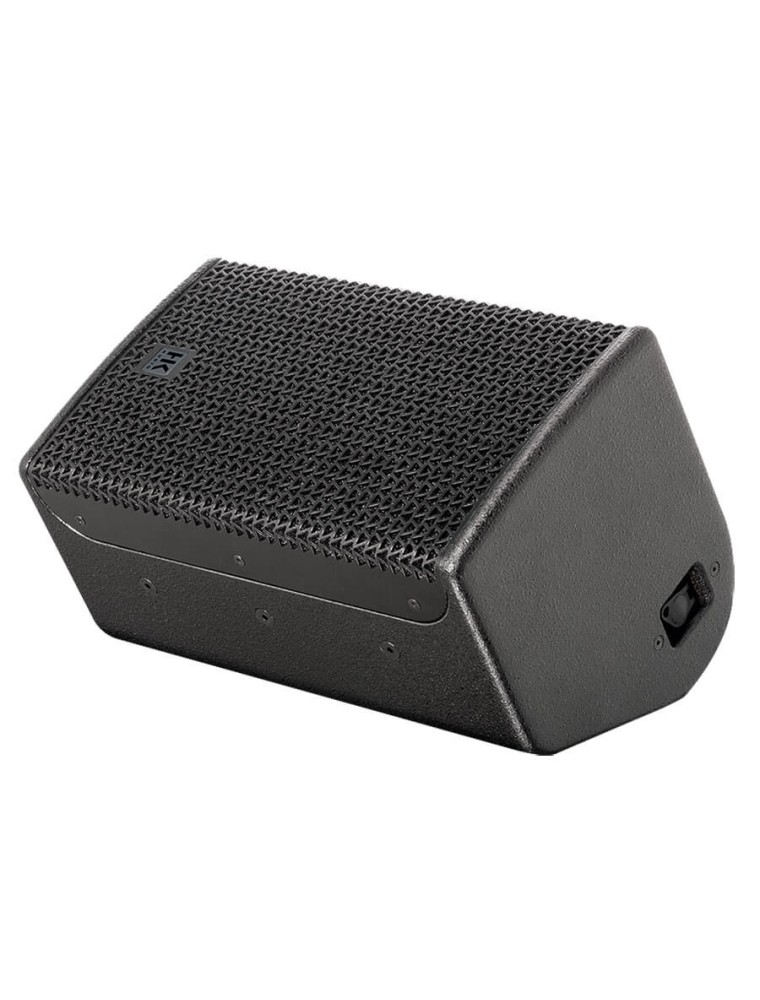

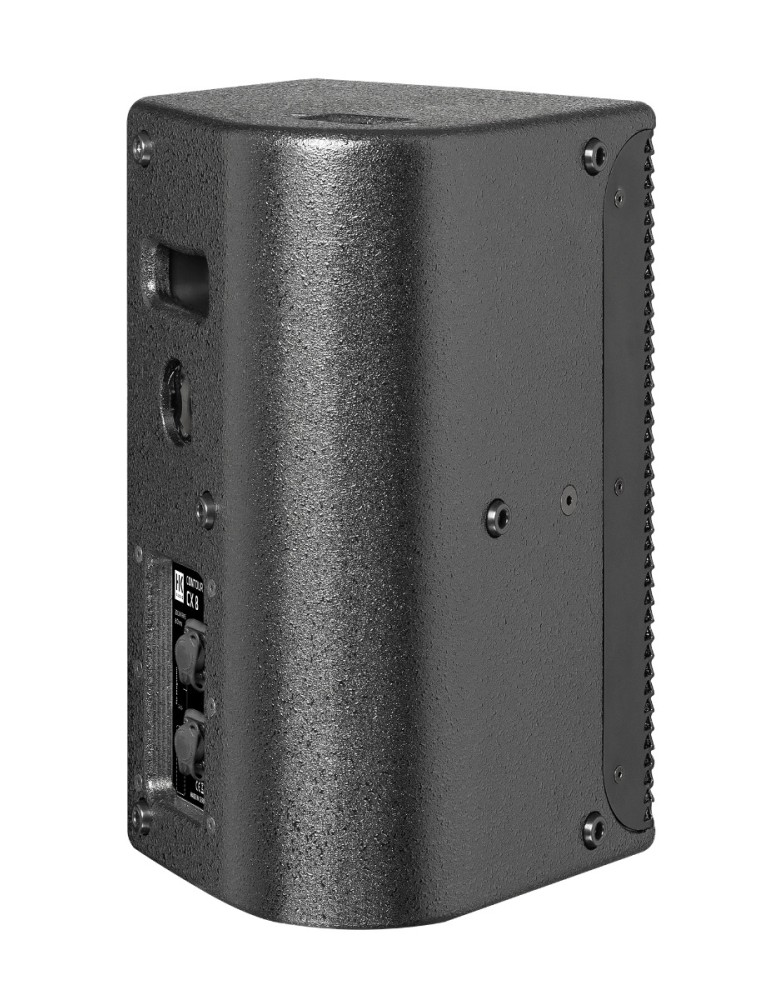

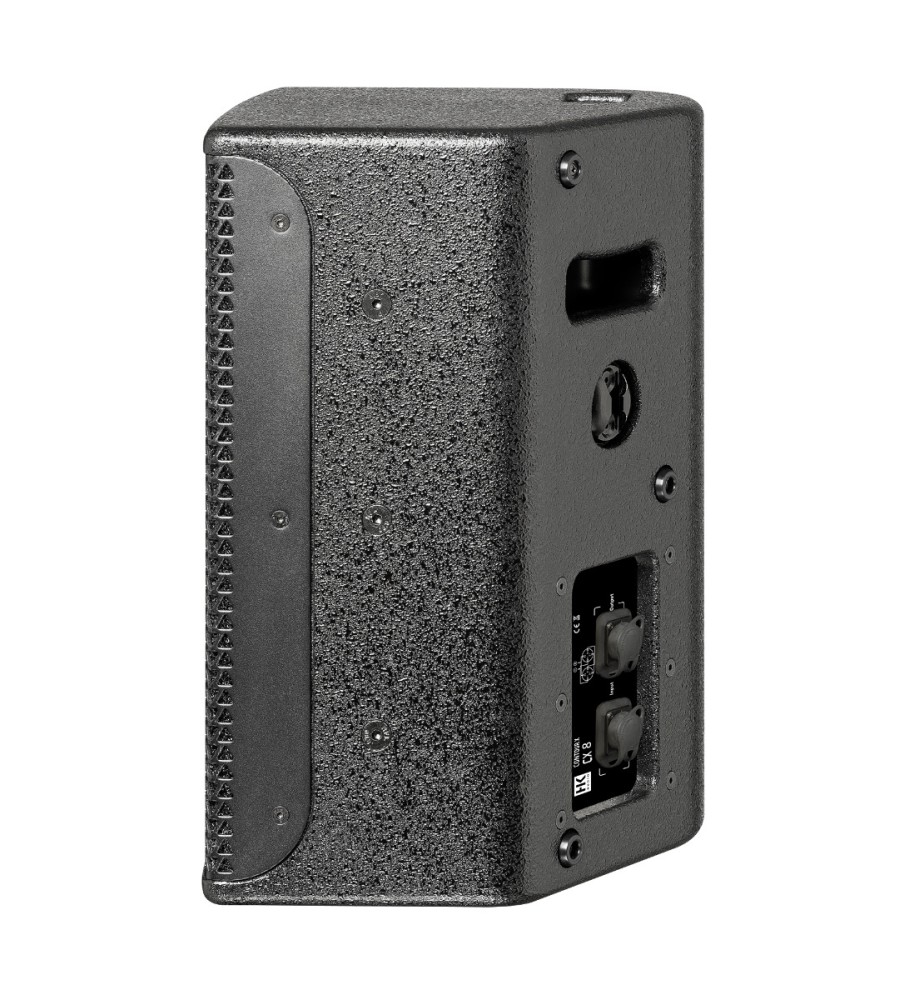

Remarkably compact and versatile, the CX 8 comes with a dual-purpose housing tuned to deliver very persuasive performance for a variety of applications. This unit serves as an FOH speaker with astonishingly adult fullrange capability. It is no less impressive as a high-quality monitor on cramped stages and as an inconspicuous but loud front-fill on the front edge of the stage. With its excellent speech intelligibility, it is the perfect medium for public address and vocals. And with its exceptionally wide dynamic range, uniform phase response and richly detailed midrange, the CX 8 also renders acoustic instruments with gloriously natural-sounding response. A high-quality PU finish and a front grille with anticorrosive coating provide armor-like protection on the road. The Speakon Pin Assignment switch on the rear panel sets the input signal to 1 +/- or 2 +/-. This unit comes in right and left versions, and the combination of both with a CS 118 subwoofer gives you a great club system. Another advantage of the CX 8 is that it works wonderfully with and without a controller. It achieves the best audio results when paired with a Lab.Gruppen PLM+ power amp with a LAKE controller as well as with a Powersoft X-Series power amp. Applications: Distributed speech, music, audio and instrument reinforcement and monitoring; FOH top unit for smaller club gigs, front-fill

Model

CX 8
Power-handling nominal (RMS) 300 W
Power-handling, program 600 W
Power-handling, peak 1200 W
Nominal impedance 8 ohms
Max SPL 122 dB (E DIN EN 60268-21:2018-04)
Max SPL calculated 131 dB
Sensitivity 1W/1m 95 dB (100 Hz - 10 kHz), full space
Frequency response +/- 3 dB 76 Hz - 19 kHz
Frequency response -10 dB 65 Hz - 20 kHz
Low/Mid Speaker 1x 8" SICA neodymium with 2.4" voice coil
HF Driver 1" B&C with 1.4" voice coil
Horn characteristics 80° x 60°, rotatable

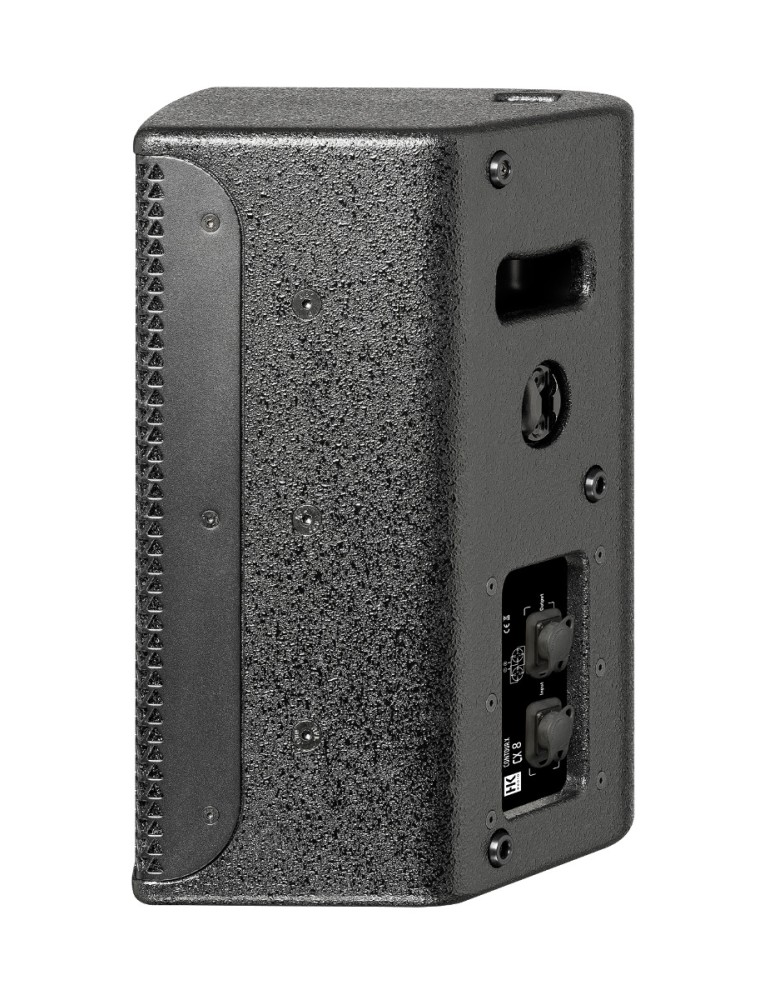

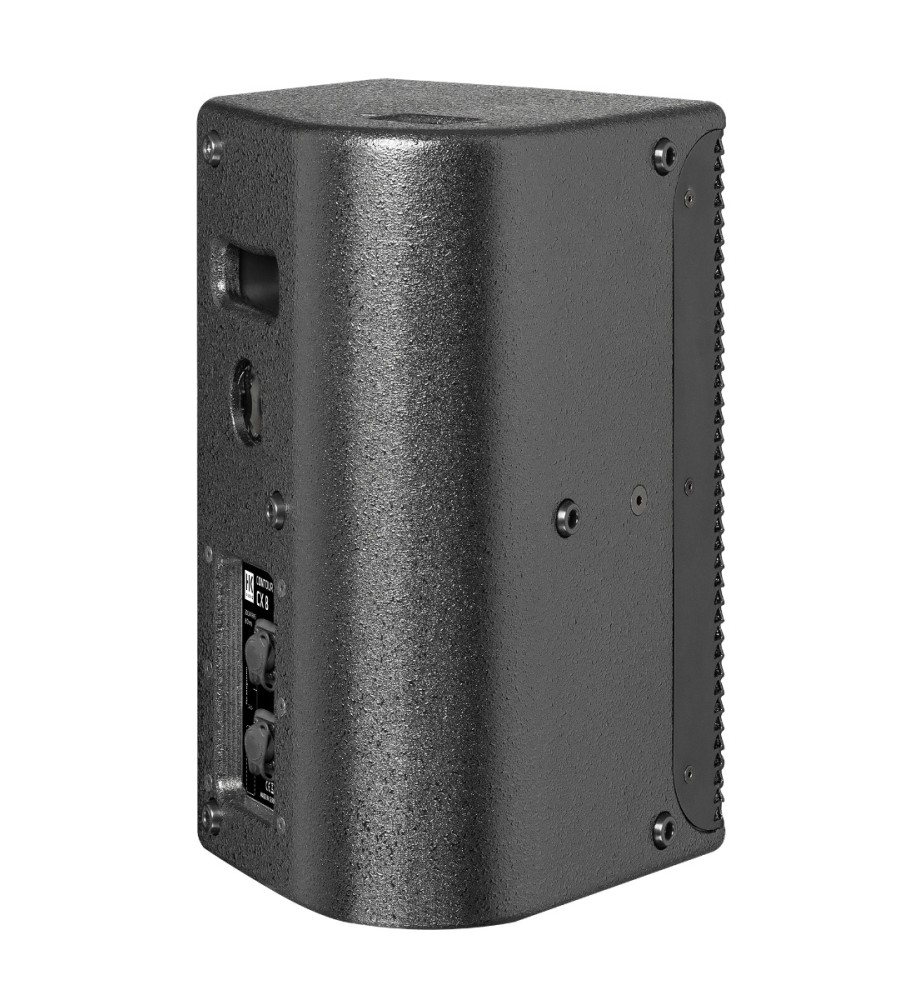

Connections 4x Speakon NL4
Special Features Speakon pin assigment switch (1+/- / 2+/-)
Angles up 30° and 90°

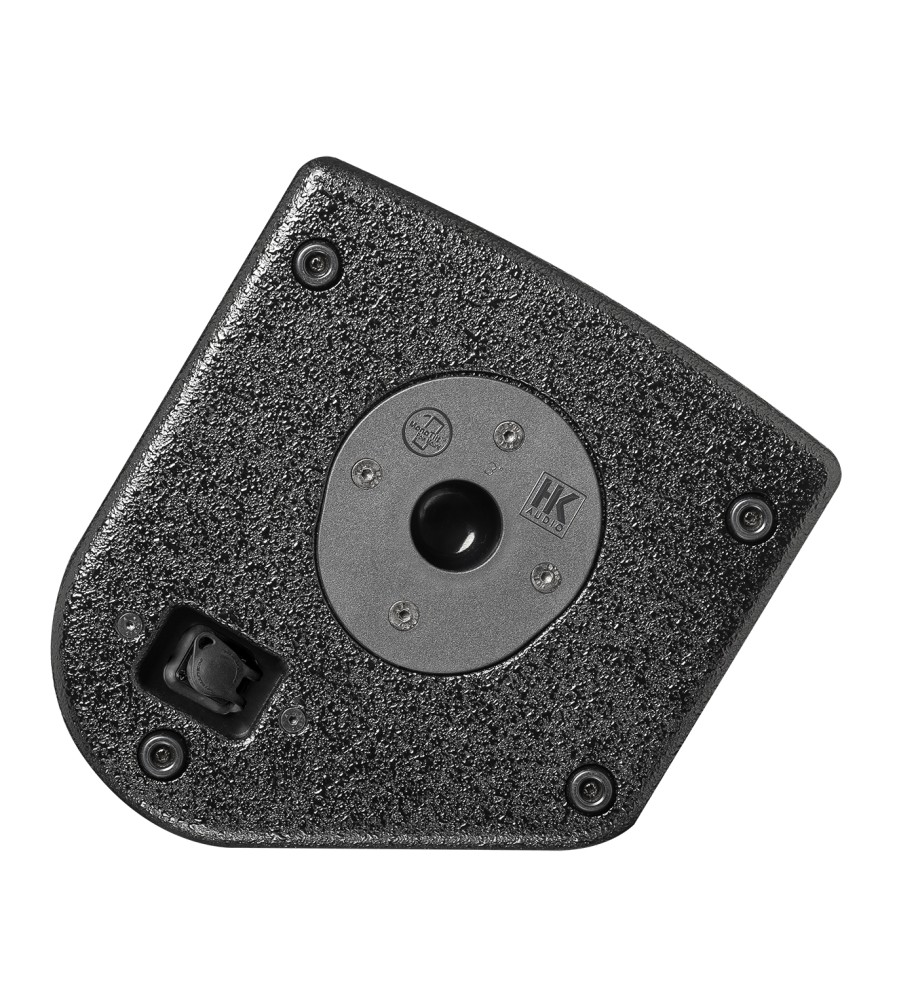

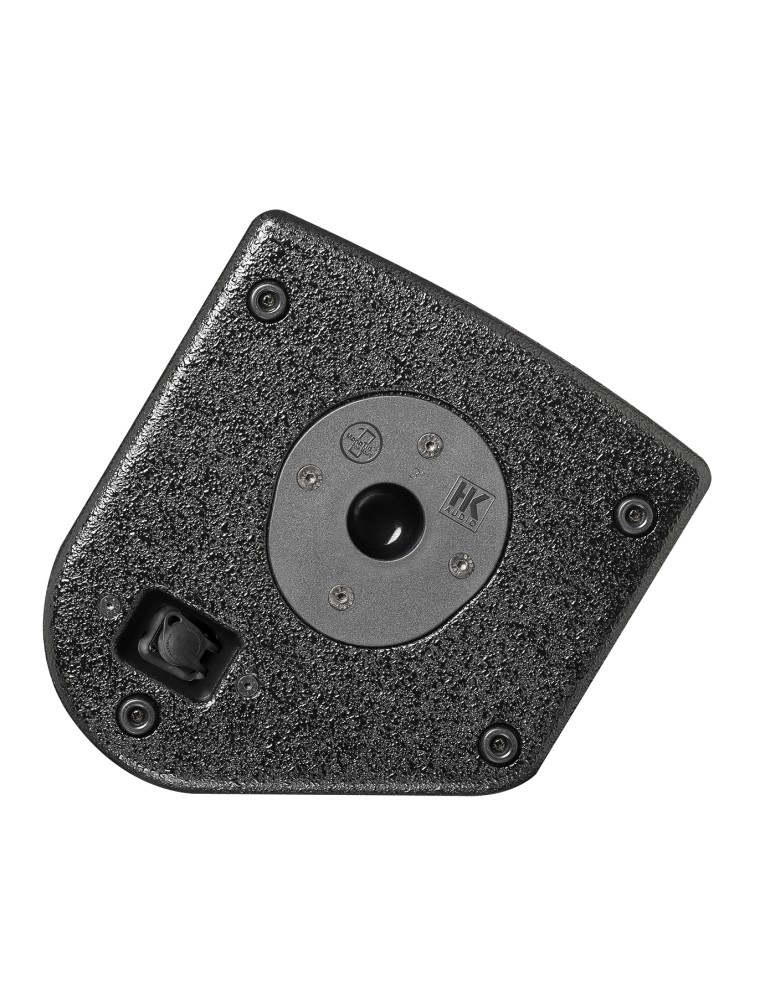

Pole mount HK AUDIO MonoTilt (3°)
Rigging points 4x M8
Handles 1x ergonomic handle
Enclosure birch multiplex
Grille steel front grill with anticorrosive coating, acoustic foam
Finish PU coating
Optional accessories Cover, flying frame TB-L, case
Dimensions (WxHxD) 25.5 x 42.5 x 27 cm
Weight approx. 9.9 kg / 21.8 lbs
