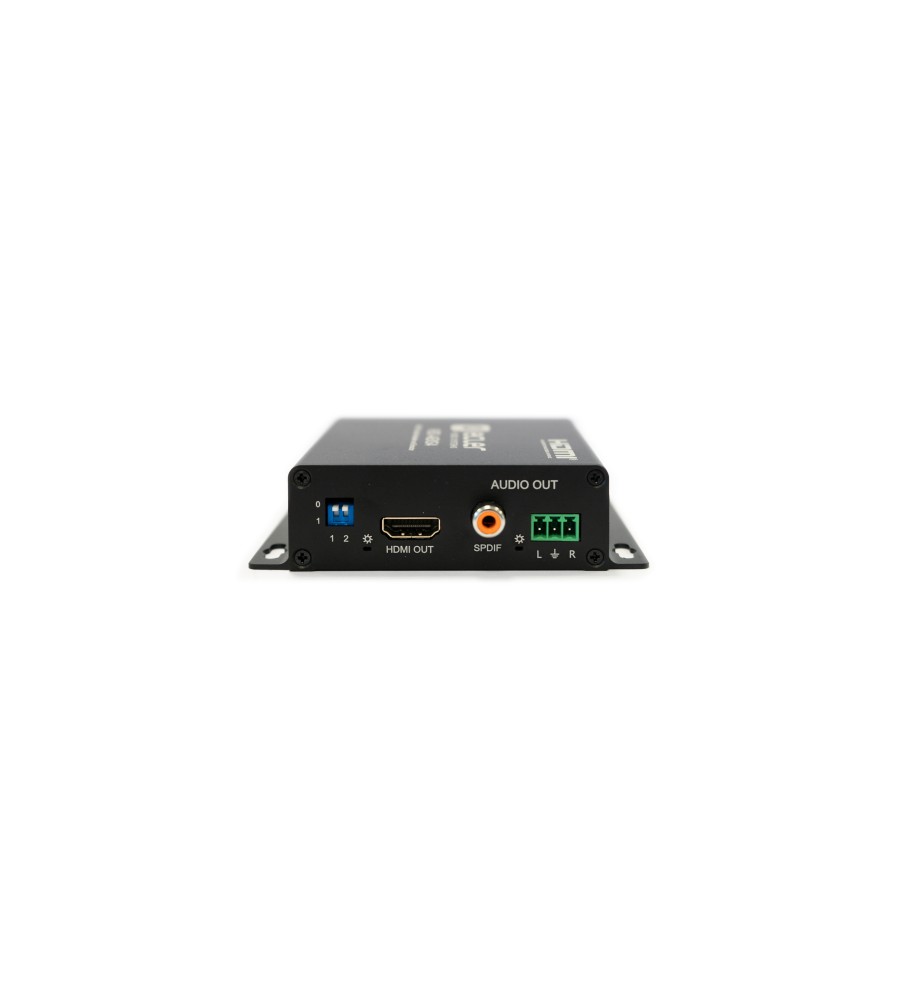

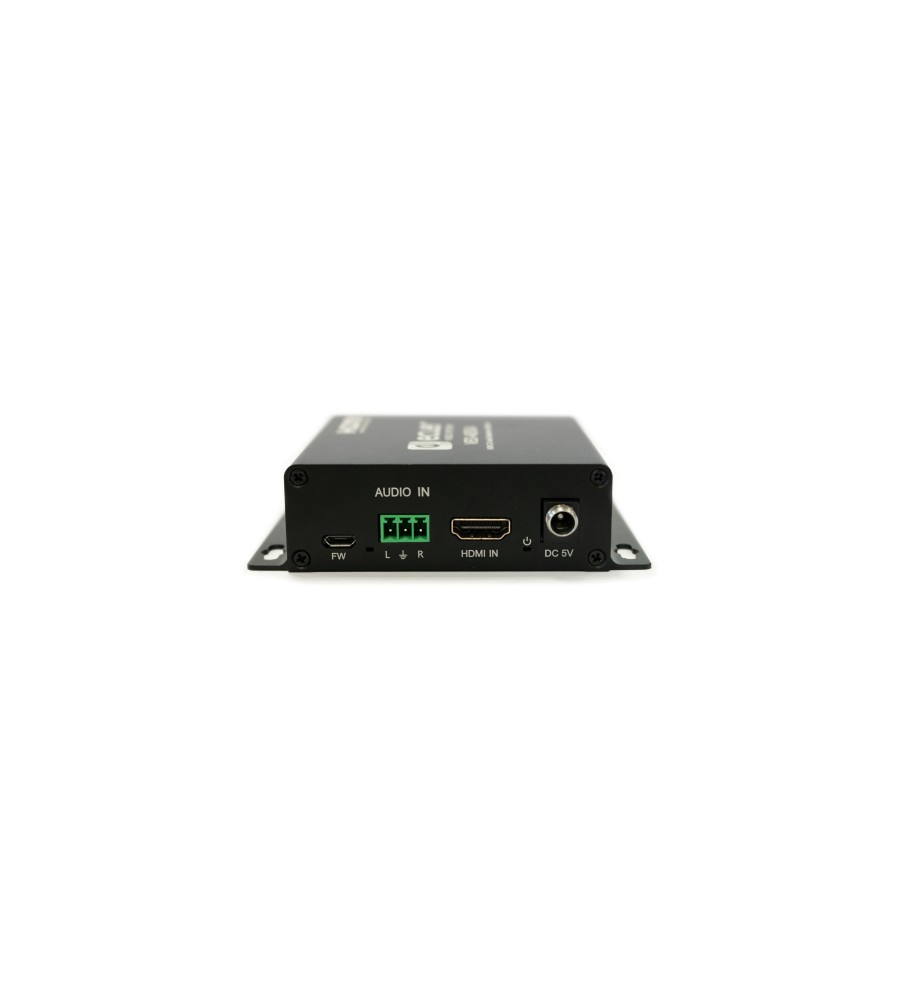

VEO-AEXS4 HDMI 2.0 audio Embedder/De-Embedder

Video Input Connectors

HDMI 2.0

Video Output Connectors

HDMI 2.0

Video Input Resolutions

4096x2160@60Hz, UHD@60Hz, 1080p@60Hz

Video Output Resolutions

4096x2160@60Hz, UHD@60Hz, 1080p@60Hz

Chroma Subsampling

4:4:4 4:2:2

Colour Depth

8-bit, 10-bit, 12-bit

Colour Space

RGB, YCbCr

HDCP

2.0 compliant

HDR

HDR10, Dolby Vision

HDMI Distance

10m with Ecler VEO Cables

Audio Input Connectors

3-pins unbalanced Euroblock

Audio Output Connectors

3-pins unbalanced Euroblock - SPDIF Coaxial

Audio Formats

Dolby True-HD, DTS-HD Master Audio, PCM

Sample Rate

up to 192KHZ

Bit Depth

Up to 24-bit

Frequency Response

20Hz-20KHz (±3dB)

ARC/eARC

No

Control Buttons

EDID selector (2 x dip-switch)

EDID Management

Passtrough, PCM2.0, 5.1

Status Indicators

ON LED, HDMI Active LED, AUDIO Active LED indicators

Pass-through Connectors

HDMI

Power supply

AC 100V - 240V 50/60Hz
Output: DC 5V-1A

AC mains connector

External PSU. Included 4 region power blades

DC mains connector

DC Coaxial

Power consumption

2

Operating temperature

-5 to +40°C (+23 to +104 °F)

Operating humidity

5 - 90% RH (no condensation)

Installation options

Desktop, VEO-RACK19

Included accessories

Power Supply, 2x3pins Euroblock, Warranty Card

Optional accessories

VEO-RACK19

Dimensions

104.4 x 89 x 28.3mm (4.11” x 3.50” x 1.11”)

Weight

155g / 0.342lbs

Shipping dimensions

210 x 60 x 150mm

Shipping weight

0.4 Kg

Chassis material

Metal

Finished colour

Black
