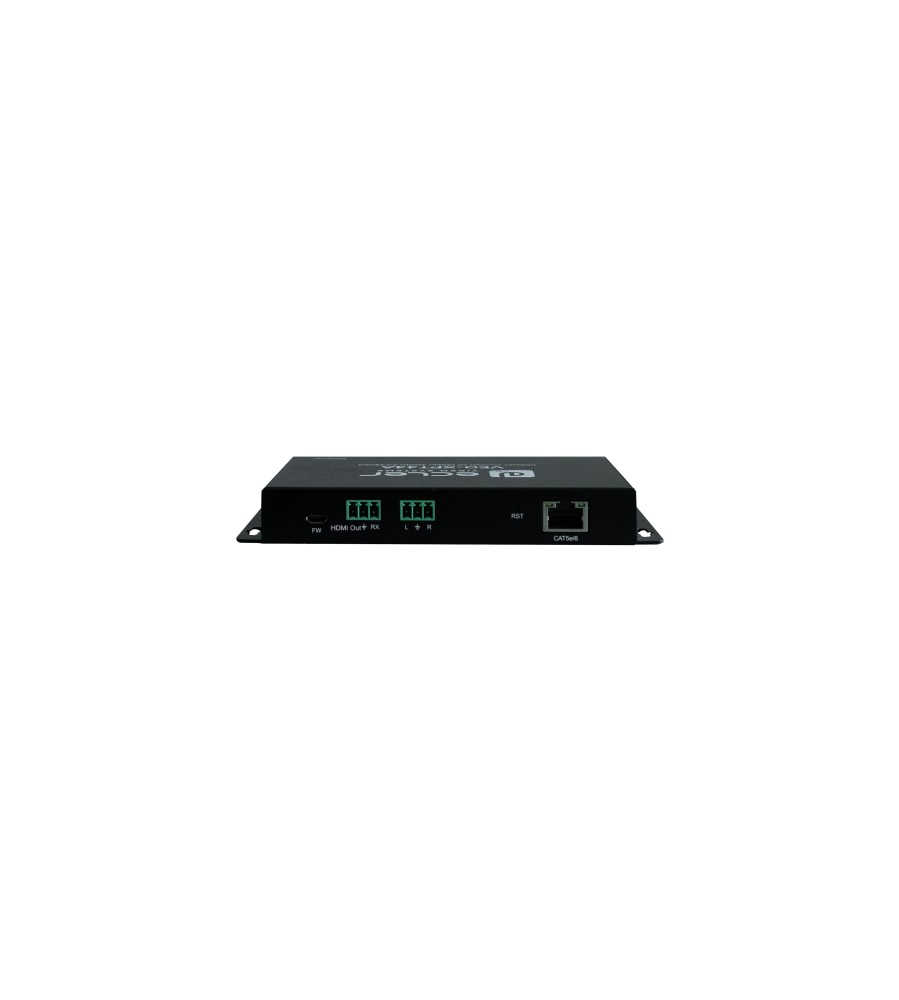

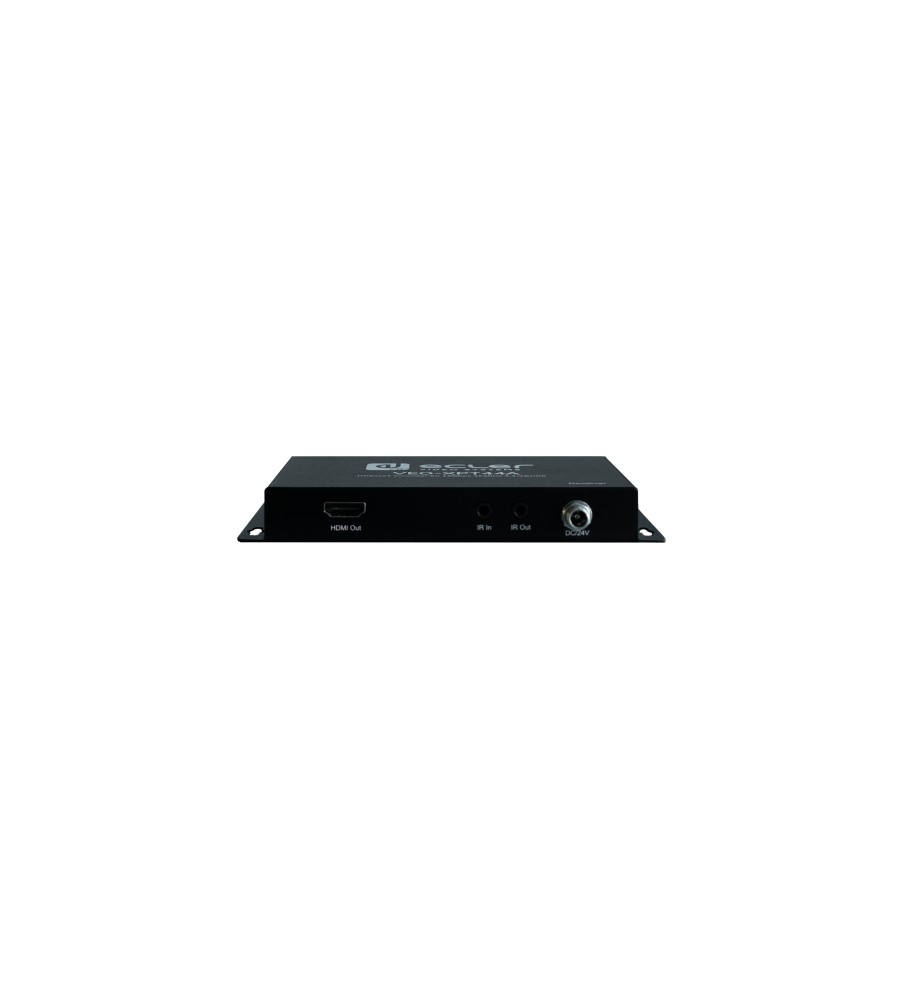

VEO-XPT44A HDMI 2.0 HDbaseT Extender | with Audio Extraction

Κωδικός Προϊόντος: 1.045

Διαθεσιμότητα: Μη διαθέσιμο

VEO-XPT44A HDMI 2.0 HDbaseT Extender | with Audio Extraction

Περιγραφή

VEO-XPT44A is a professional HDBaseT extension kit that includes a transmitter and a receiver. It allows to extend a 4K video signal up to 40m or a Full HD signal up to 70m over a single Cat 5e/6 cable. It supports 4K video signals at 60Hz with 4:4:4 YUV chroma subsampling and HDR10. The transmitter includes a HDMI loop output for monitoring or daisy-chain connection. A stereo unbalanced output on Euroblock connector is available both, on the transmitter and the receiver, for easy integration. In addition, VEO-XPT44A includes bidirectional PoH feature so the transmitter can be powered by the receiver and vice versa. With a reduced form factor and the added features of RS-232 and bidirectional IR, this is the perfect solution for any applications where AV and control extensions are required.

Complete HDBaseT extender kit, no settings needed

Supports up to 4K@60hz, YUV, 4:4:4 resolution

Transmission distance reaches up to 70 meters when Full HD and 40 meters when 4Ksignal

HDMI loop out on Transmitter

Bi-directional IR and RS-232 pass-through

Bi-directional POH (Receiver powered by TRANSMITTER or vice versa)

PCM 2.0 Audio de-embedding on TRANSMITTER and RECEIVER

HDCP2.2/1.4 compliant

Support for HDR10 and 3D

ESD protection

Video Input Connectors	Tx: HDMI Type A Female, 2.0, 18 Gbps
Video Output Connectors	HDMI Type A Female, 2.0, 18 Gbps (loop output on Tx)
Video Input Resolutions	Up to 4Kx2K@60Hz
Video Output Resolutions	Up to 4Kx2K@60Hz
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0
Colour Depth	8-bit, 10-bit, 12-bit, 16-bit only @4K30
Colour Space	RGB, YCbCr
HDCP	2.2/1.4 compliant
HDR	HDR10
Scaling Features	No
HDMI Distance	up to 10 meters / 33 ft with Ecler VEO cables
Audio Output Connectors	3pin Euroblock for Stereo Unbalanced Output (PCM 2.0)
Audio Formats	Dolby True-HD, DTS-HD Master Audio, PCM
Sample Rate	32 KHz, 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176.4 KHz, 192 KHz
Bit Depth	Up to 24-bit
Frequency Response	20Hz–20KHz, ±3dB
ARC/eARC	No
Control Connectors	Jack 3.5mm, 3-pin Euroblock, RJ45
Control Protocols	IR, RS-232
Control Buttons	EDID mode selector (Tx only), Reset button,
EDID Management	3-positions EDID mode selector
Status Indicators	Green LED: HDbaseT connection OK Orange LED flashing: HDCP negotiation Orange LED fixed: HDCP encryption
Pass-through Connectors	Jack 3.5mm, 3-pin Euroblock
Pass-through Protocols	Bi-directional IR and RS-232
Transmission Distance	CAT5e/6 @ 4K up to 35 m / up to 115 feet CAT6a/7 @ 4K up to 40 m/ up to 130 feet CAT5e/6 @ 1080p up to 60 m / up to 197 feet CAT6a/7 @ 1080p up to 70 m / up to 230 feet
Power supply	PoH bidirectional; External: AC 100V - 240V @ 50-60Hz Output: DC 24V-1A
DC mains connector	DC 24V connector
Power consumption	12W Maximum
Operating temperature	Min: -10°C ; 14°F Max: 50°C ; 122°F
Operating humidity	5 - 90% RH (no condensation)
Installation options	Desktop, VEO-RACK19 - TBC
Included accessories	24VDC International Power Supply (One PSU for both units), 2x IR Blaster unit, 2x IR Receiver unit, 4x Euroblock plugs for RS-232 and audio cable termination
Dimensions	154.4 x 78.3 x 20 mm / 6.08 x 3.08 x 0.79 in. (WxHxD)
Weight	0.688 kg / 1.52 lb (Pair)
Shipping dimensions	170 x 90 x 200 mm / 6.69 x 3.54 x 7.87 in. (WxHxD)
