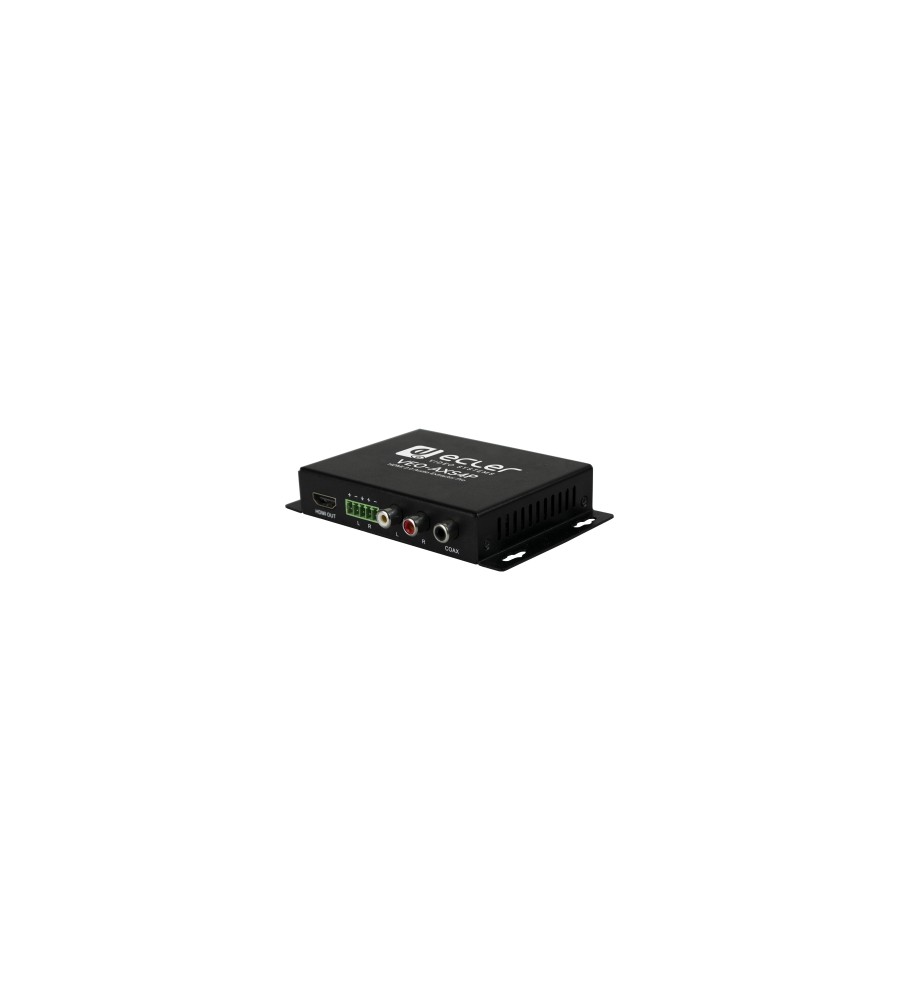

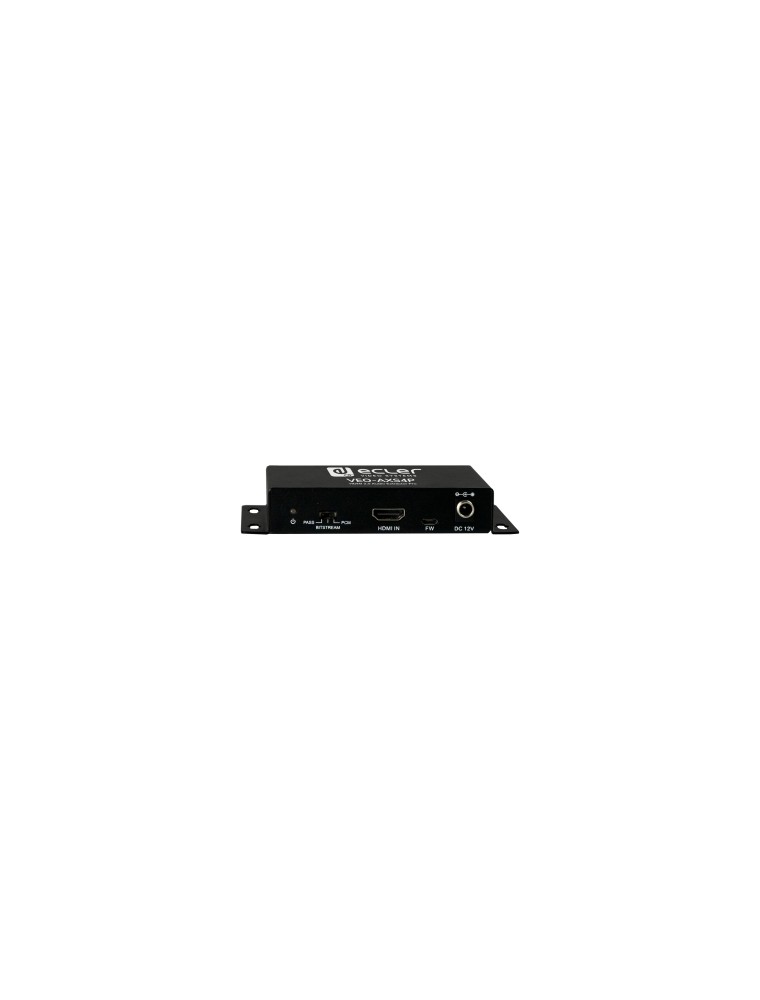

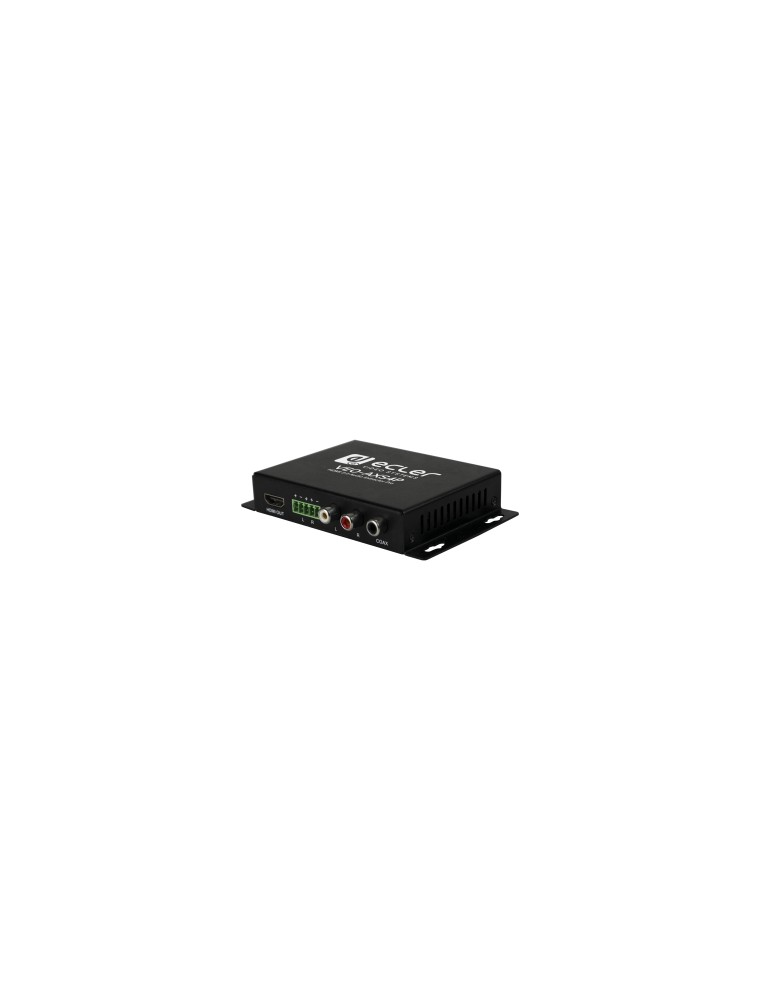

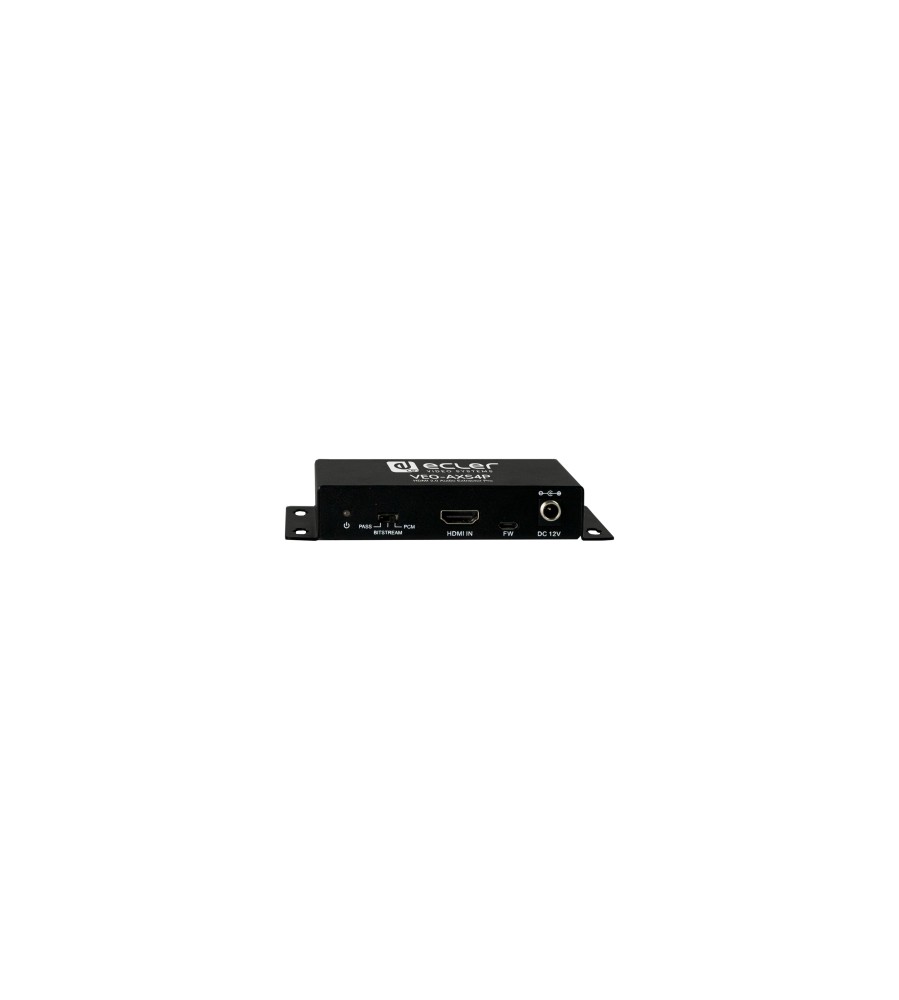

VEO-AXS4P HDMI 2.0 audio Extractor

Κωδικός Προϊόντος: 1.045

Διαθεσιμότητα: Μη διαθέσιμο

Περιγραφή

VEO-AXS4P is a professional HDMI audio extractor that allows to de-embed audio from a HDMI signal, including audio from 4K sources. VEO-AXS4P provides uncompressed LPCM analogue stereo signal through RCA and Phoenix balanced output as well as Dolby Digital and DTS multichannel signals through the coaxial S/PDIF digital output.

Audio EDID Settings: Auto/2.0 CH/5.1CH

Extracts the digital HDMI audio signal from the HDMI input to 2channel analog stereo output or to 5.1 S/PDIF output

Signal amplification and equalization to extend HDMI inputand output ports up to 10 meters (33 feet)

Supports LPCM, Dolby Digital and DTS

Supports resolution up to 4K @ 60Hz YUV 4:4:4

Supports deep color up to 36bit

Supports sample rate up to 192 KHz and resolutions up to 24 bit

HDCP2.2/1.4 Compliant

Supports CEC

Video Input Connectors	HDMI Type A Female, 2.0, 18 Gbps
Video Output Connectors	HDMI Type A Female, 2.0, 18 Gbps
Video Input Resolutions	up to 4k @ 60Hz
Video Output Resolutions	up to 4k @ 60Hz
Chroma Subsampling	4:4:4
Colour Depth	8-bit, 10-bit, 12-bit
Colour Space	RGB, YCbCr
HDCP	2.2/1.4 Compliant
HDR	HDR10
HDMI Distance	up to 10 meters with Ecler VEO cables

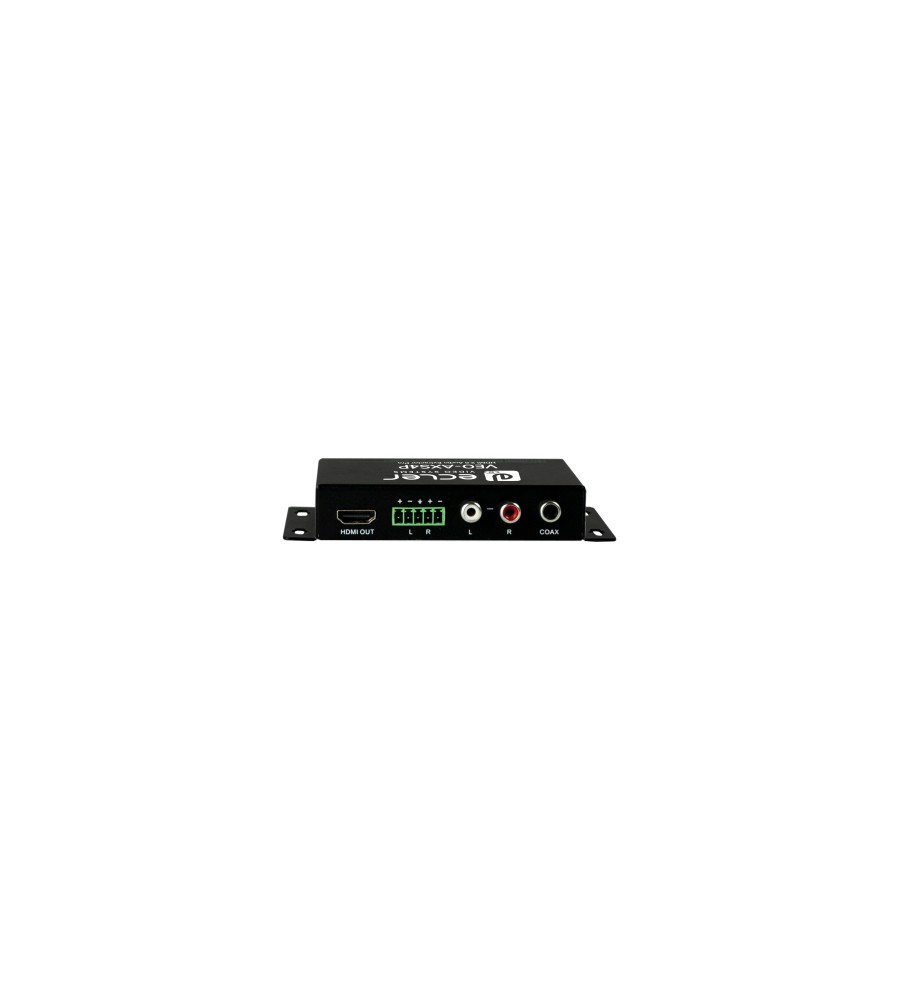

Audio Output Connectors	Euroblock 5-pin Balanced output, RCA Unbalanced stereo output, S/PDIF Coaxial output
Audio Formats	LPCM 2.0, LPCM 5.1, Dolby Digital, DTS-HD Master Audio, Dolby true-HD
Sample Rate	32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz
Bit Depth	Support of 24-bit
Control Buttons	1 x EDID selector
EDID Management	Auto / 2.0 CH / 5.1CH
Status Indicators	Power/HDMI status indicator
Pass-through Connectors	HDMI
Pass-through Protocols	CEC
Power supply	AC 100V - 240V 50/60Hz Output: DC 12V - 1A
DC mains connector	DC 12V connector
Power consumption	3W Maximum
Operating temperature	Min: -10°C ; 14°F Max: 55°C ; 131°F
Operating humidity	10 to 90% non-condensing
Installation options	Desktop, VEO-RACK19
Included accessories	1 x International DC 5V Power Supply - TBC
Dimensions	21.5 x 77 x 129 mm / 0.85 x 3.03 x 5.08 in. (WxHxD)
Weight	0.244 kg / 0.538 lb
Shipping dimensions	195 x 65 x 145 mm / 7.68 x 2.56 x 5.71 in. (WxHxD)
Shipping weight	0.6 kg / 1.32 lb
Chassis material	Metal
Finished colour	Black
