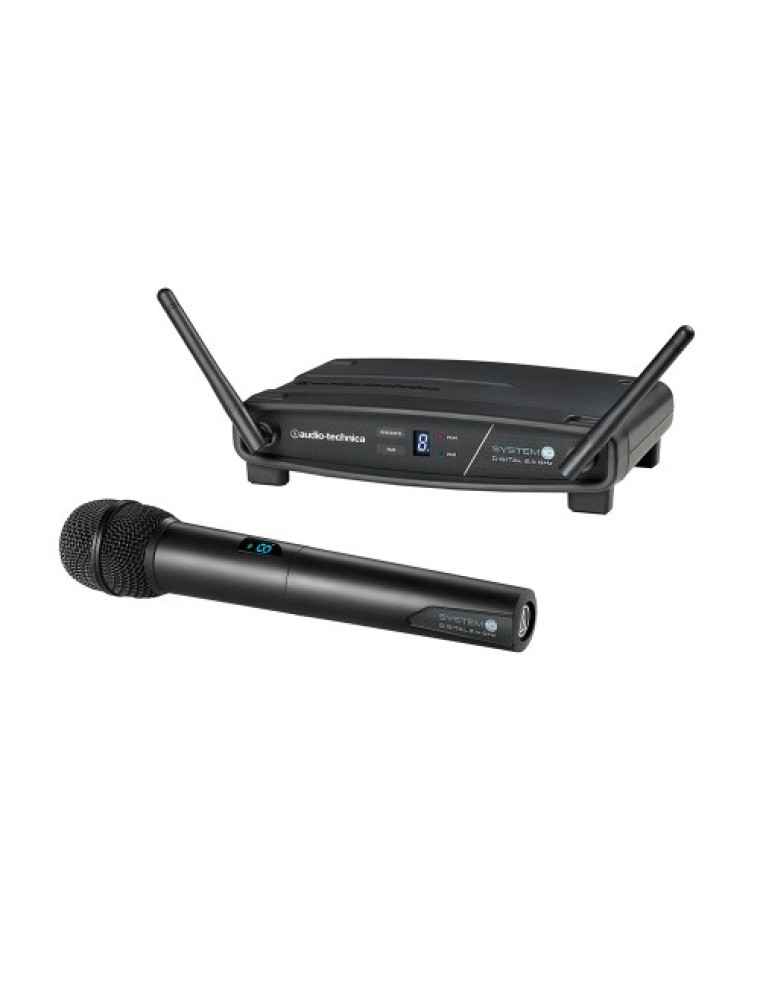

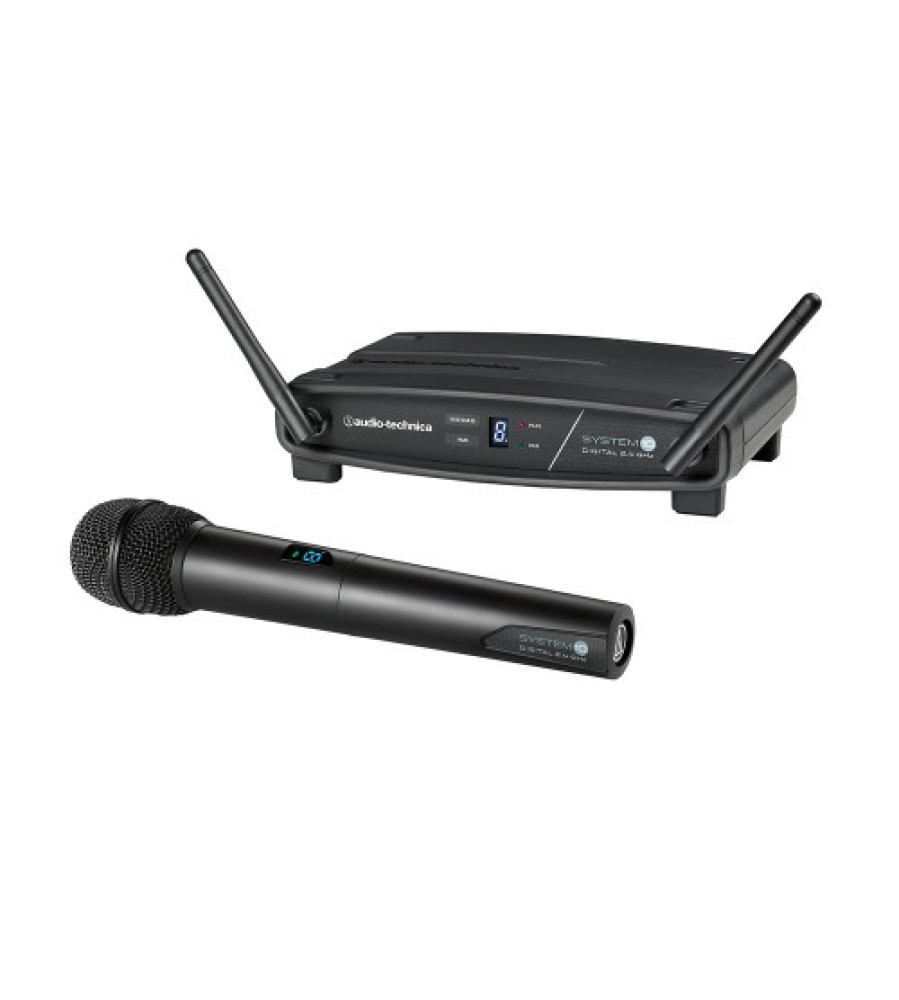

ATW-1102

Overall System

Operating Frequencies 2.4 GHz ISM band (2400 to 2483.5 MHz)
Frequency Response
20 Hz to 20 kHz
Depending on microphone type

Operating Range
30 m (100') typical
Open range environment with no interfering signals

Total Harmonic Distortion
<0.05% typical
Operating Temperature Range
0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures

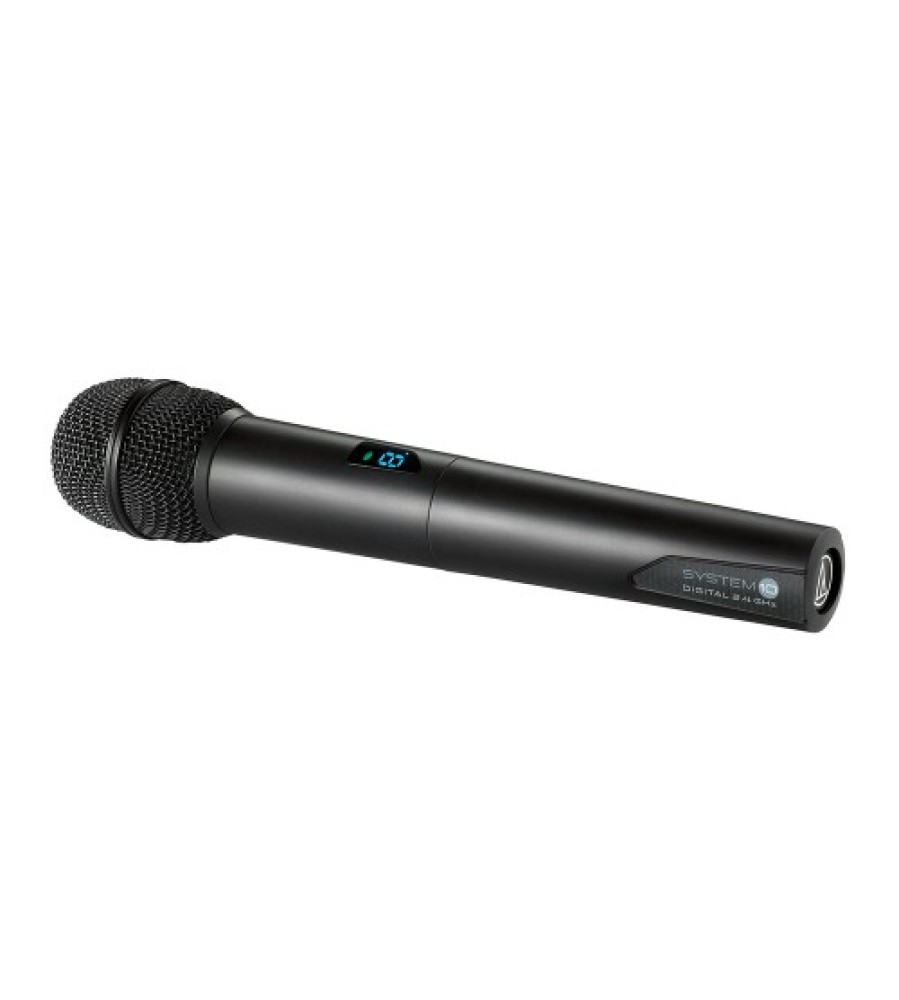

Handheld Transmitter

RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Battery Type
Two 1.5V AA
not included
Battery Life
>7 hours (alkaline)
Depending on battery type and use pattern
Dimensions
254.8 mm (10.03") long,
50.0 mm (1.97") diameter
Net Weight
280 grams (9.9 oz)
without batteries
Accessories Included
AT8456a Quiet-Flex™ stand clamp

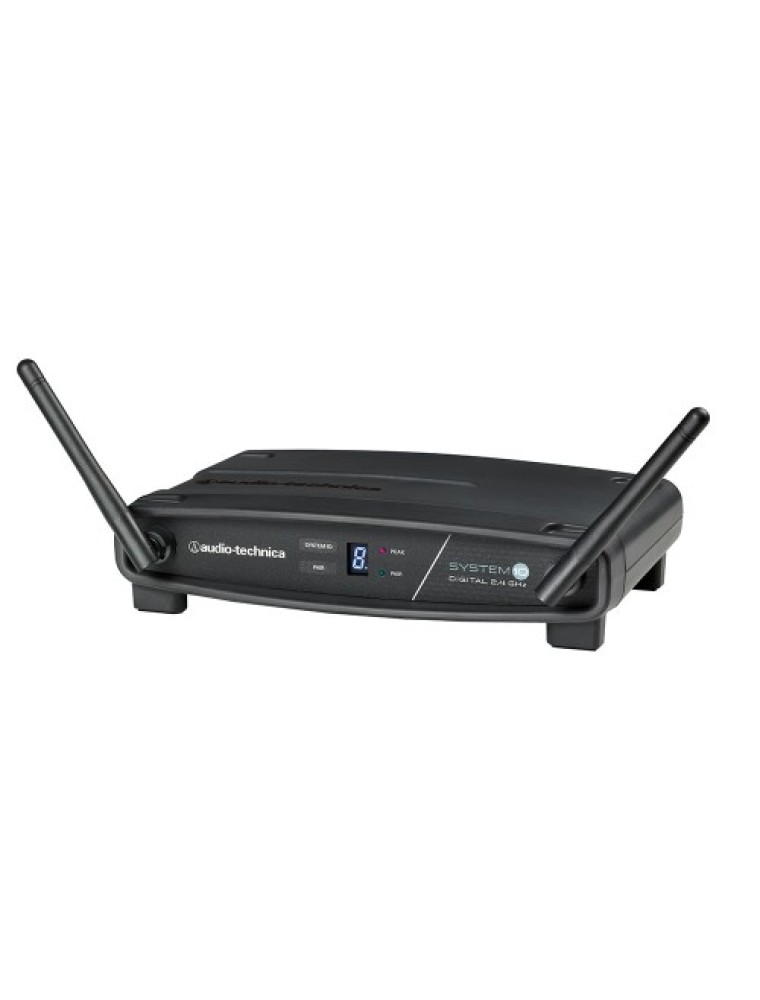

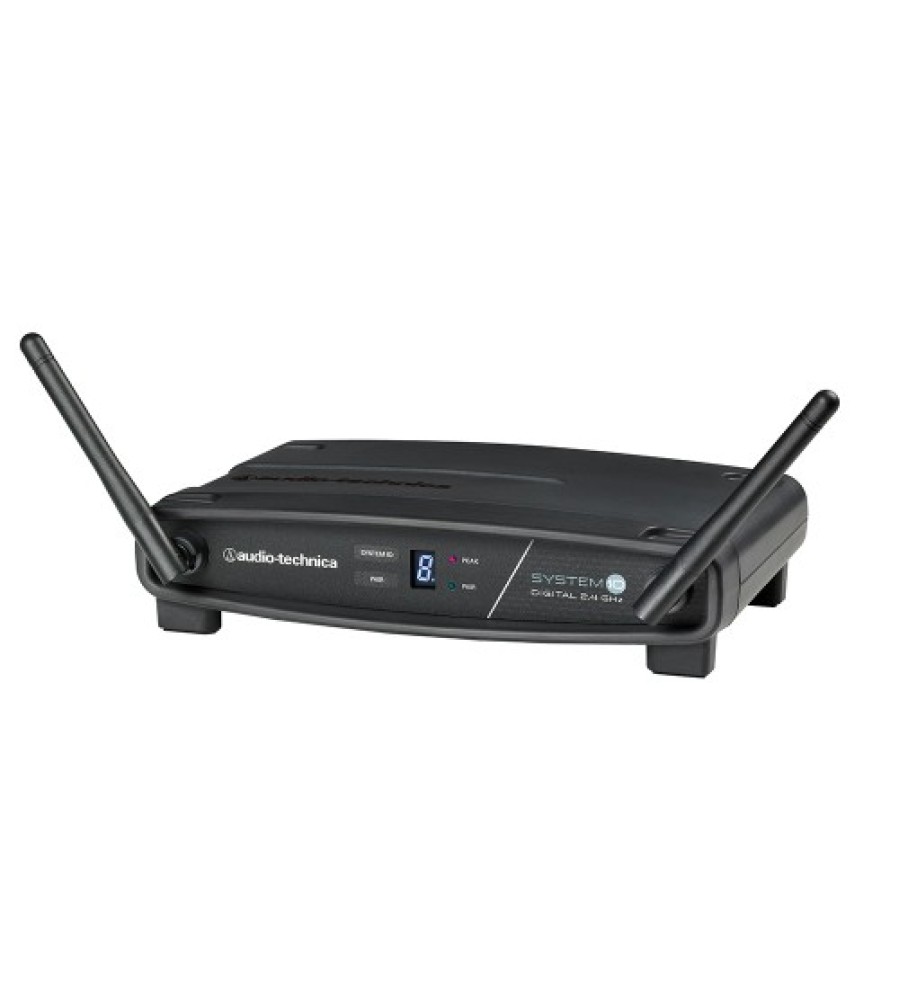

Receiver

Receiving System Diversity (frequency/time/space)
Maximum Output Level
XLR, balanced: 0 dBV
1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply
100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Dimensions
190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
Weight 290 grams (10.2 oz)
Accessories Included Power supply
