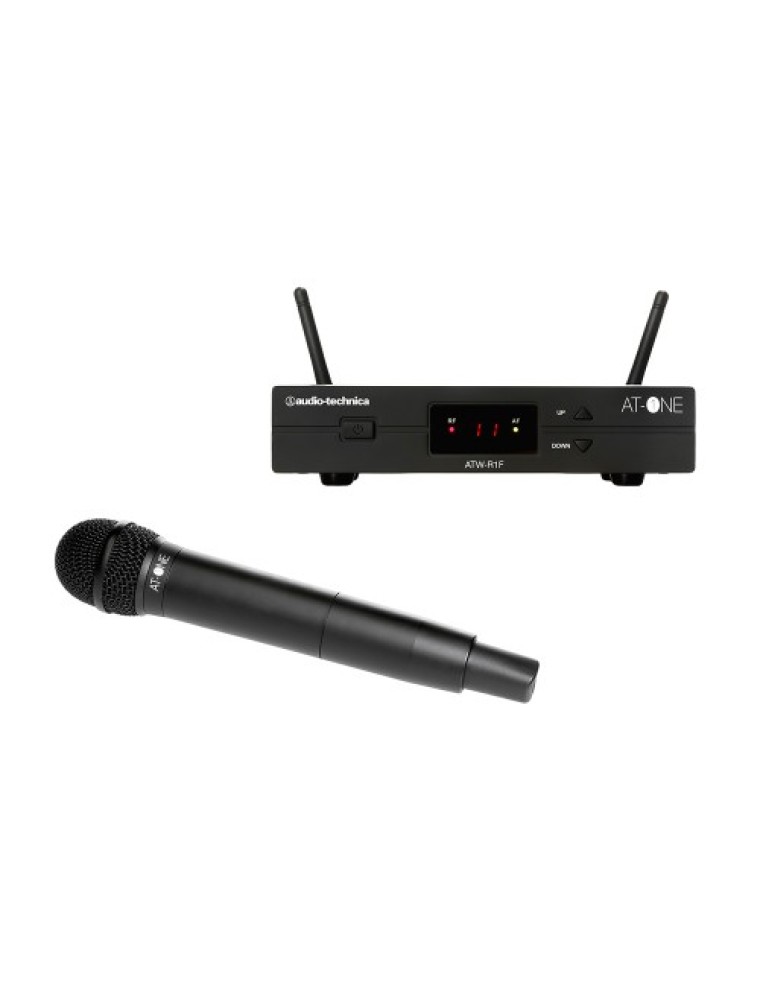

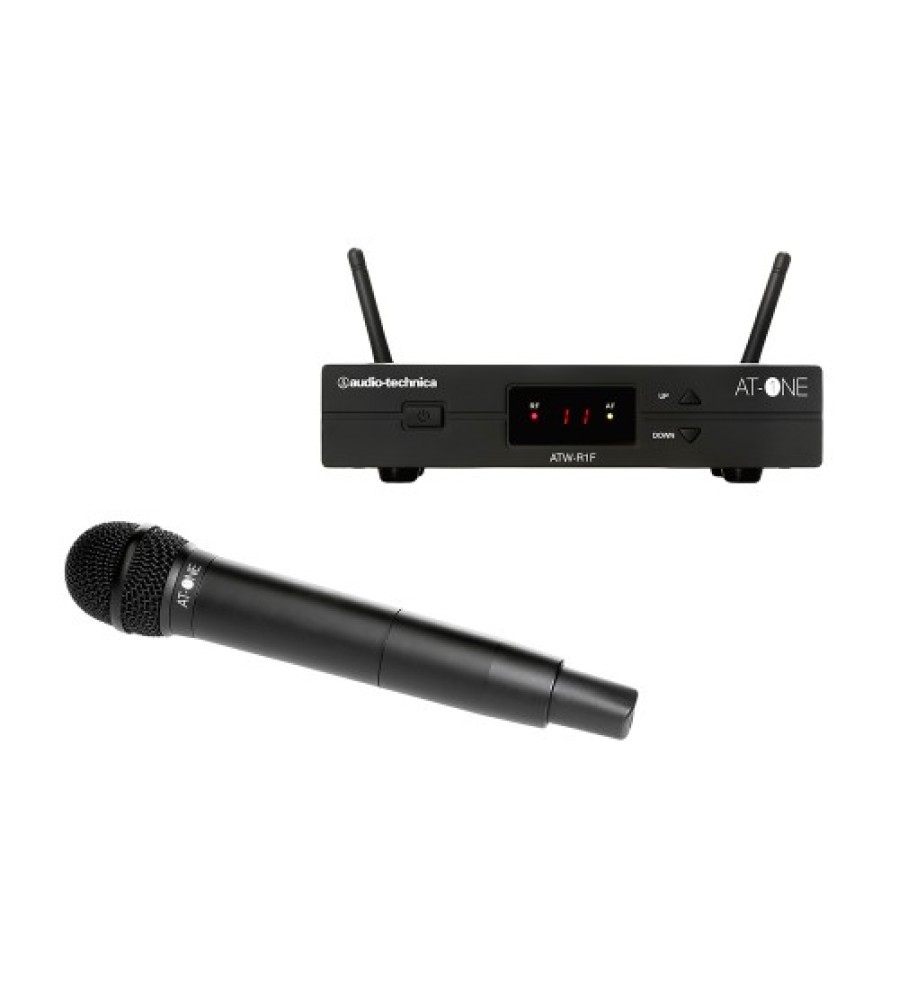

AUDIO TECHNICA ATW-13F

Overall System
Operating Frequencies 824 - 831 MHz, 863 - 865 MHz
Number Of Channels 2 x 4 frequencies
Frequency Stability +/- 0.005%, Phase lock loop frequency control
Modulation Mode FM
Frequency Response 60 Hz - 16 kHz
Operating Range 60m, typical

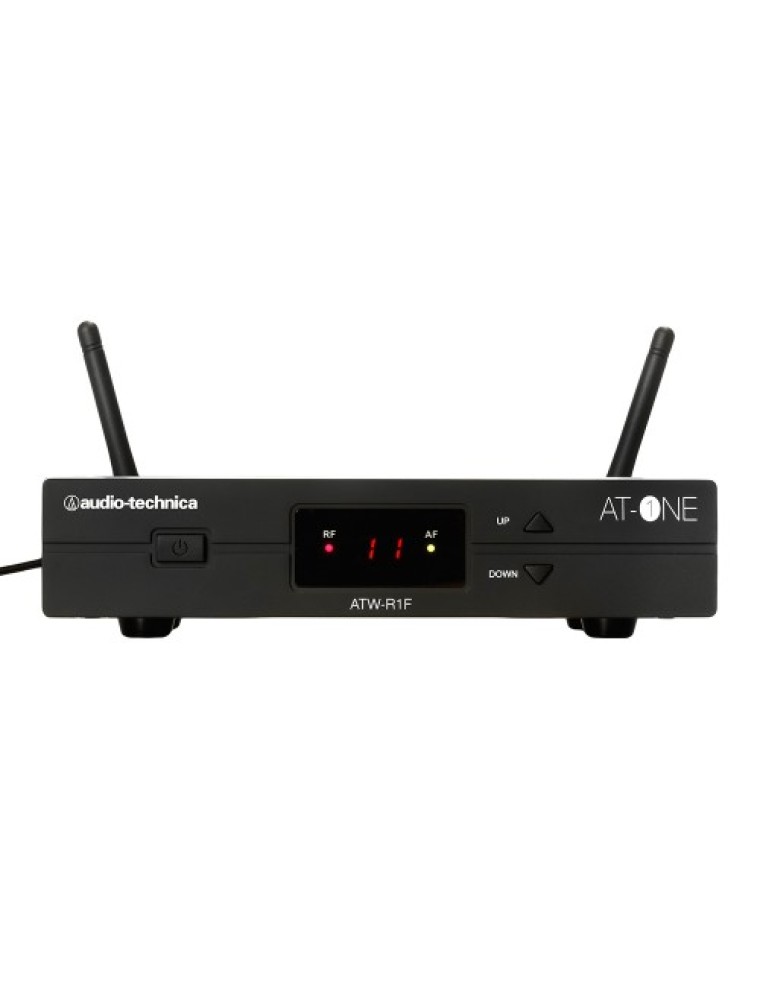

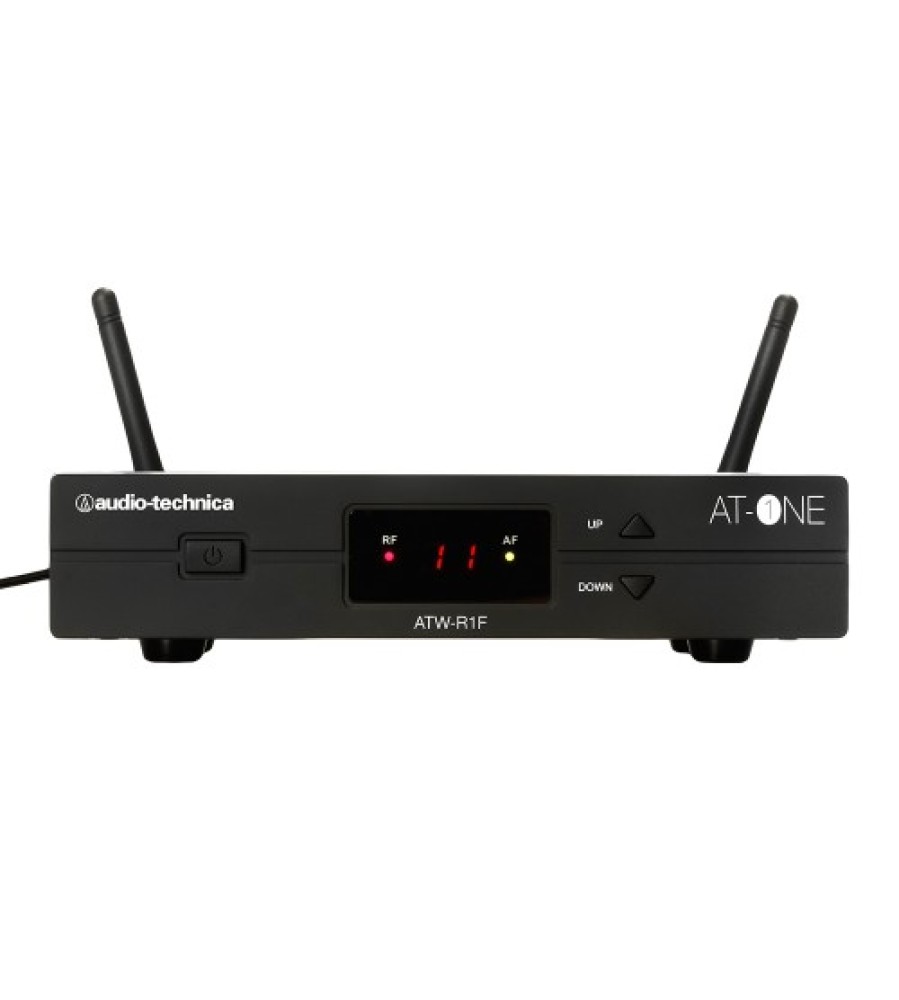

Receiver
Receiving System Antenna switching diversity
Image Rejection 55dB minimum
Dynamic Range HH: 108 dB, BP 103 dB (@ max deviation)
Sensitivity 10dBµV (S/N 60dB @ 20 kHz deviation)
Total Harmonic Distortion <1% - 20 kHz deviation @ 1 kHz
Audio Output Unbalanced -2dBV
Audio Output Balanced 4dBV
Output Connectors (Microphone) Balanced: XLRM-type
Output Connectors (Instrument) Unbalanced: 6.3 mm mono jack
Maximum Output Level Mic / Line (0 / -20dB)
Antenna Input BNC type, 50 - BIAS voltage 12V DC 100mA each
Dimensions 200 mm x 42 mm x 122 mm (W x H x D)
Weight 418 g without accessories
Accessories Included AC Adapter, Antennas, Rack mount adapter, protective carrying case

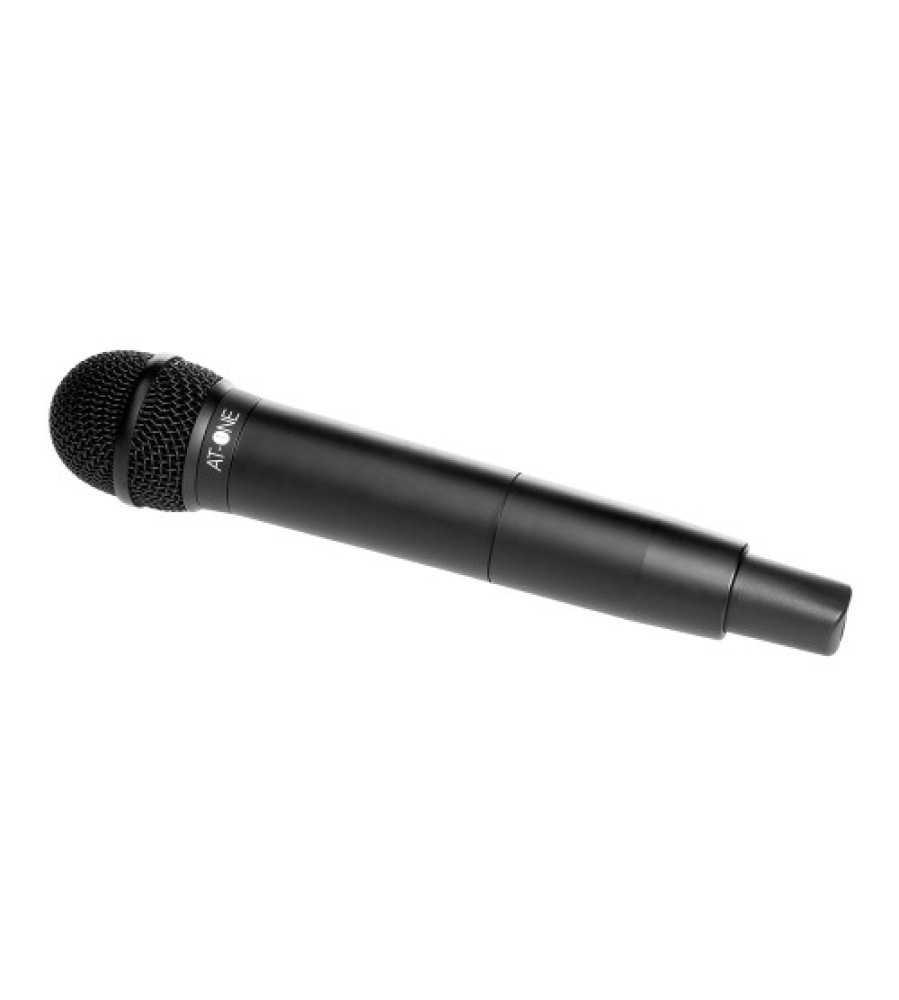

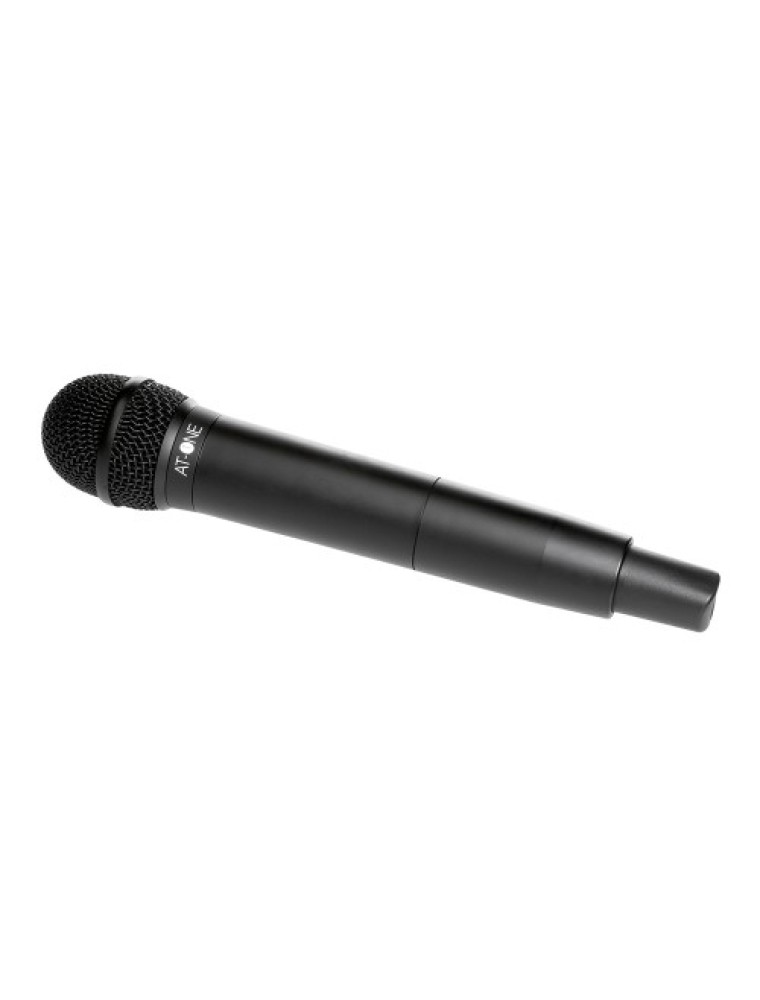

Handheld Transmitter
RF Power Output 10 mW
Spurious Emissions Following national regulations
Microphone Element Condenser Cardioid
Battery Type Two 1.5V AA alkaline
Battery Life 10 hours - depending on battery type and use pattern
Dimensions 268 mm long - 52 mm (diameter)
Accessories Included Stand clamp
