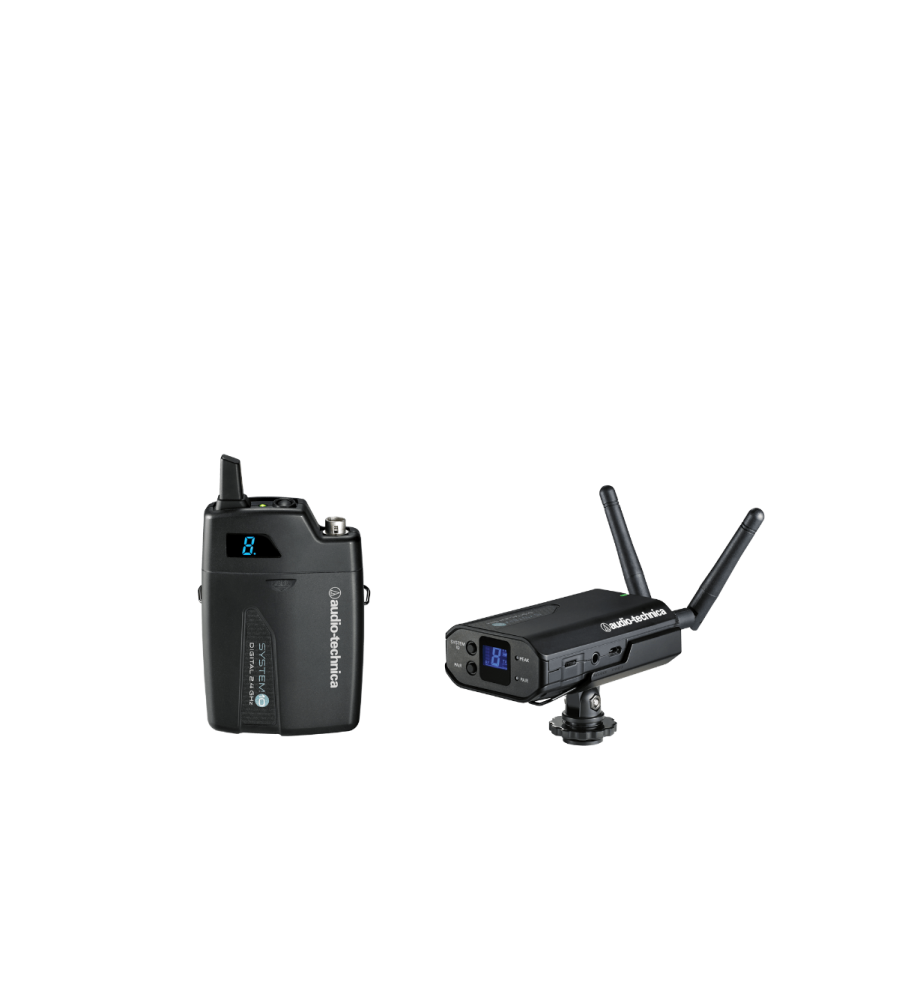

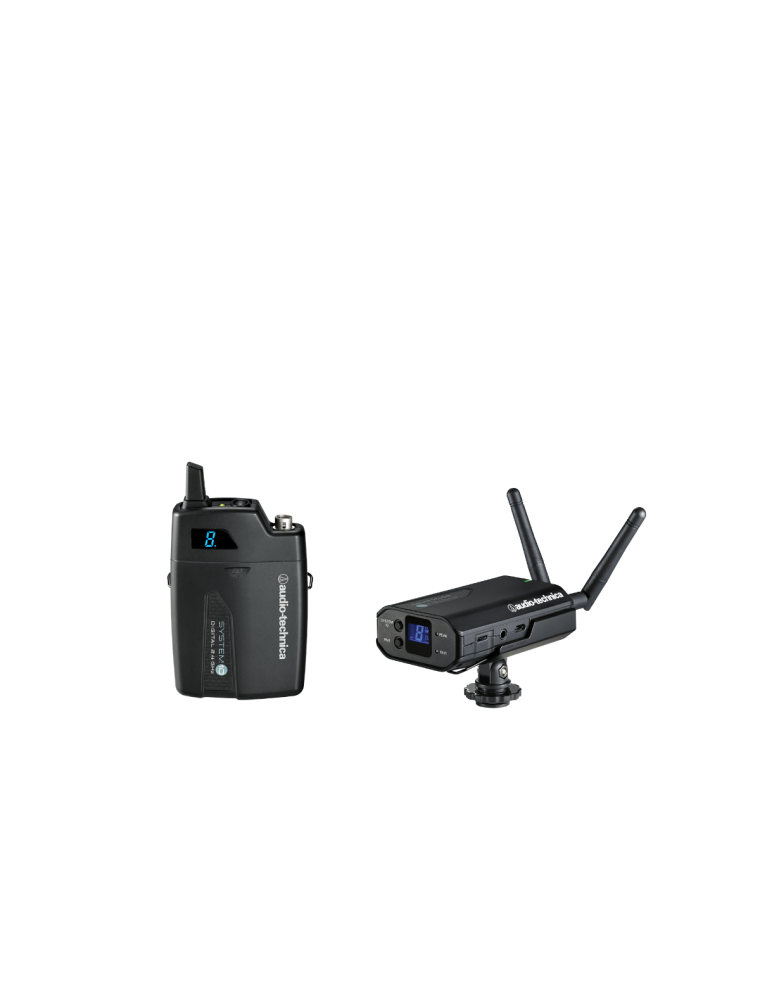

ATW-1701

Overall System
Operating Frequencies 2.4 GHz ISM band
Frequency Response 20 Hz to 20 kHz (Depending on microphone type)
Operating Range 30 m (100') radius, 60 m (200') diameter typical (Open range environment with no interfering signals)
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Temperature Range 0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures

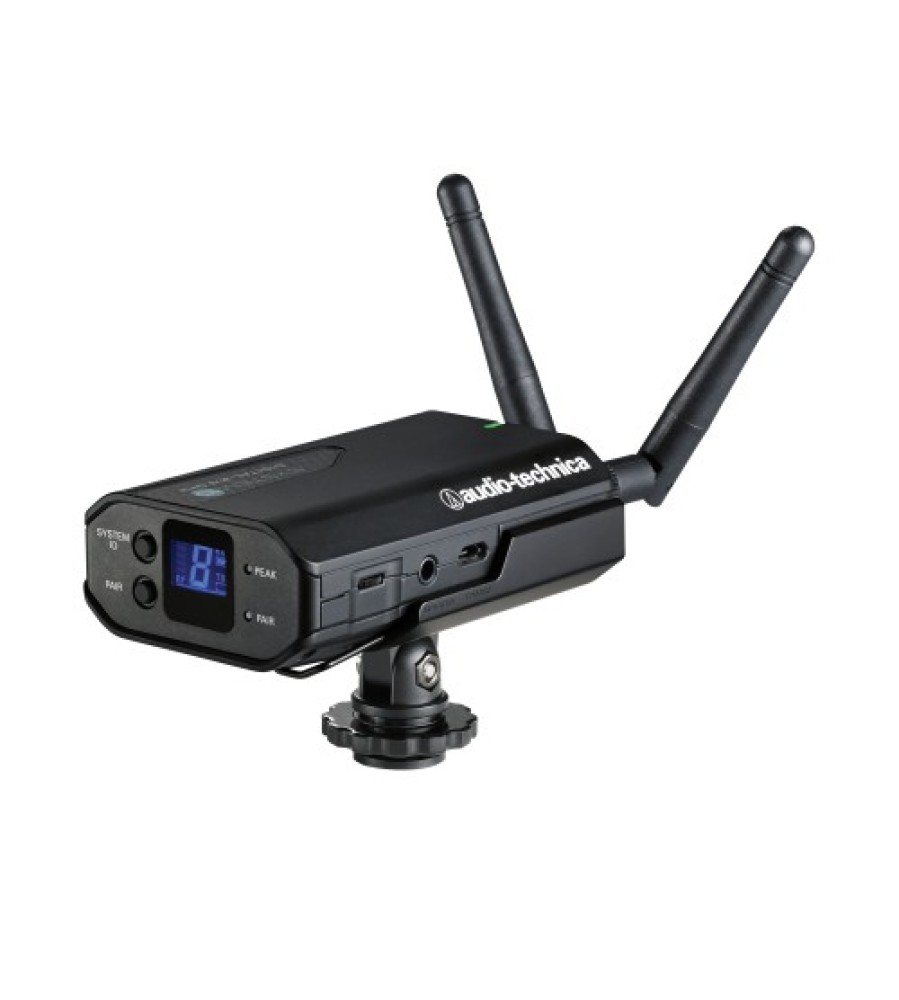

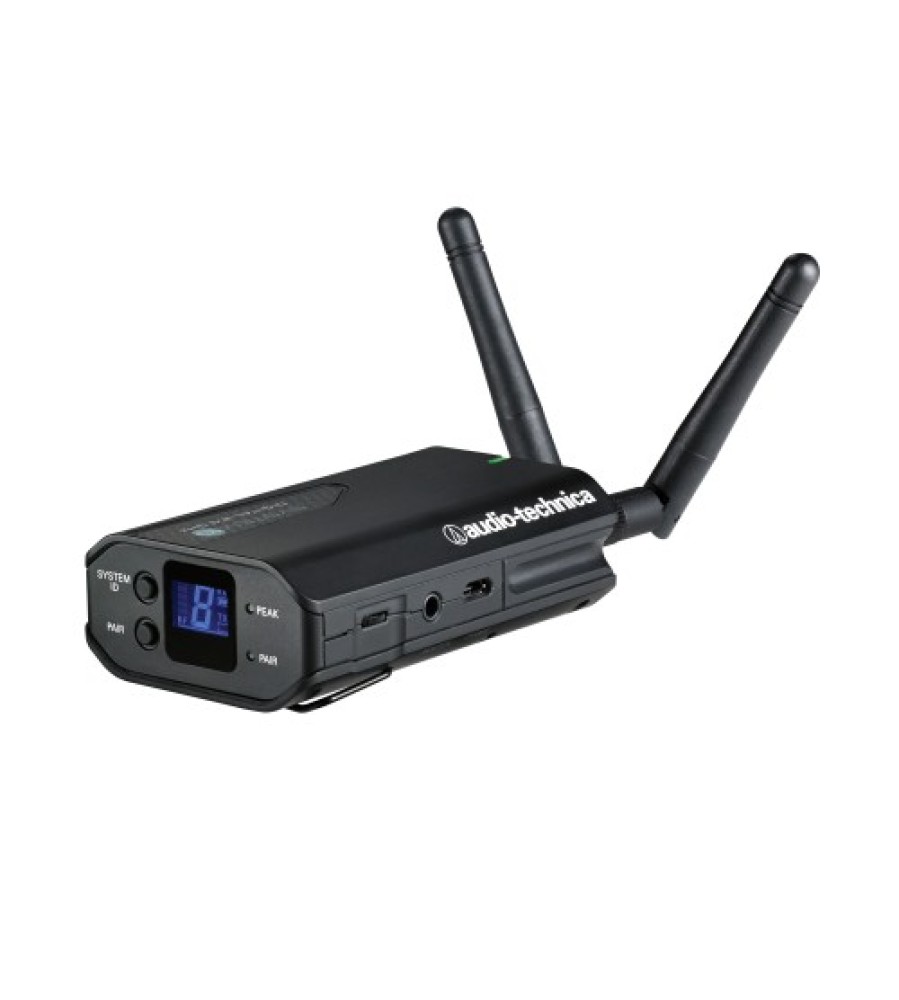

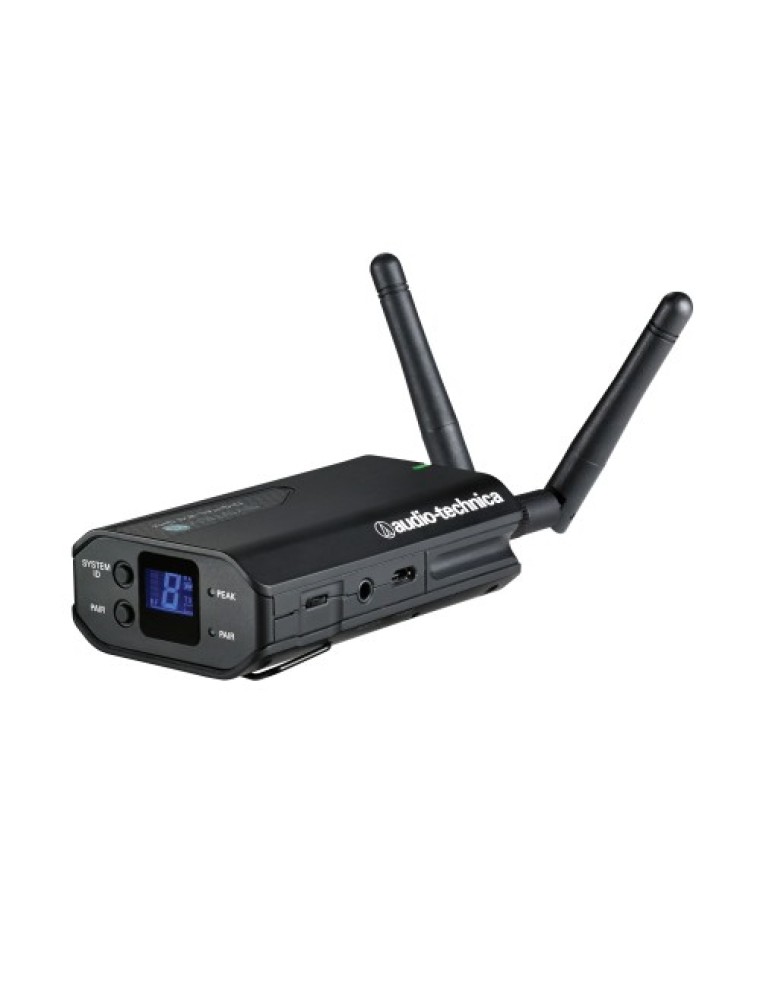

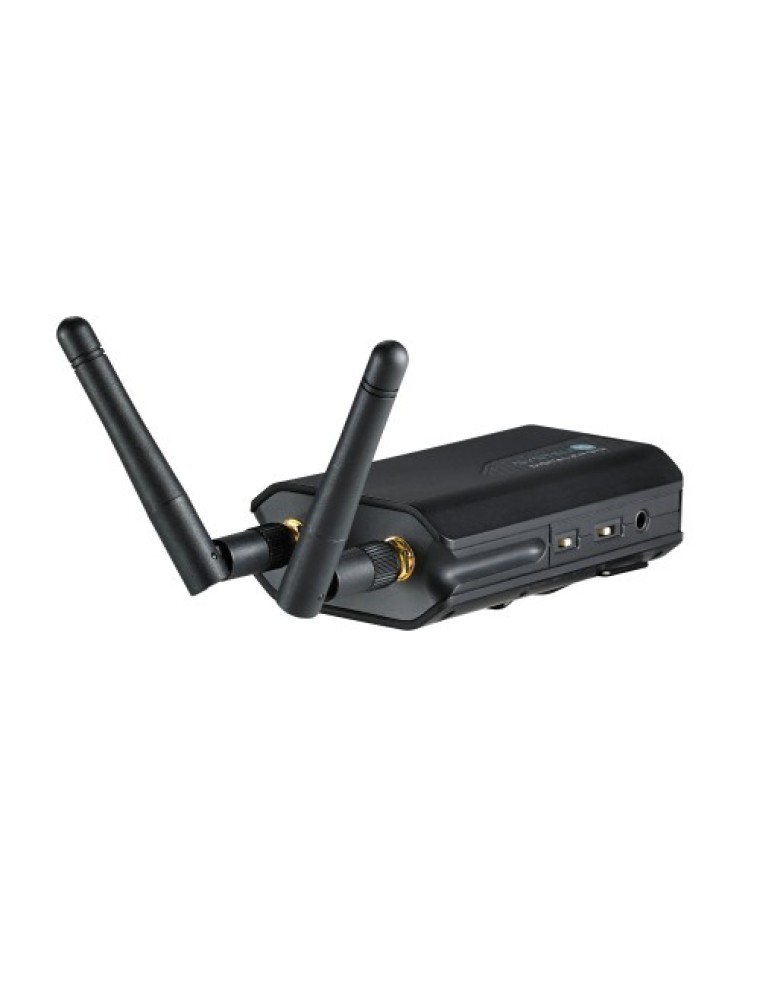

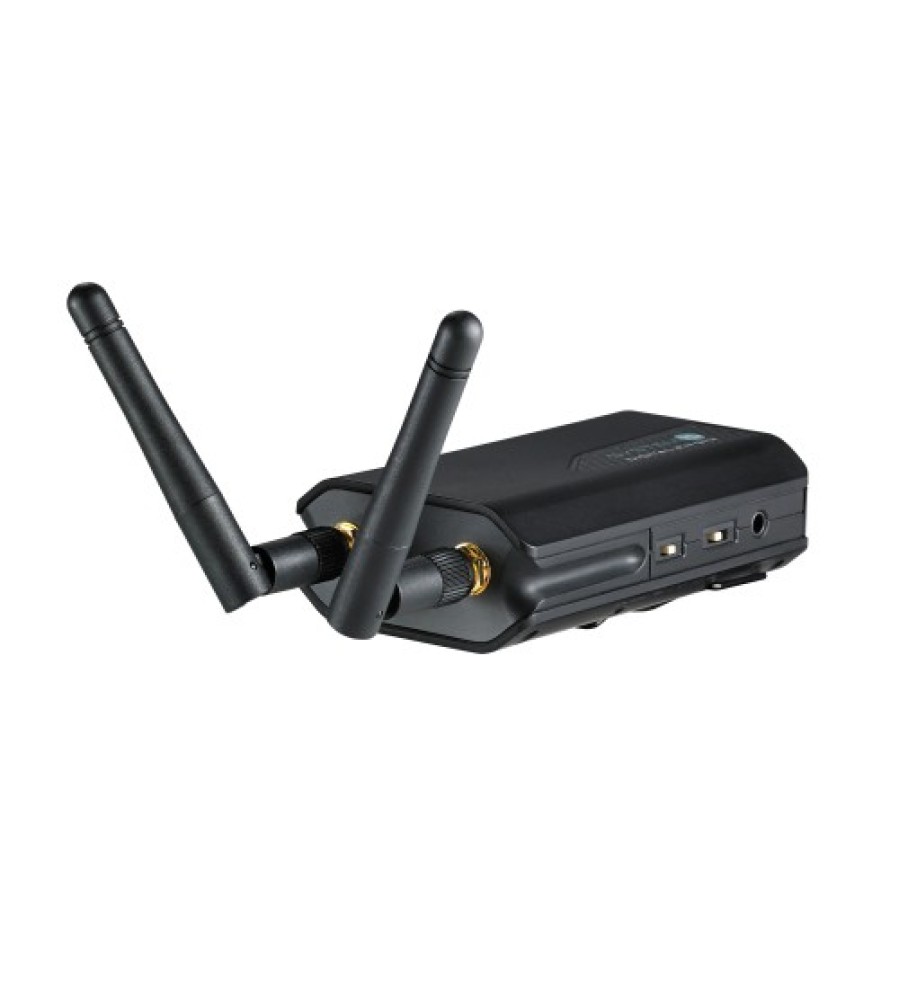

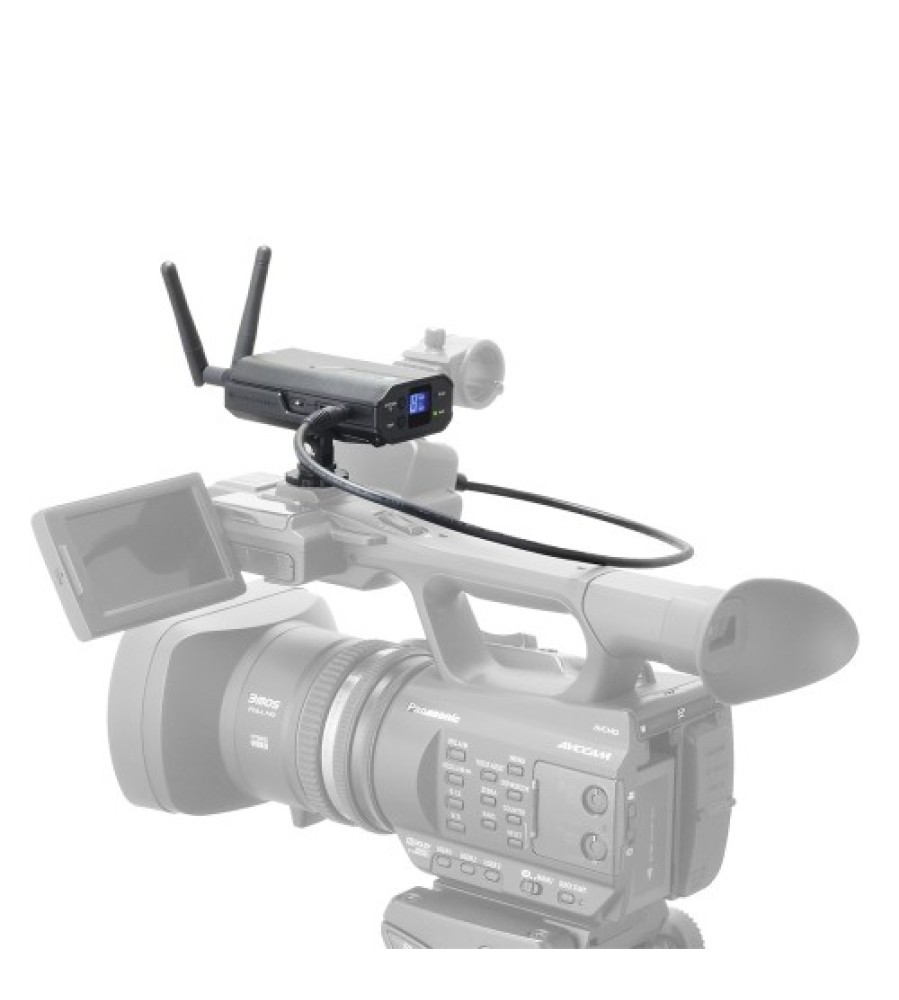

Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level 3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
Power Supply 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
Battery Type Internal Battery: 3.7V rechargeable Li-ion battery
Battery Current/Life 12 hours (Depending on environmental conditions)
Battery Charging Time: 4 hours 30 minutes (Depending on environmental conditions)
Charging Temperature Range: 5° C to +35° C (41° F to 95° F)
Dimensions 56.0 mm (2.20") W x 91.4 mm (3.60") H x 27.8 mm (1.09") D
Weight 105g

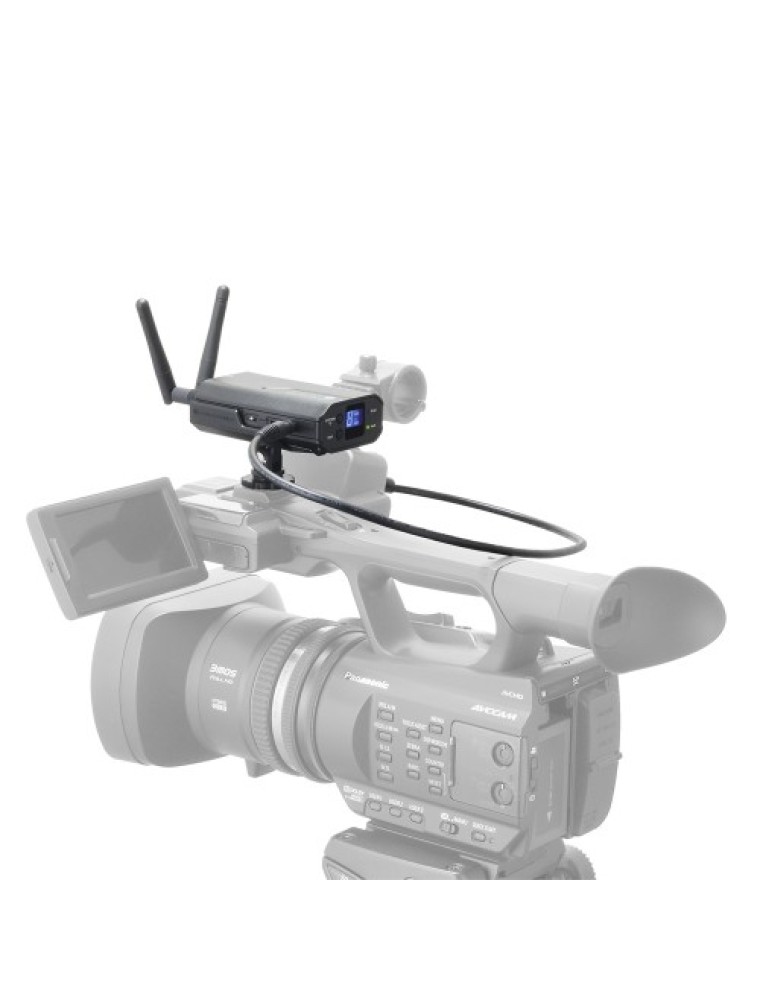

Accessories Included Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable

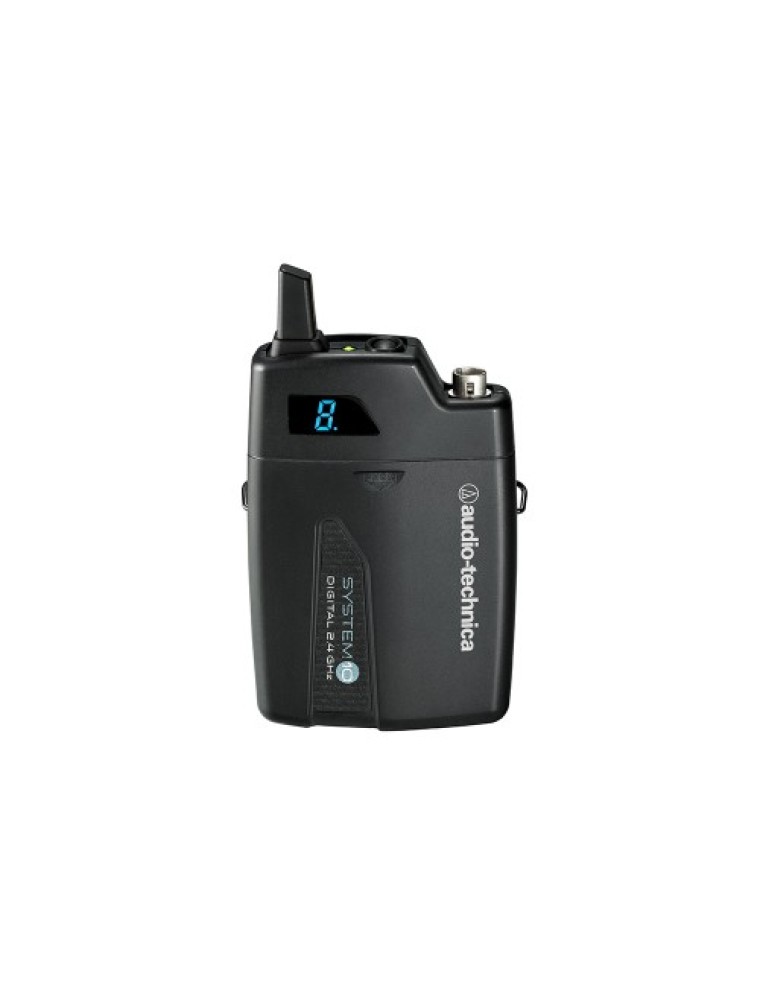

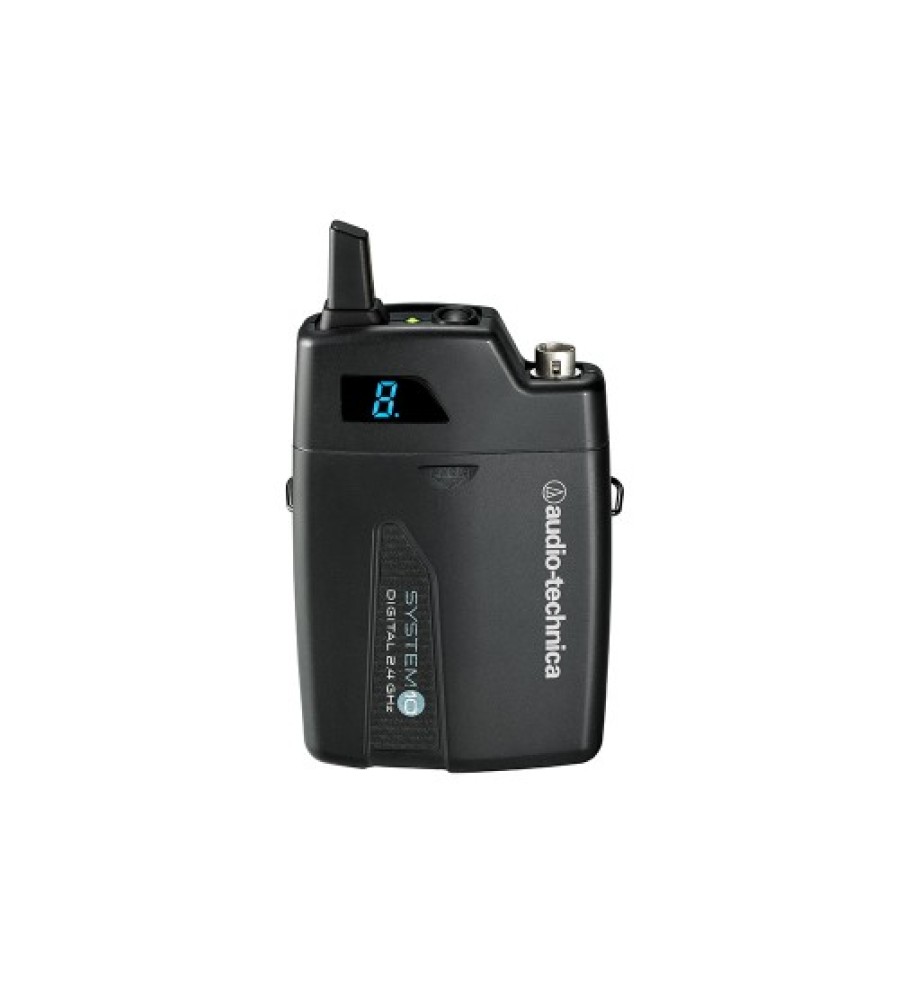

Body Pack
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Input Connections
Four-pin Locking Connector
Pin 1: GND,
Pin 2: INST INPUT,
Pin 3: MIC INPUT,
Pin 4: DC BIAS +9V
Battery Type Two 1.5V AA not included
Battery Life >7 hours (alkaline) (Depending on battery type and use pattern)
Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight 100g without batteries
