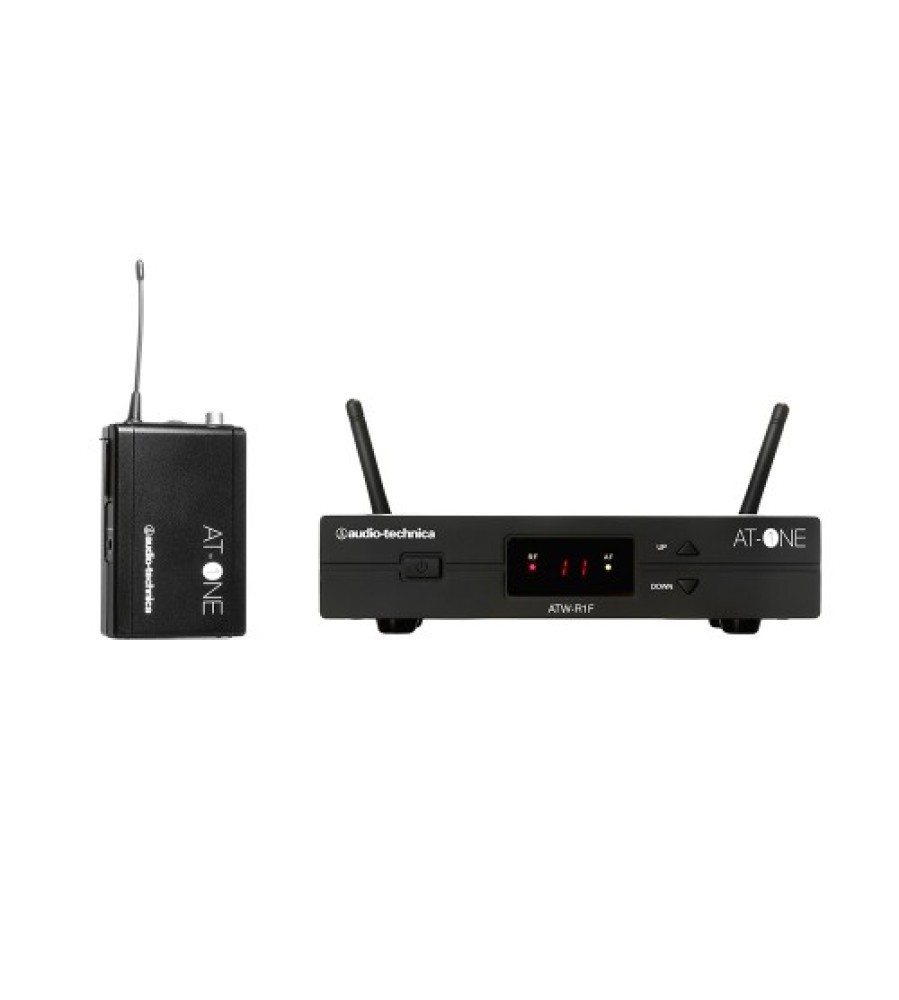

ATW-11HH2

Overall System
Operating Frequencies : 824 -831 MHz, 863 -865 MHz
Number Of Channels : 2 x 4 frequencies
Frequency Stability : +/-0.005%, Phase lock loop frequency control
Modulation Mode : FM
Frequency Response: 60 Hz -16 kHz
Operating Range : 60m, typical

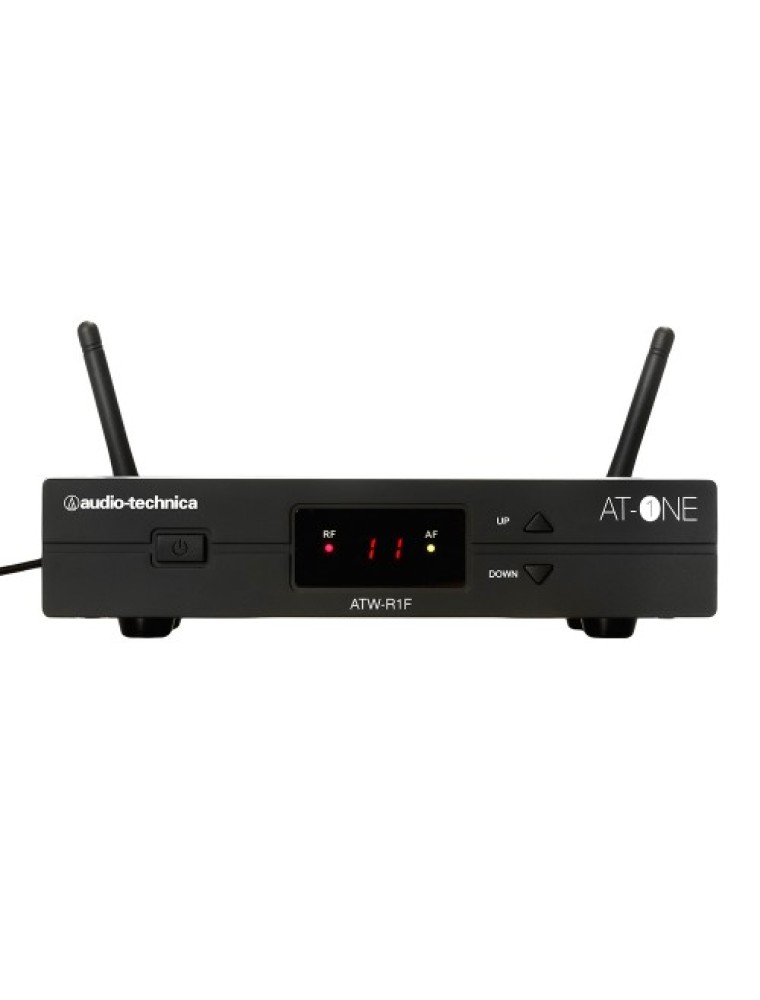

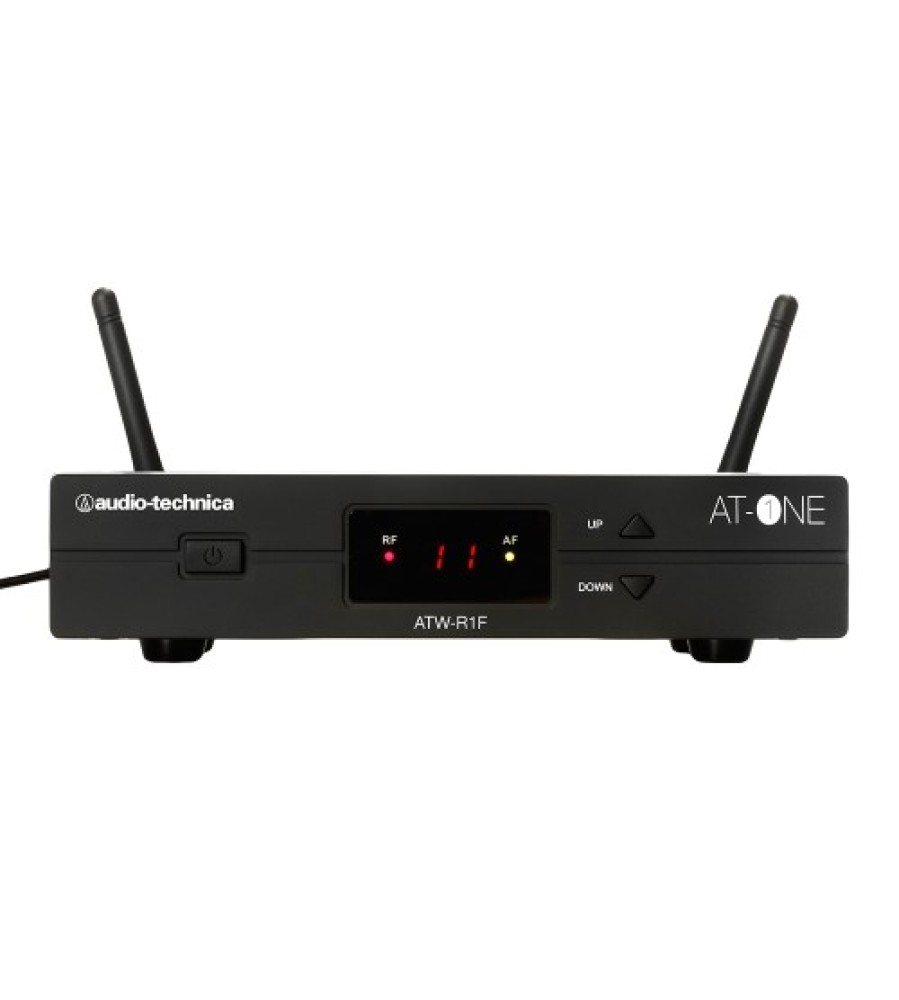

Receiver
Receiving System : Antenna switching diversity
Image Rejection : 55dB minimum
Dynamic Range : HH: 108 dB, BP 103 dB (@ max deviation)
Sensitivity : 10dBμV (S/N 60dB @ 20 kHz deviation)
Total Harmonic Distortion : <1% -20 kHz deviation @ 1 kHz
Audio Output : Unbalanced-2dBV
Audio Output Balanced 4dBV
Output Connectors (Microphone) Balanced: XLRM-type
Output Connectors (Instrument) Unbalanced: 6.3 mm mono jack
Maximum Output Level Mic / Line (0 / -20dB)
Antenna Input : BNC type, 50 -BIAS voltage 12V DC 100mA each
Dimensions : 200 mm x 42 mm x 122 mm (W x H x D)
Weight : 418 g without accessories
Accessories Included : AC Adapter, Antennas, Rack mount adapter, protective carrying case Belt Pack

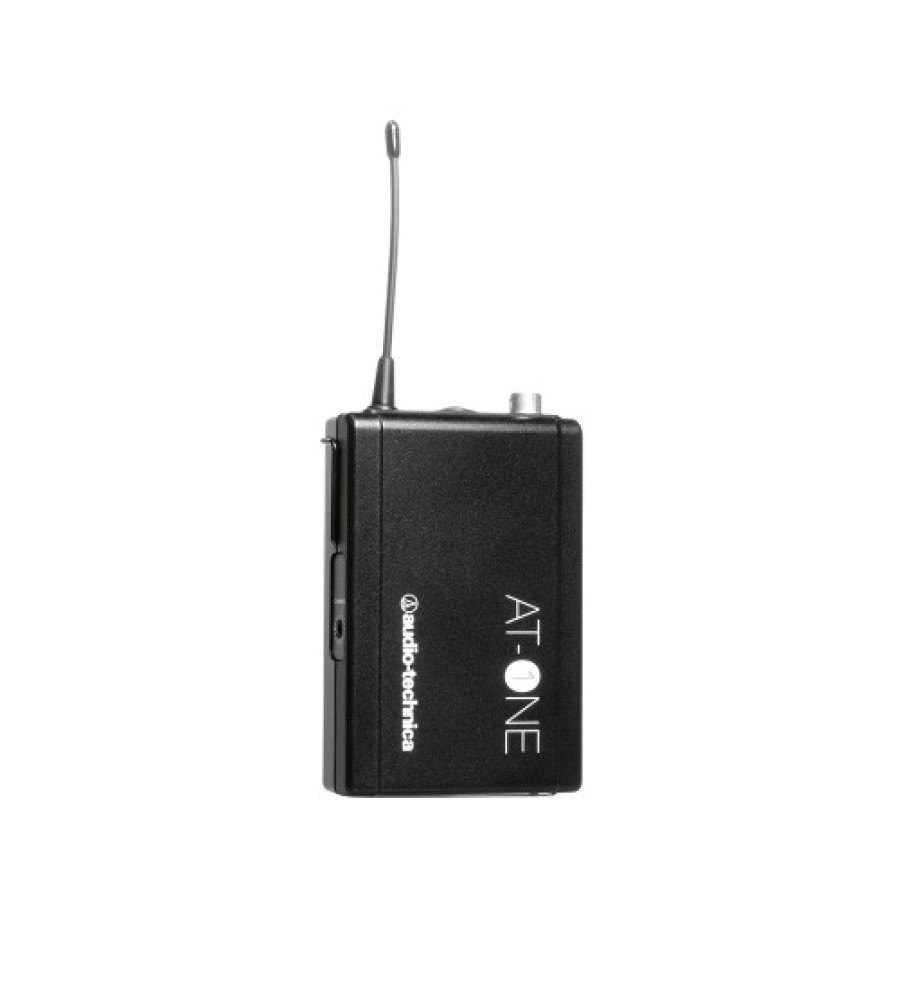

RF Power Output : 10 mW
Spurious Emissions : Following national regulations
Input ConnectionsPin 1: GND
Pin 2: INST
Pin 3: Mic
Pin 4: DC Bias +10V
Battery Type : Two 1.5V AA alkaline (not included)
Battery Life : 10 hours -depending on battery type and use pattern
Dimensions66 mm x 98 mm x 22 mm (W x H x D )
