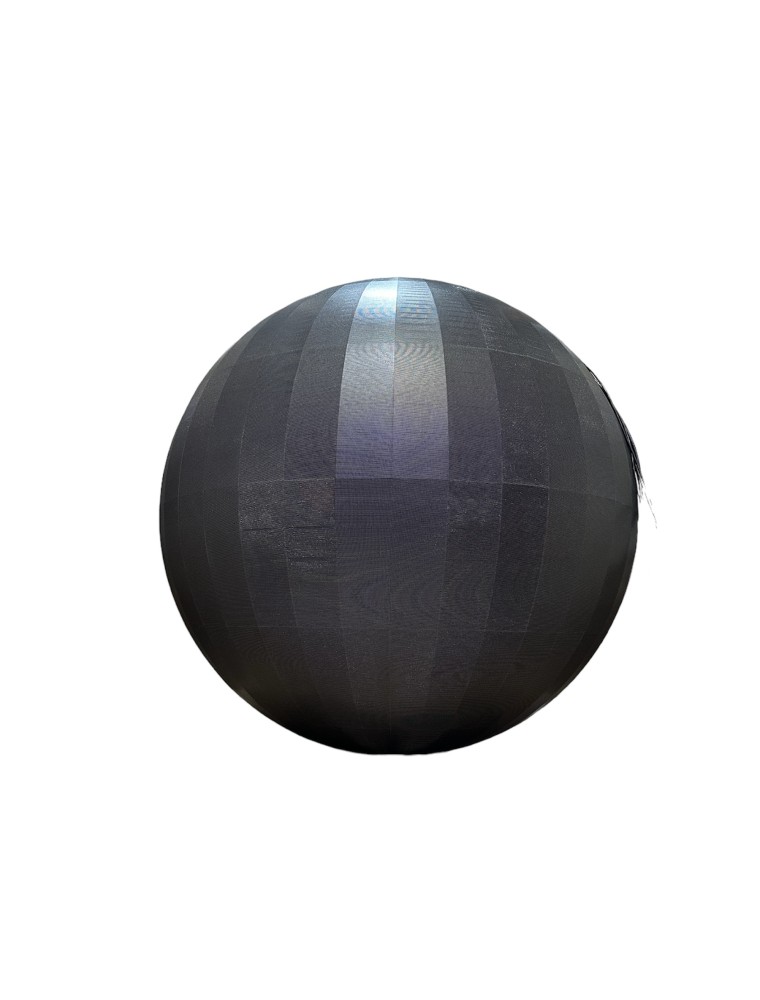

BALL SCREEN P2.5 / 1.5m DIAMETER

LED Chip                                             SMD1515

LED Configuration                             1R1G1B

Pixel Pitch                                           2.5 mm

Physical pixel                                      160000dots

Drive Mode                                         1/16S

Brightness                                           800-1000cd/m2

Horizontal View Angle                       140°

Vertical View Angle                            140°

Minimum View Distance                   3--50m

Gray Scale                                            14bit

Maximum Power Consumption      800 W/㎡

Average Power Consumption          240W/㎡

Operating Power Source                   DC4.2V-5V

Refresh Rate                                        ≥3840Hz

Stock Temperature                            (-40℃～+85℃)

Working Temperature                       ( -20℃～+50℃ )

Operating Humidity                          10-90% RH

Life Span                                             100,000Hours

Protection Rating                               Ip31

Control System                                  Novastar
