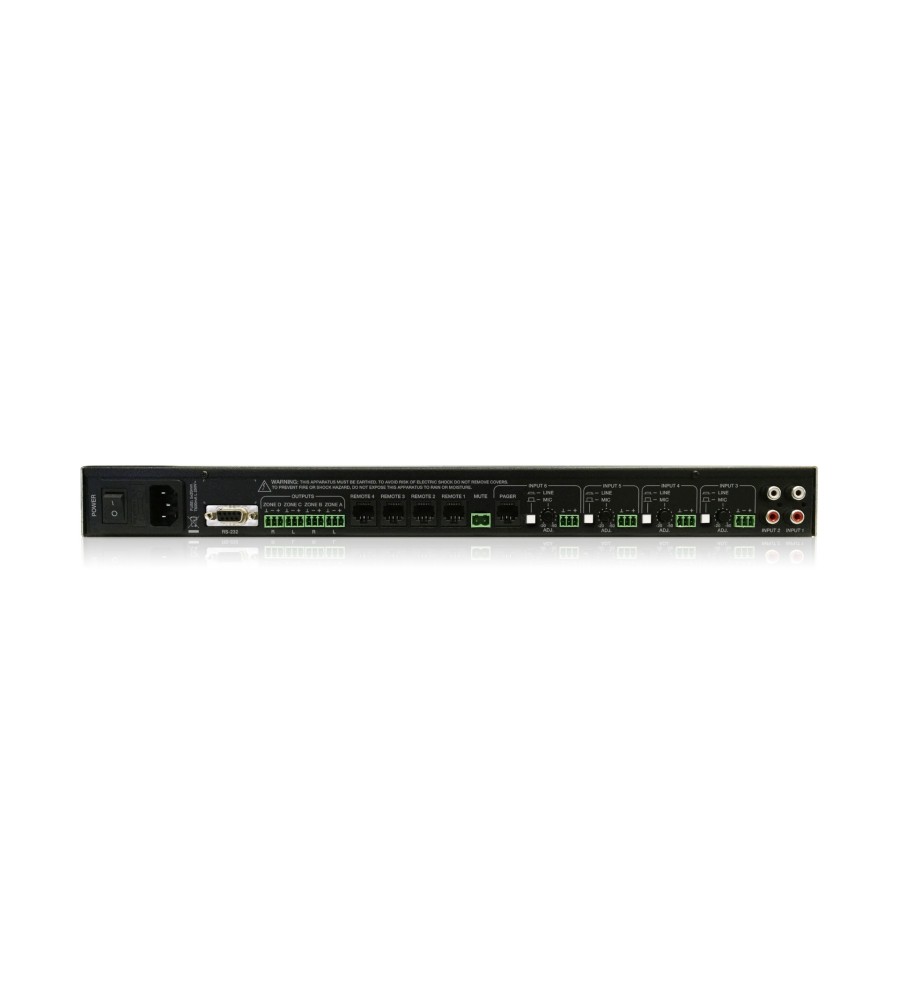

DAM614

Communication Interfaces     1 x RS232 with EclerCOMM and CA-NET protocol compatibility

Inputs  2 x Stereo Line (RCA) + 4 x MIC/LINE (Euroblock)

Outputs   4 Balanced outputs (Euroblock)

Paging 1 x Page port for real time voice paging using an MPAGE4 station

Remote control    4 x RJ45 Ports (0-10 Vdc) ready for WPm series wall panels + 1 x MUTE

Tone Control   Independent per input and output (DSP Processing)

Dimensions     482.6 x 44 x 120 mm

Weight 2.00 kg

Key Features

• DSP @ 24 bits / 48kHz

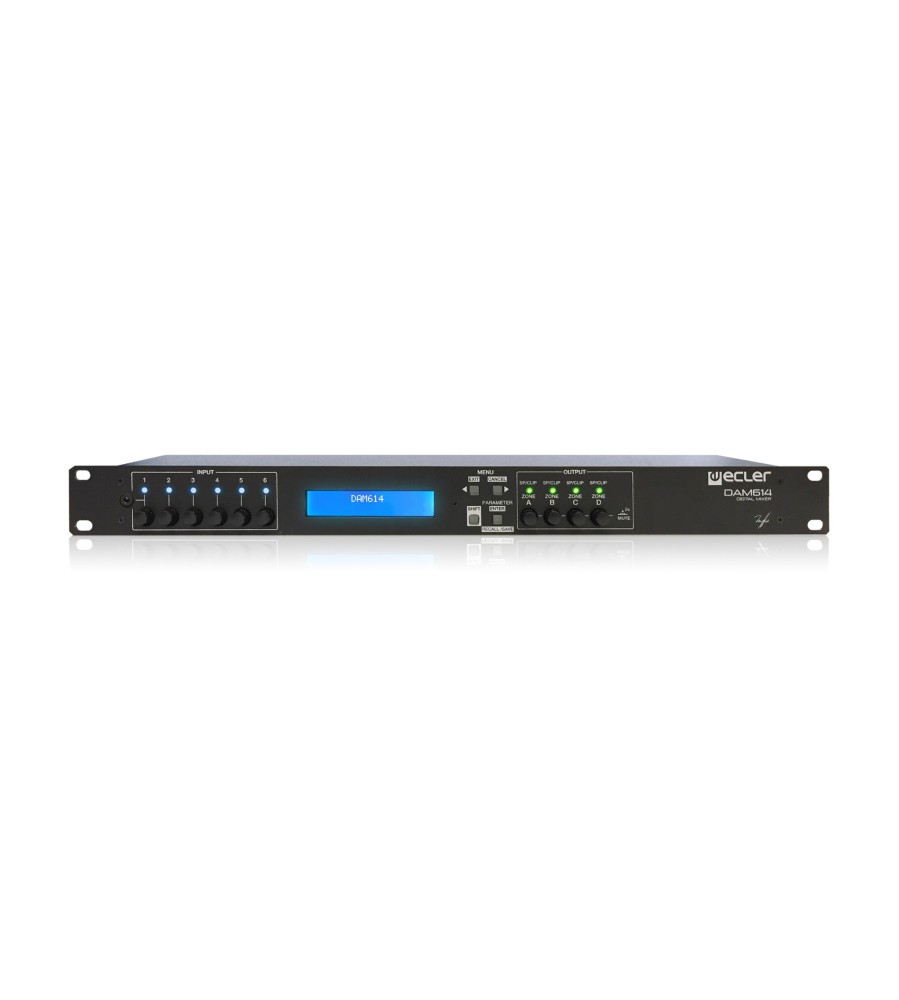

• Front panel LCD display

• 6 front panel input control digital knobs (one per input)

• 4 front panel output control digital knobs (one per output)

• 4 front panel keys, for parameters adjustment and menus navigation

• Processing:

- Independent level control for each input and output

- Independent mixer for each output zone

- Crossover filters available for each output

- Independent 10 band graphic EQ for each output

- Independent and adjustable High-pass filter available for MIC/LINE inputs

- 2 level priority PAGER / DUCKER function, triggered by MIC/LINE inputs

- Independent Noise Gate function for MIC/LINE inputs

- Independent Feedback Suppressor Function for MIC/LINE inputs

- Adjustable delay time for 2 outputs

Applications

• A/V corporate, retail and education applications

• BGM & Paging solutions, with message priorities

and source/volume independent selection

• Conferencing

• P.A. management (multi-way speaker processing,

delay adjustment, etc.)
