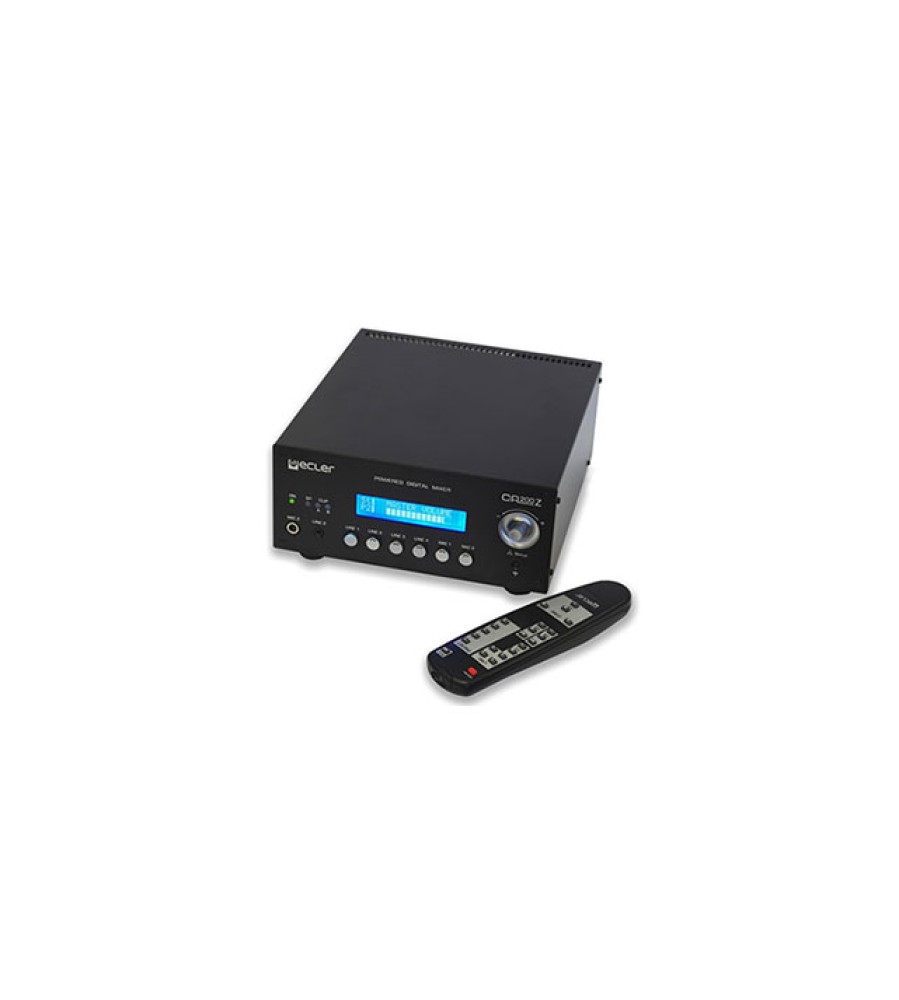

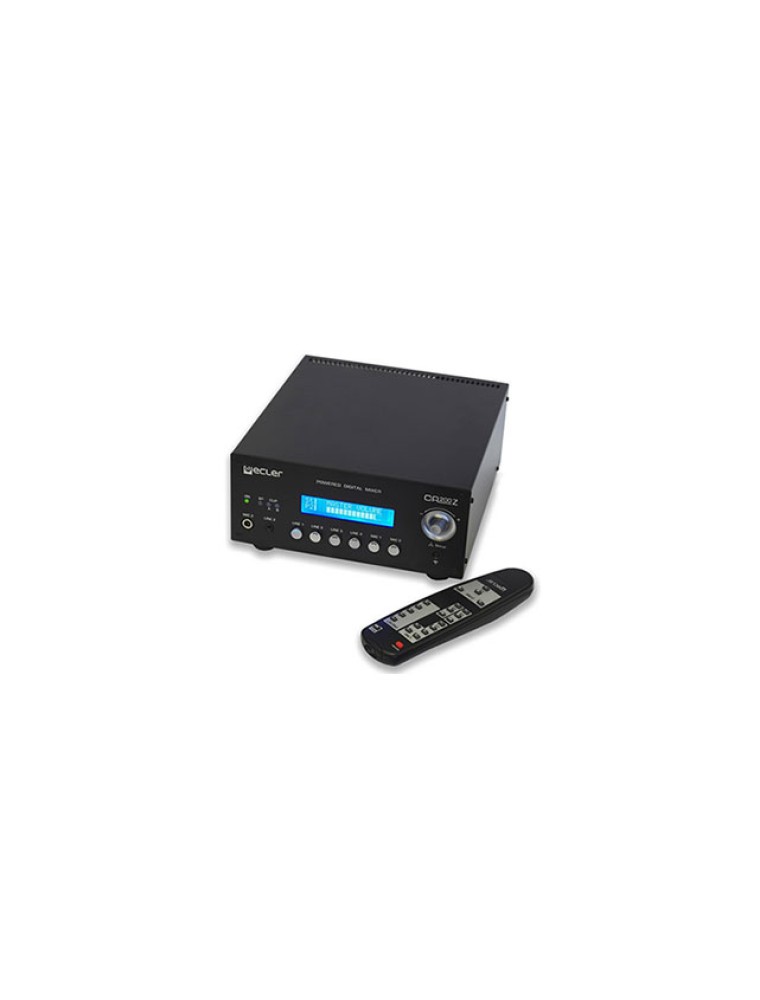

ECLER CA200Z AV Integration Digital Mixing Amplifier

4Ω per output 70 W
8Ω Bridged 97 W
8Ω per output 38W
Frequency response (-3dB) 15Hz – 40kHz
Remote control IR remote included + 2 REMOTE ports (selection & volume ctrl.) + RS232 (EclerCOMM and CA-NET Protocol compatible)
Dimensions 210 x 230 x 88 mm
Weight 2.34 kg

Key Features
• 4 LINE ST & 2 MIC audio inputs, with independent routing and levels for outputs A and B
• 2 x 70 WRMS @ 4 Ω audio outputs
• STEREO, MONO, BRIDGE or independent ZONES A/B working modes
• 2-level Talkover / Pager priority system
• Additional PAGER input for the connection of the MPAGE4 desktop paging station
• MIC2 and LINE2 inputs doubled on front panel , with jack and mini-jack connectors
• AUX A/B LINE output
• Front panel LCD display
• ON / STANDBY, Signal Present and CLIP LED indicators
• RS-232 interface for external (third-party) remote control. CA-NET protocol compatible
• 2 REMOTE ports included, compatible with WPm series (0-10 VDC): zone A / zone B volume and source / preset selection
• IR receiver (IR remote control included)
• Auto start-up preset recovery function
• LCD display with ON, OFF and DIMMED idle modes
• Auto stand by function

Applications
• Classrooms
• Meeting rooms
• Multimedia presentations (in combination with video projectors, screens, etc.)
• Retail shops
• Museums and exhibitions
• Integrated AV systems with central remote control system (Crestron©, Extron©, AMX©, etc.)
