Ecler CORE Transmitter Master Unit

Key Features

3 audio inputs available:
▪ Analogue stereo, unbalanced. 2 x RCA connectors
▪ Analogue stereo, balanced. 2 x Euroblock 3p connectors
▪ Bluetooth®, class 1 (up to 25 meters range, maximum)
• 1x WiSpeak wireless audio signal transmitted (a mono conversion of the selected input)
• 1x AUX OUT analogue signal available (a copy of the transmitted WiSpeak signal). It can be used for linking the unit to external audio devices, like amplifiers, mixers or subwoofer units
• Maximum number of receivers under control per transmitter device = 24 units. The network can be extended by linking a new transmitter to an existing receiver

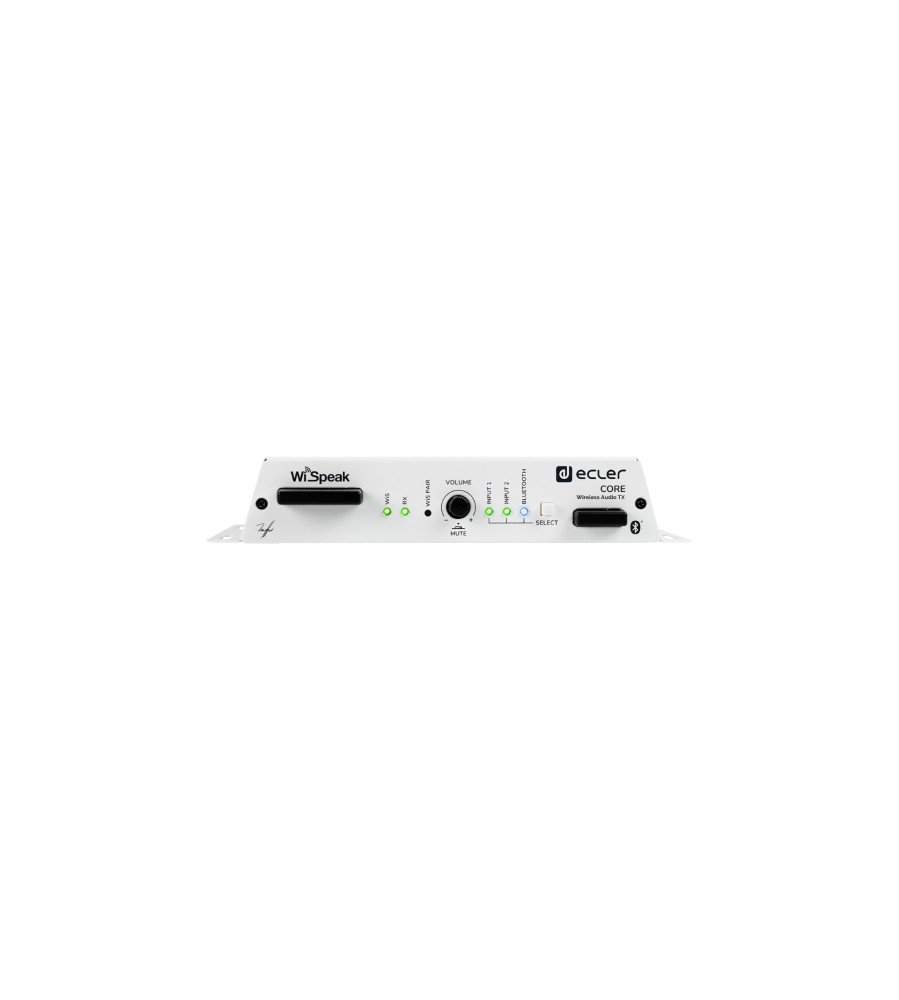

• Front panel controls for source (input) selection and general (Master) volume control
• Recommended maximum range from a CORE transmitter to any WiSpeak paired receiver: 12 meters, with direct line of sight1
• Front panel PAIR key: it allows pairing the receivers to the transmitter quickly and easily, for a basic set up of the WiSpeak system.
• External, universal Power Supply (100-240VAC 50-60Hz)
• Compatible with WiSpeak grip app for set up and control functions (available for Android and iOS), using Bluetooth® connection
• External MUTE port and remote volume control port compatible with WPaVOL wall panel

Applications

• Retail

• Hospitality

• Education

• Corporate

• Sports and wellness
