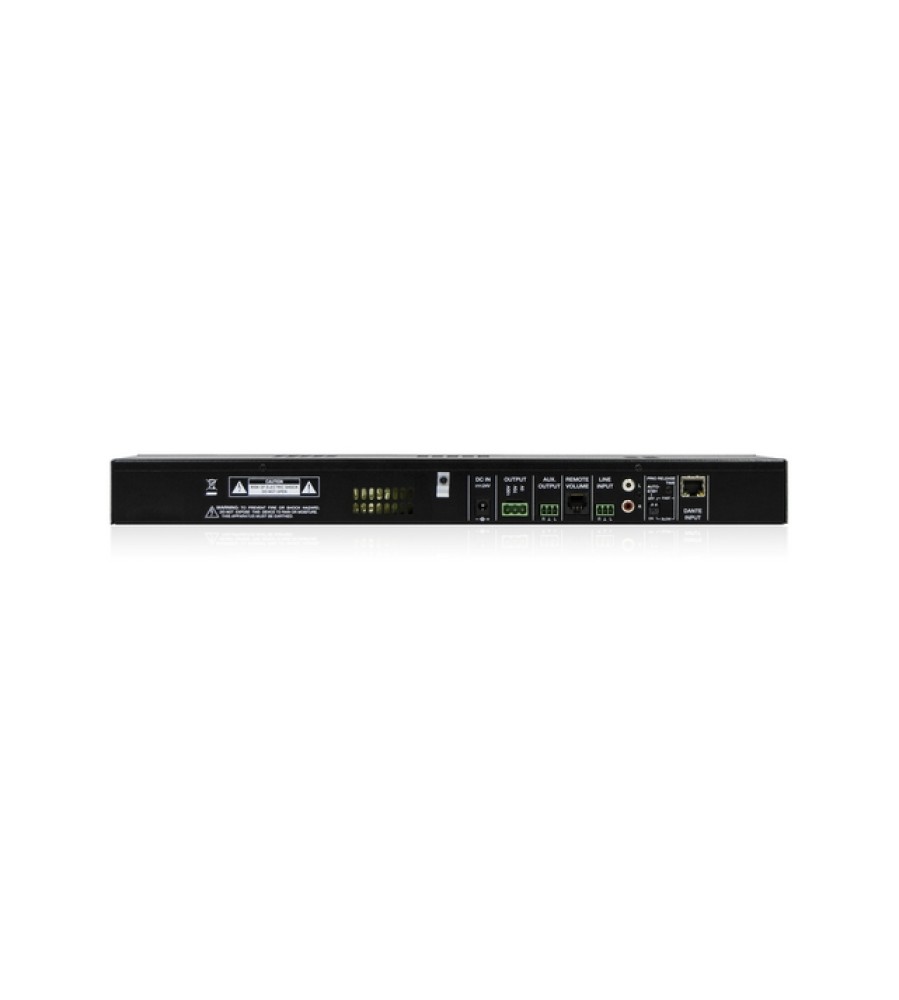

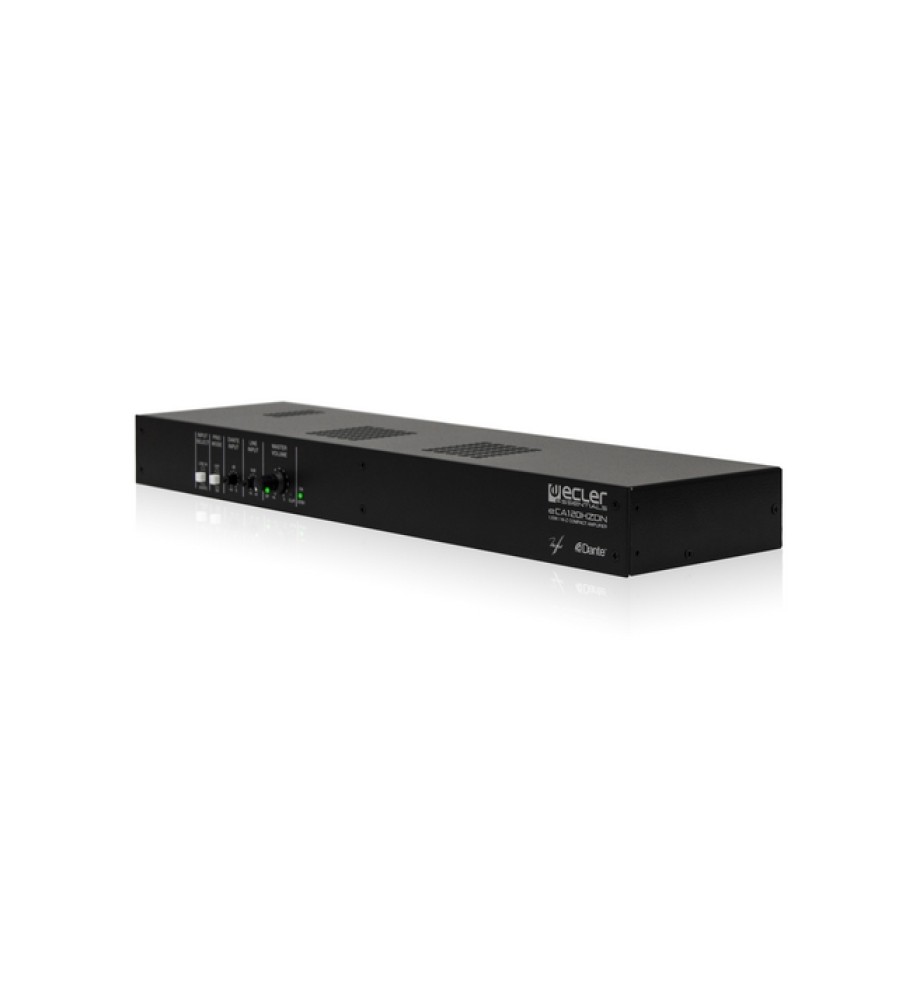

ECLER eCA120HZDN Dante™ interface amplifier

1 Channel @ 4Ω (RMS) -
1 channel @ 70/100V (RMS) 98W
Inputs 1 LINE ST + 2 Dante
Remote control 1 RJ45
Dimensions / weight HxWxD: 44 (1RU)x435x120mm / 2,8 kg.

Key Features

1 x 120W RMS @ 100V output
1 x auxiliary audio output (Euroblock connector), for connecting to a sub-woofer unit e.g.
1 x unbalanced stereo input (LINE INPUT), with dual RCA connector and 3-in Euroblock connector
2 x Dante™ audio input (DANTE INPUT), with RJ-45 connector
Selectable PRIORITY FUNCTION with selectable priority signal: the analogue audio input (LINE INPUT) can be selected as priority signal over the Dante™ audio input (DANTE INPUT), or vice versa.
Priority release time adjustment (FAST / SLOW).
Selectable AUTO STANDBY function: in the absence of an audio signal the unit automatically goes into STANDBY mode, minimizing power consumption.
Gain adjust of audio inputs on front panel (trimmers)
Local volume control by knob
Remote volume control (RJ-45 connector.) via WPa wall-panel control series (0-10 VDC).
Lightweight, silent, high-performance amplifier (fan-free convection cooling)
External, universal power supply (included)

Applications

Audio Over IP transmission, using standard Ethernet networks
Dante™ digital audio receiver
Priority messages management
Education, Retail Centers, Museums, Etc.
