Ecler eHSA4-60

Sensitivity 0dBV (Input)
Power consumption 52W / 68VA (1/8 Power, @ 4 Ω)
Output @ 4Ω 60W
Mains 100 – 240VAC, 50 – 60 Hz (±10%)
Frequency response (-3dB) 70Hz - 20kHz @ 100V
Frequency response (-3dB) 70Hz – 30kHz @ 4Ω
Input level/impedance >20kΩ
Power consumption Stand-by 7,6W / 18VA
Connections Euroblock
Dimensions WxHxD 482,6 mm x 44mm x 280mm / 19” x 1.7” x 11”
Weight 7,8 kg. / 17.2 lb.


4-channel amplifier
60W per channel
Each channel has independent outputs for low impedance or for high impedance

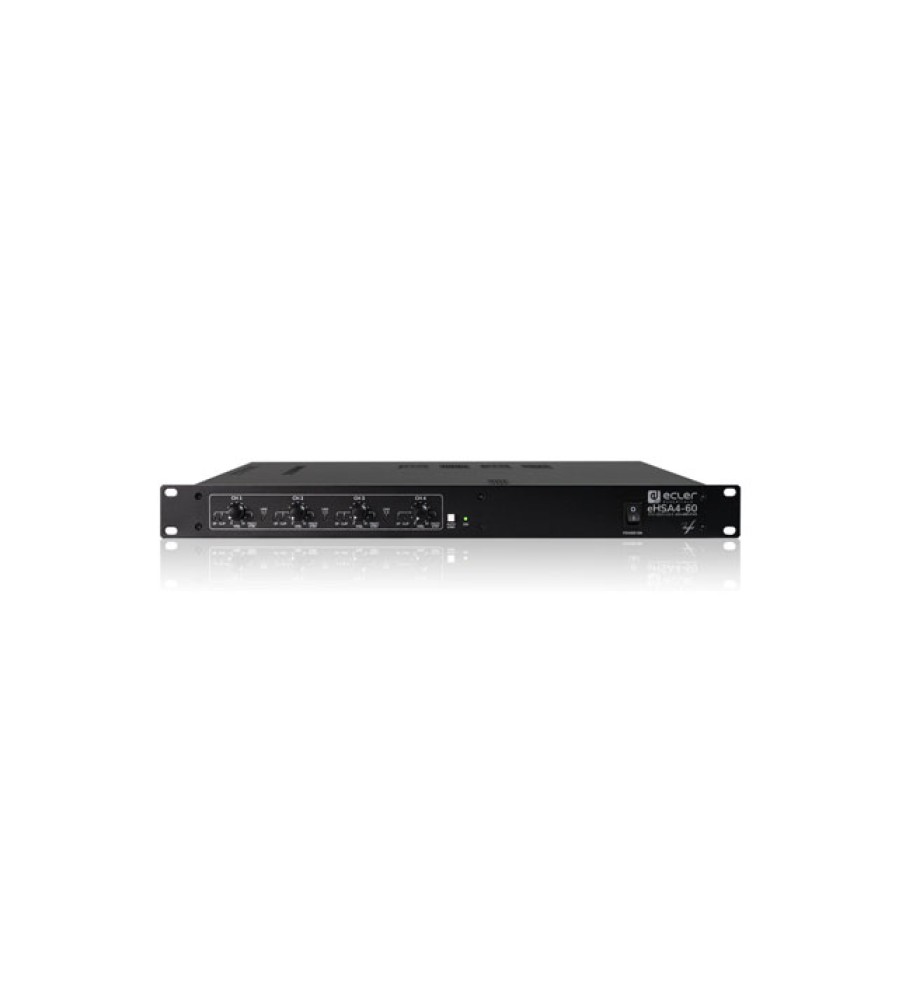

Controls for input attenuation in the frontal panel easily accessible.
Class D amplification, high efficiency
Auto stand-by, independent by channel
Linking of adjacent inputs (Input link selector)
Signal presence (SP), clipping (CLIP), protection against overload (PROT) and thermal protection (TH) indicators.
Built-in, always active anticlip circuit
Balanced inputs on Euroblock connectors
Powered outputs on Euroblock connectors
