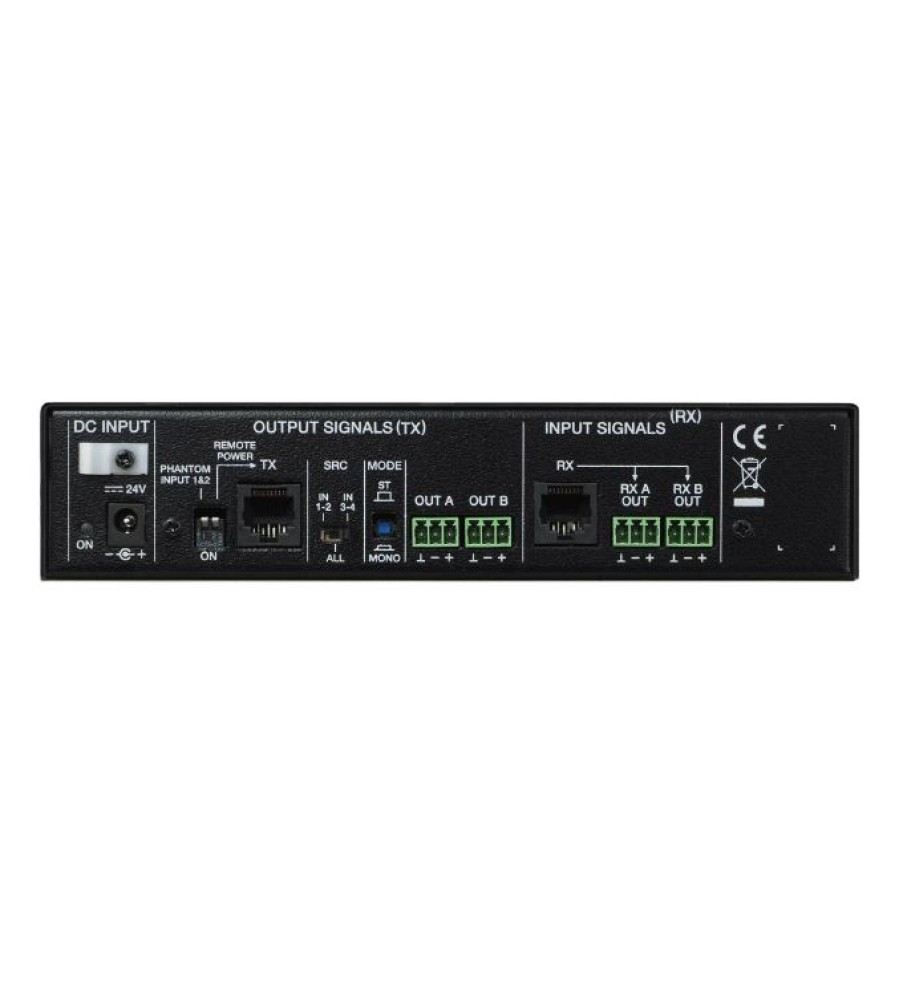

ECLER GENIO analogue audio balancer, receptor and emitter device

Inputs  :    4 (2 mono balanced, 1 ST unbalanced)

Outputs:  2 (balanced)

Phantom Power:  +18VDC

Communication Interfaces  :TX Port (RJ-45) | RX Port (RJ-45/Euroblock), analog audio+remote power

Dimensions :     200x44(1RU)x130mm / 7.87”x1,73”x5.12”

Weight :     750 gr / 1.65 lb

KEY FEATURES
• Analog audio balancer-transmitter-receiver equipment
(2 send channels + 2 receiver channels)
• 1/2 RU format
• Universal external PSU, multi-plug
• 1 duplicate format ST input: mini-jack and double RCA
• 2 balanced mono inputs, combo format
• 1 balanced ST output with local connectors, being able to
select different combinations of inputs for this output
• The same balanced output, 2 channels, is available in RJ45
connector for delivery via a CAT5 over long distances,
received in a remote unit
• The same unit has another RJ45 port for 2-channel
reception coming from the remote unit
• One of the 2 units can send remote power to your linked
unit, by the transmission cable (TX port)
