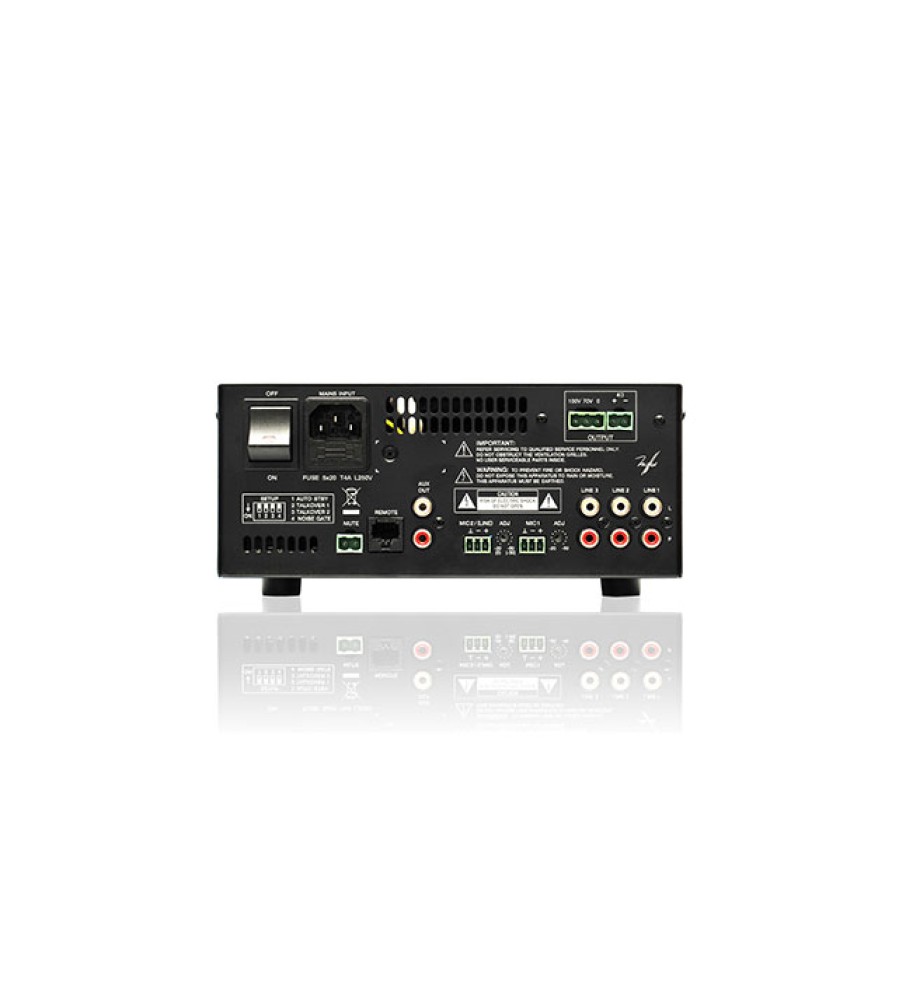

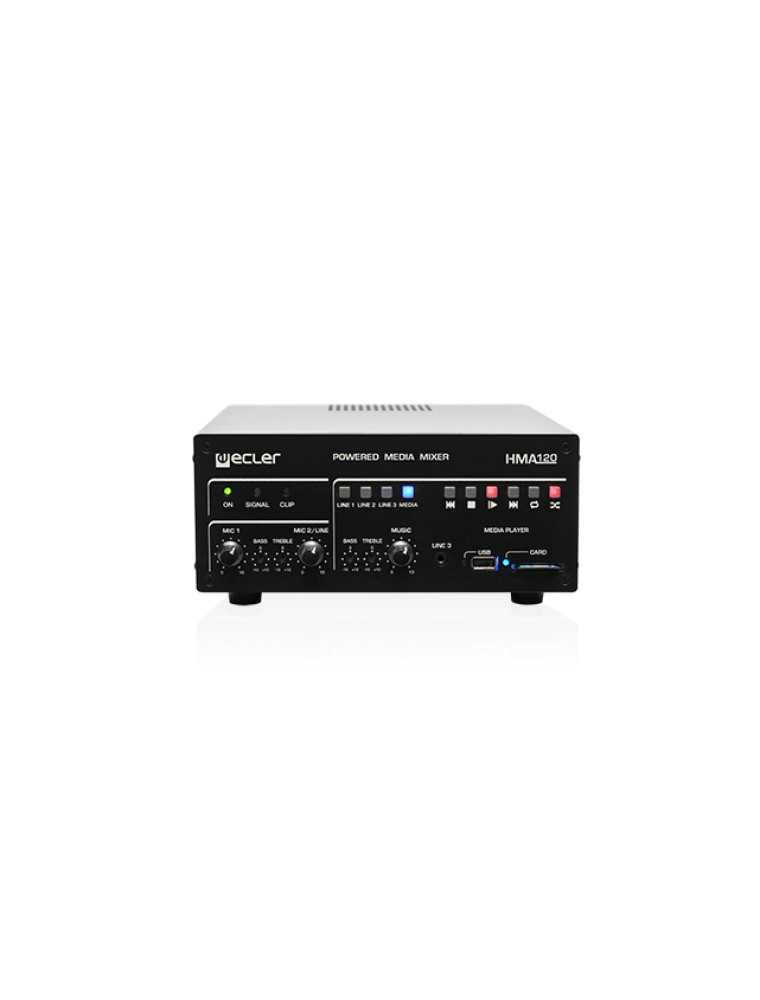

ECLER HMA120 Self-powered Media Mixer

High pass filter 3rd order Butterworth 70 Hz
Output @ 4Ω 110 WRMS
Output @ 8Ω 84 WRMS
Output 100V @ 85Ω 110 WRMS
Output 70V @ 41Ω 110 WRMS
Remote control REMOTE port for remote volume management (WPm series compatible)
Dimensions 210 x 230 x 88 mm
Weight 5.95 kg

Key Features
• 2 balanced microphone input mixable with the selected music program (MIC1 and MIC2/LINE ST inputs)
• 3 line inputs for music sources
• Integrated audio player (supporting mp3 format) with USB and SD CARD slots for media storage devices
• Music program selector on the front panel: LINE1, LINE2, LINE3, MEDIA (integrated player)
• Noise gate and two-level priority system (Talkover 1 and Talkover 2) for MIC1 and MIC2/LINE inputs
• Independent level controls on the front panel for MIC1, MIC2/LINE and MUSIC signals
• 2-band EQ (BASS/TREBLE) for MIC1 and MIC2/LINE and 2-band EQ for program MUSIC signal
• REMOTE port for connecting WPm series wall panels, 0 - 10VDC (source selection and volume)
• MUTE port to remotely mute the unit from an external device, via dry contact closure
• Auxiliary Output
• Auto Stand-by function

Applications
• Retail stores, restaurants and bars
• BGM & Paging solutions, with message priorities and source/volume independent selection
