VEO-XTT44 4K 18Gbps HDBaseT Extender/Scaler

Περιγραφή

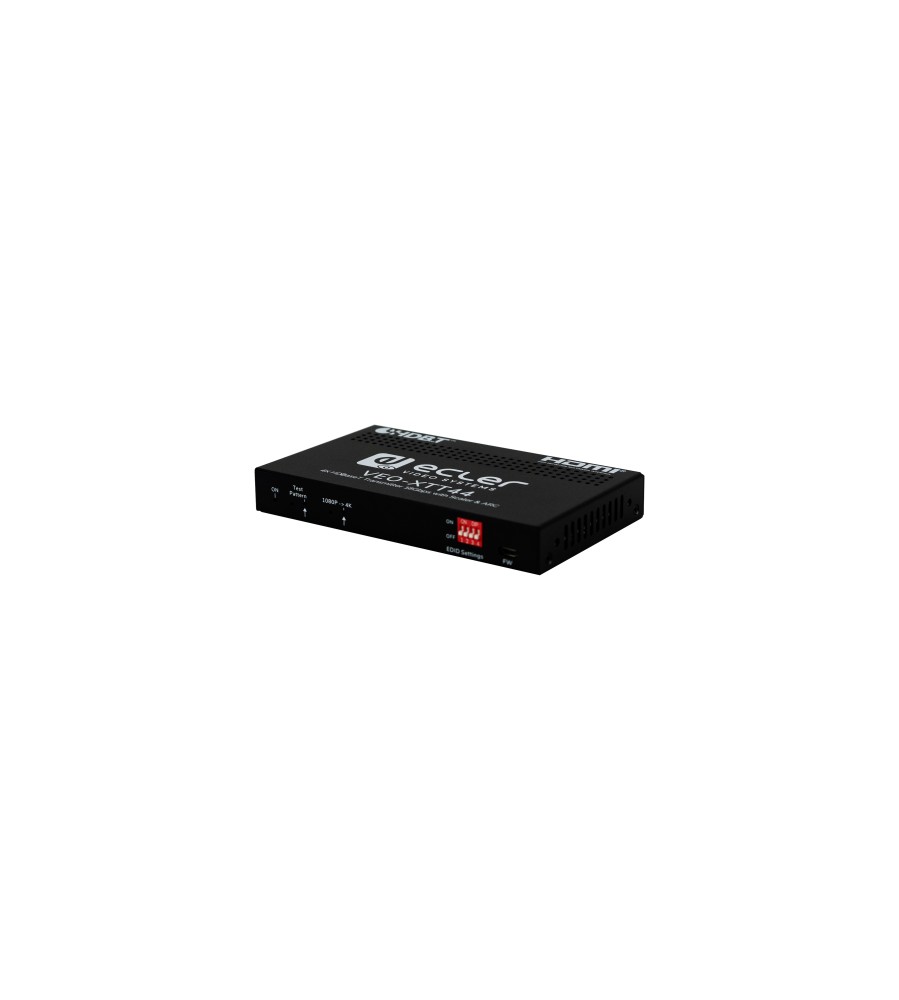

VEO-XTT44 is a professional HDBaseT transmitter for HDMI 2.0 extension of High Dynamic Range (HDR) formats. Bidirectional PoH (Power Over HDBaseT) allows to use only one power supply connected to the Transmitter or the Receiver, according to the installation needs. This product represents the ideal solution for residential and commercial applications that include the latest 4K/UHD and HDR sources and displays.

Supports HDMI 2.0 and the HDMI video resolution up to 4K@60Hz 4:4:4 HDR.

HDCP 2.2 and 1.4 supported.

Extends 4K signals to distances up to 40 meters (131 feet) and 1080P signals to distances up to 70 meters (230 feet) over a single CATx cable.

Supports video resolution up-scaling, the 1080P input can be automatically upgraded to 4K output.

SPDIF out on receiver for source audio de-embedding.

18Gbps high bandwidth.

Advanced EDID management: multiple built-in EDID settings or customized EDID can be selected.

Test pattern provides a built-in 4K/1080P image for troubleshooting.

Bidirectional IR, RS-232 and 24V PoH.

Supports ARC.

Supports CEC pass-through.

Provides LEDs to indicate the current operating status.

Firmware upgrade by Micro-USB port.

ESD protection.

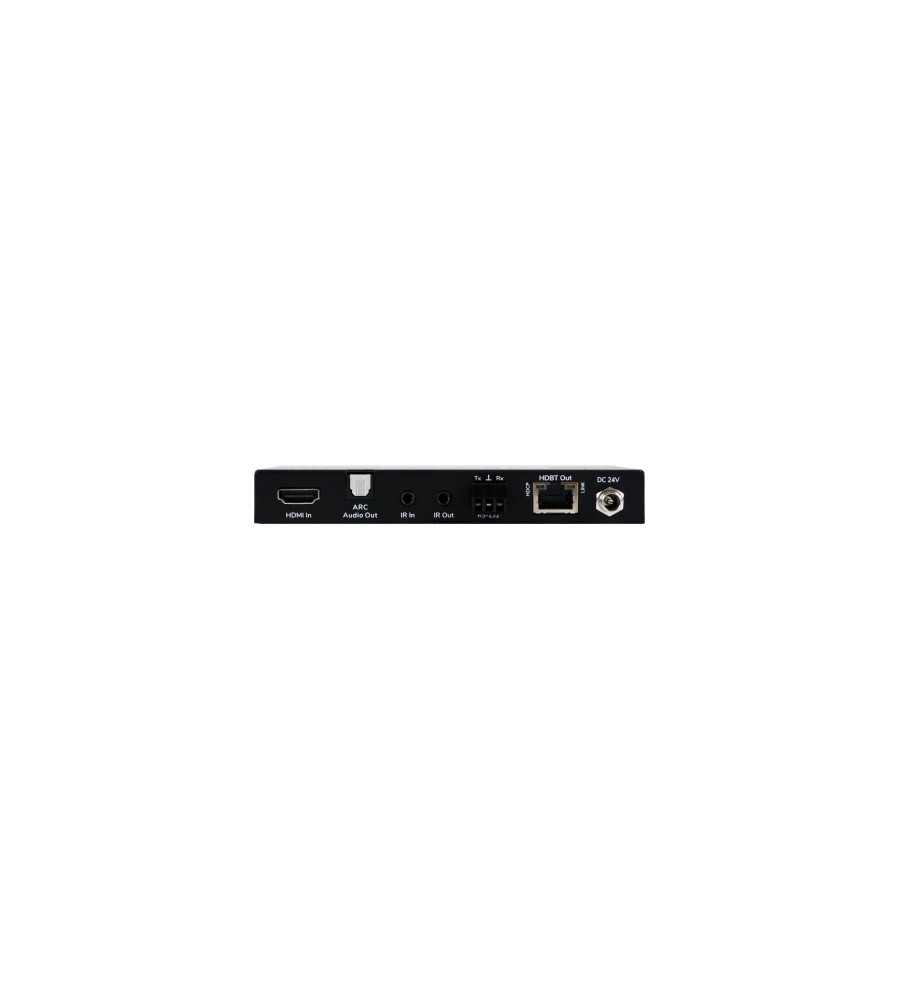

Video Input Connectors	HDMI Type A Female, 2.0, 18 Gbps
Video Input Resolutions	Up to 4Kx2K@60Hz
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0
Colour Depth	8-bit, 10-bit, 12-bit, 16-bit only @4K30
Colour Space	RGB, YCbCr
HDCP	2.2/1.4 Compliant
HDR	HDR10
Scaling Features	Yes
HDMI Distance	up to 10 meters / 33 ft with Ecler VEO cables
Audio Output Connectors	Toslink (ARC output)
Audio Formats	PCM 2Ch, PCM 5.1, PCM 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio
Sample Rate	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit Depth	up to 24-bit
Frequency Response	20Hz – 20KHz, ±3dB
ARC/eARC	Yes
Control Connectors	Jack 3.5mm, 3-pin Euroblock, Micro-USB
Control Protocols	IR, RS-232

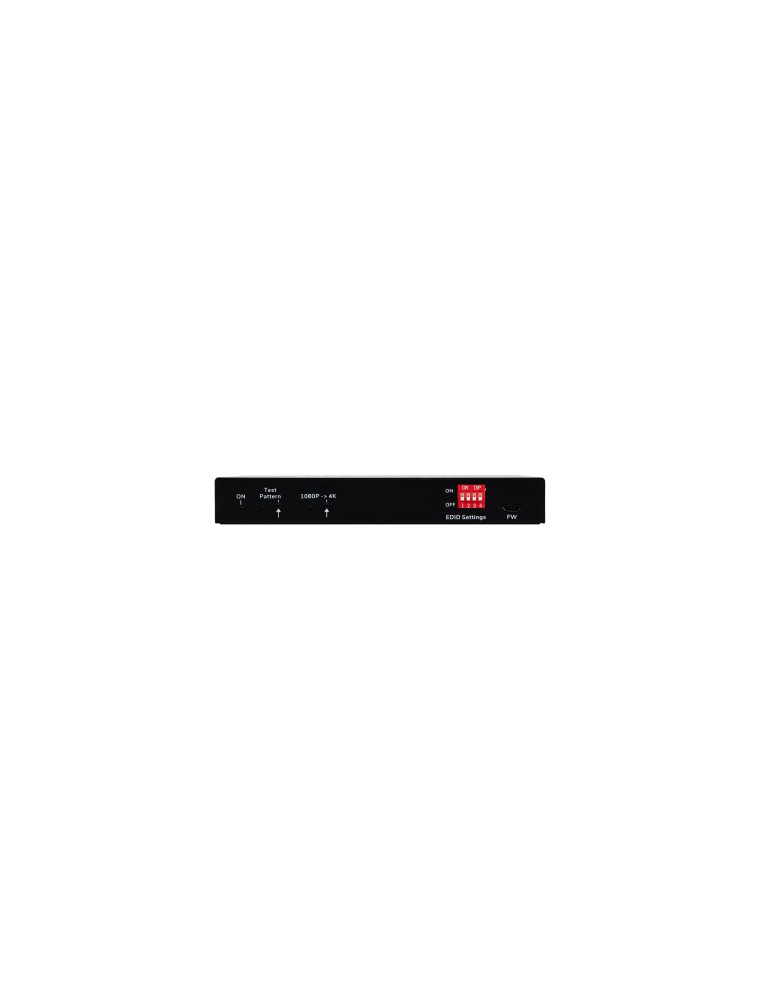

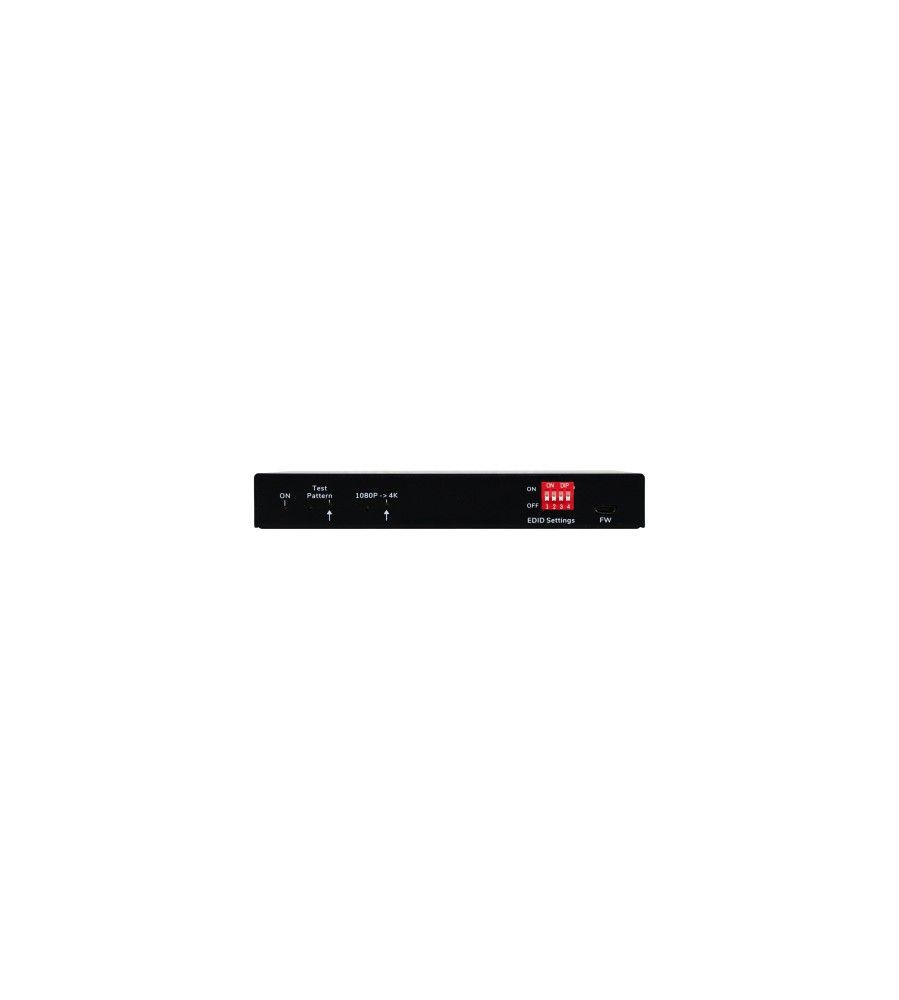

Control Buttons	Test Pattern button, 1080P to 4K button

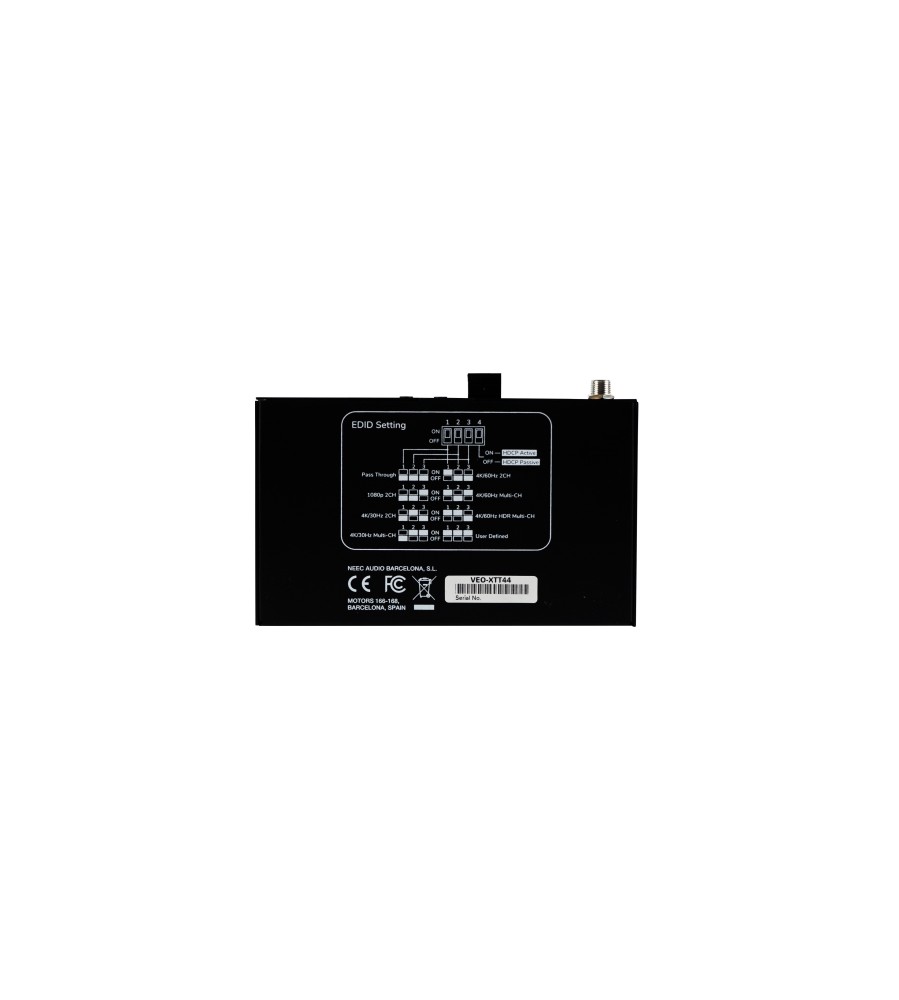

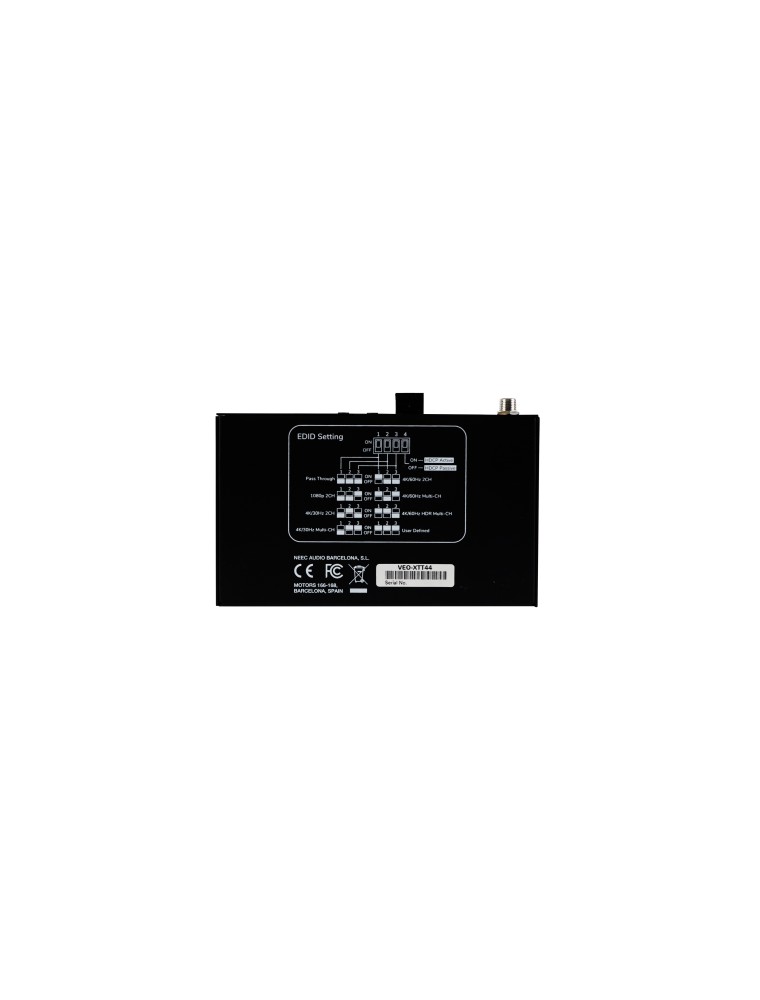

EDID Management	4-pin Dip-switch or through the FW port
Status Indicators	Power LED, Test Pattern mode LEDs
Pass-through Connectors	Jack 3.5mm
Pass-through Protocols	IR, CEC
Transmission Distance	CAT5e/6 @ 4K up to 35 m / up to 115 feet CAT6a/7 @ 4K up to 40 m/ up to 130 feet CAT5e/6 @ 1080p up to 60 m / up to 197 feet CAT6a/7 @ 1080p up to 70 m / up to 230 feet
Power supply	PoH; External: AC 100V - 240V @ 50-60Hz Output: DC 24V-1.25A
DC mains connector	DC 24V connector
Power consumption	12W Maximum
Operating temperature	Min: -5°C ; 23°F Max: 55°C ; 131°F
Operating humidity	10 to 90 % RH (no condensation)
Installation options	Desktop - TBC
Included accessories	2x TX Mounting Ears with 4 Screws, 4 x TX Rubber feet, 3-pin Terminal Block, Power Adapter (24V DC 1.25A), Quick guide and warranty
Dimensions	140 × 20 x 84 mm / 5.51 x 0.79 x 3.31 in. (WxHxD)
Weight	0.275 kg / 0.606 lb
Shipping dimensions	175 x 119 x 110 mm / 6.89 x 4.69 x 4.33 in. (WxHxD)
Shipping weight	0.6 kg / 1.32 lb
