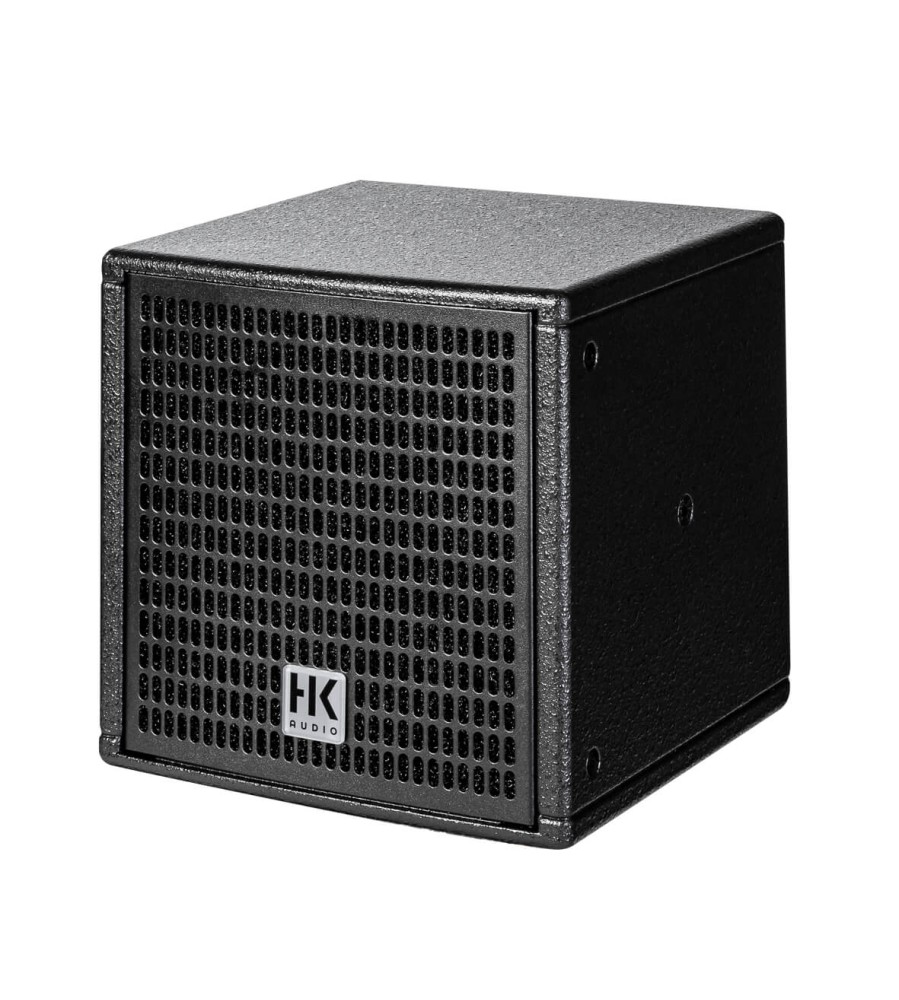

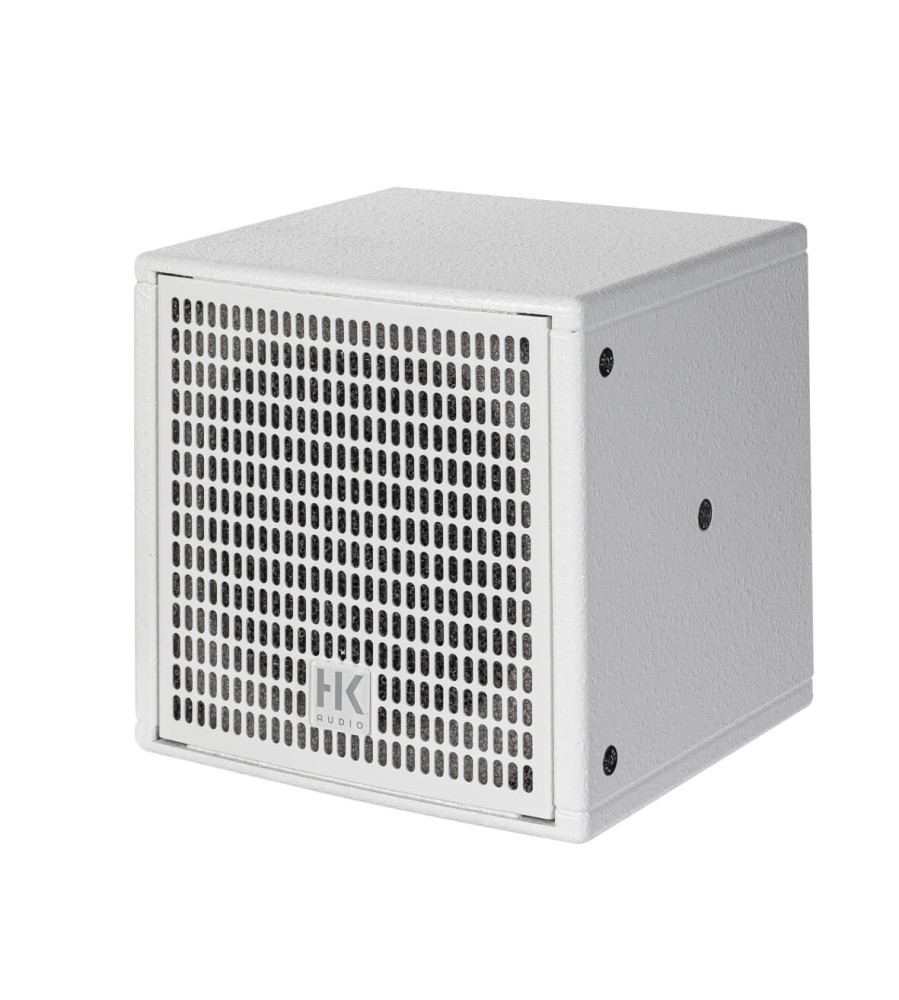

FINEO FO 5

Κωδικός Προϊόντος: BL/WH

Διαθεσιμότητα: Μη διαθέσιμο

Περιγραφή

The ultra-compact, cube-shaped FO 5 features an innovative coaxial 5″/1″ transducer with 110° dispersion, in which the silk dome tweeter uses the shape of the woofer cone as a wave guide. This makes it particularly suitable for close listening distances and ideal for use as a delay speaker in larger rooms for front sound reinforcement or nearfill at the edge of the stage in fixed installations. In combination with the S112 (F) subwoofer, it grows to full size and offers a powerful full-range sound reinforcement solution that will please even the most discerning ears. In addition to nearfield monitoring at lecterns, other areas of application include high-quality hospitality or background sound reinforcement as well as unobtrusive placement in exhibitions, for elaborate immersive audio applications with many sources or simply for use by Power Hi-Fi enthusiasts. With its extensive range of accessories, the FO 5 can be quickly and safely installated in all standard applications, but can also handle more specialised requirements with ease

Concept	Passive 2-way mid/high unit
Cabinet principle	Bass reflex
Power handling RMS	100 W
Power handling program	200 W
Power handling peak	400 W
Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value))	8 ohms
Max. SPL average (1 m, 10 % THD @ 100 Hz - 20 kHz, (EN 60268-21), full space)	109 dB
Max. SPL peak (1 m, 10 % THD @ 2 kHz, full space)	112 dB
Sensitivity 1 W/1 m (100 Hz - 20 kHz, full space)	87 dB
Crossover frequency	3.1 kHz
Frequency range -6 dB	81 Hz - 20 kHz
Frequency range -10 dB	75 Hz - 20 kHz
Dispersion angle -6 dB (circular)	110°

Certifications
Ball impact resistance (DIN 18032-3)	certified (MPA University Stuttgart)
IP protection class (EN 60529)	not specified

Components
Low-/mid frequency	1x 5" Celestion coxial cone speaker with ferrite magnet and 1.5" voice coil
High frequency	1 x 1" Celestion silk dome tweeter with neodymium magnet and 1" voice coil
Crossover	High pass: 18 dB/octave, low pass: 12 dB/octave
High frequency protection circuit	Self-healing PTC fuse
Horn	Coaxial membrane functions as wave guide

Connections
Input	1 x NL4 Speakon
Output/parallel output	1 x NL4 Speakon
Pin assignment	1+/- (input/parallel output), 2+/- (wired through)

Amping/DSP Presets
Lab.Gruppen	IPX
LEA Professional	Sharkware

Amping/Filter Sheets
Filter specifications in tabular form for frequency response equalization Without limiter specifications	Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix

Mechanical data
Mounting points	2 x M6 at the side, 4 x M4 at the rear
Cabinet material	MDF
Cabinet surface	1-component acrylic enamel
Color	Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog
Front grille	Steel front grille with anticorrosive coating, backed acoustic foam
Optional accessories	U-bracket, L-bracket, BM-360, adapter plate to VESA MIS-D (100 x 100 mm)
Rear hole pattern	VESA MIS-D (100 x 100 mm)
Dimensions (WxHxD)	195 x 195 x 195 mm 7.68 x 7.68 x 7.68 inch
Weight	4.2 kg 9.23 Ibs
