FINEO FO 8

Κωδικός Προϊόντος: 1.001.038 BL

Διαθεσιμότητα: Διαθέσιμο

Περιγραφή

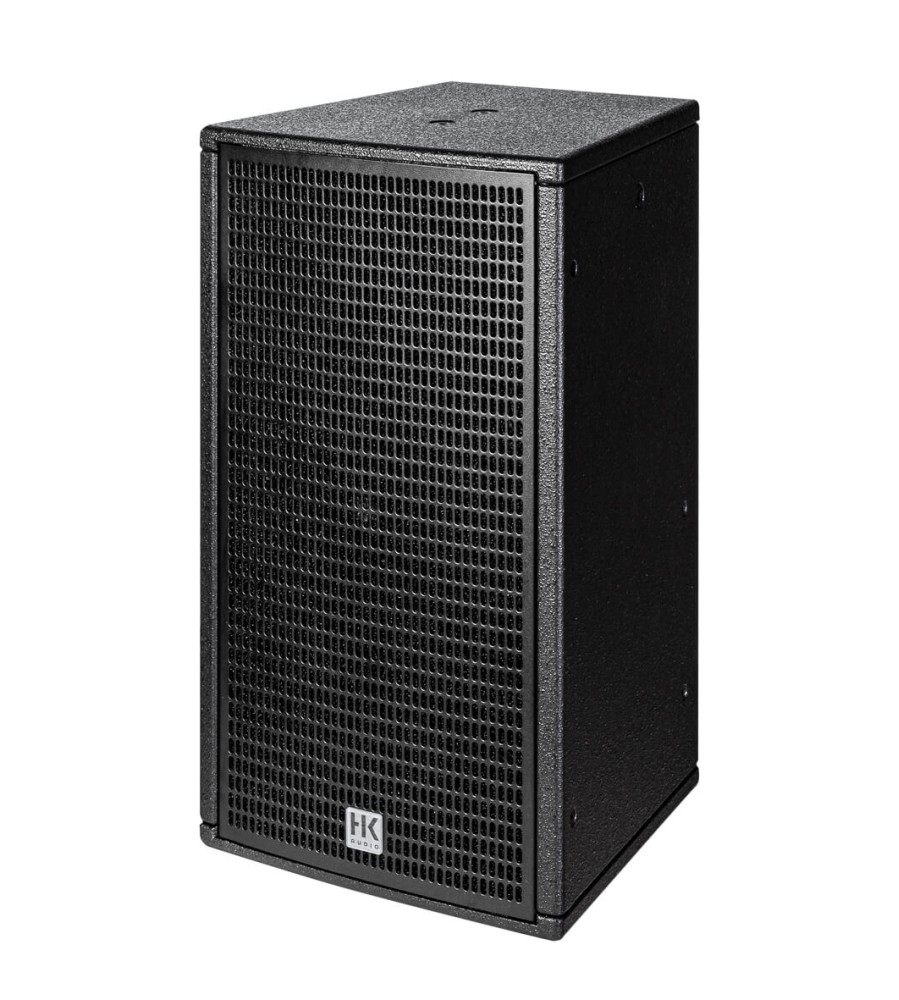

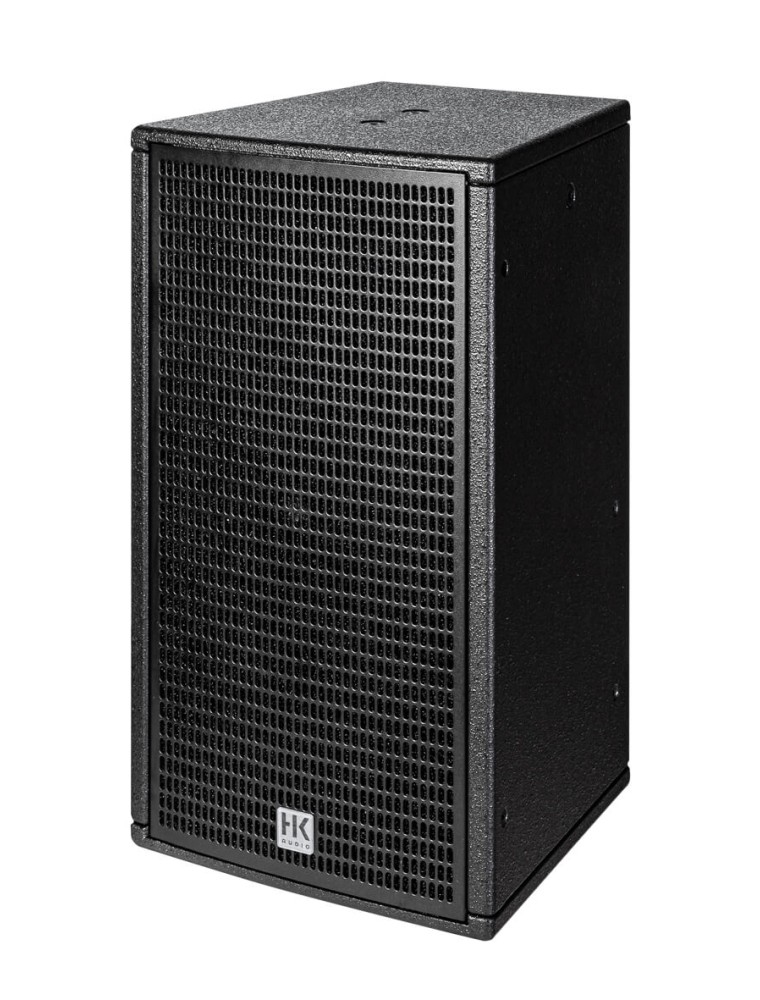

The compact FINEO FO 8 is designed as a passive 2-way system and has a modern, ultra-slim and space-saving trapezoidal cabinet. With its 8″ cone speaker with 1.75″ voice coil, the FO 8 provides a solid foundation for speech or near-field sound reinforcement and balanced mids in combination with the S112, S118 or S218 subwoofers. The BEM-optimized constant directivity horn with the powerful 1″ compression driver, which is well-known from the CONTOUR X series, specially developed for the rough and tumble of touring, has a dispersion angle of 80° x 60° and thus delivers a large sound area without causing excessive acoustic excitation on the walls or ceilings. The horn can be rotated, meaning that the FO 8 can be used upright, on its side or with altered horizontal and vertical dispersion. The compact speaker can therefore always be positioned optimally, even in small or architecturally complex rooms.

Concept	Passive 2-way mid/high unit
Cabinet principle	Bass reflex
Power handling RMS	200 W
Power handling program	400 W
Power handling peak	800 W
Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value))	8 ohms
Max. SPL average (1 m, 10 % THD @ 80 Hz - 20 kHz, (EN 60268-21), full space)	116 dB
Max. SPL peak (1 m, 10 % THD @ 3.3 kHz, full space	119 dB
Sensitivity 1 W/1 m (80 Hz - 20 kHz, full space)	91 dB
Crossover frequency	3.2 kHz
Frequency range -6 dB	72 Hz - 20 kHz
Frequency range -10 dB	69 Hz - 20 kHz
Dispersion angle -6 dB (horizontal x vertical)	80° x 60°

Certifications
Ball impact resistance (DIN 18032-3)	certified (MPA University Stuttgart)
IP protection class (EN 60529)	not specified

Components
Low-/mid frequency	1x 8" Sica cone speaker with ferrite magnet and 1.75" voice coil
High frequency	1 x 1" Sica compression driver with ferrite magnet and 1" voice coil
Crossover	High pass: 18 dB/octave, low pass: 18 dB/octave
High frequency protection circuit	Self-healing PTC fuse
Horn	BEM-optimized constant directivity horn, rotatable

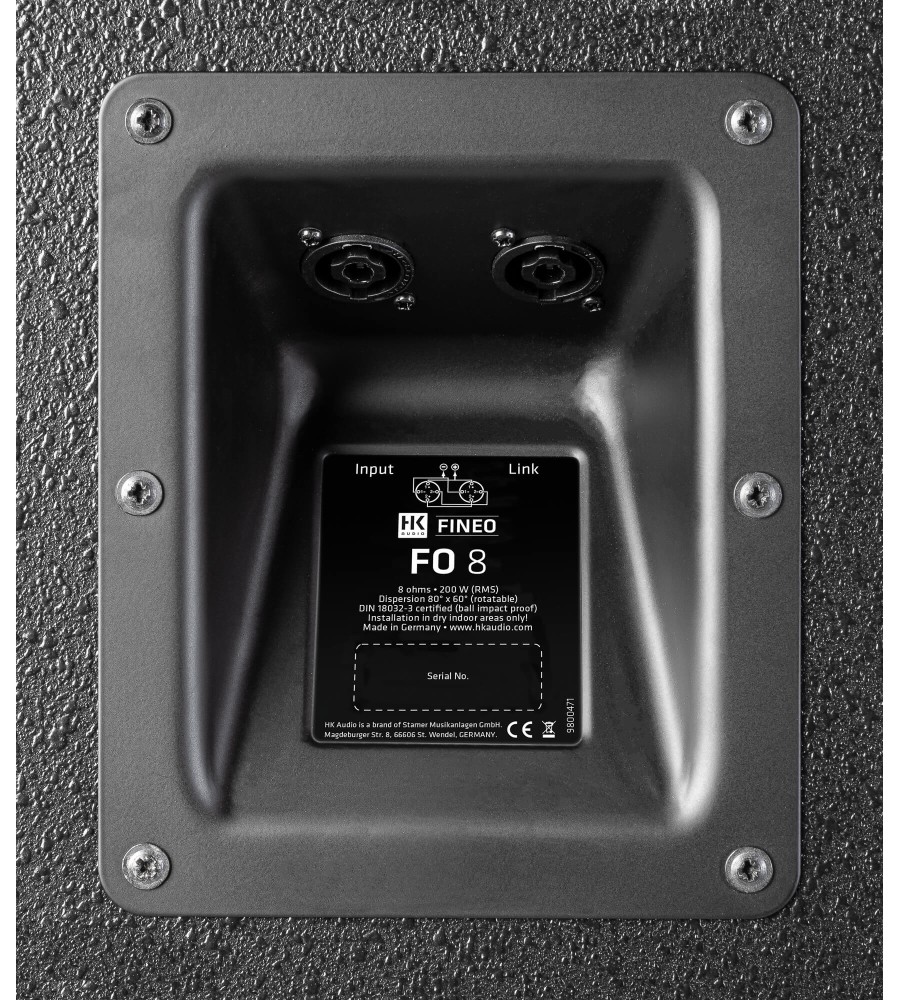

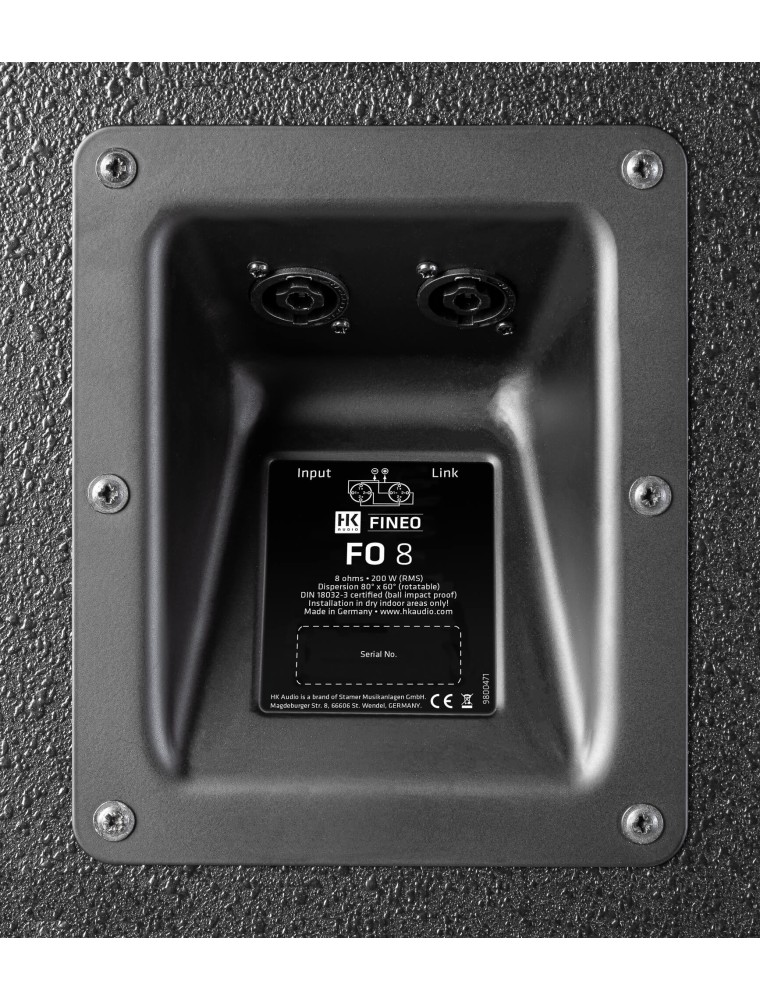

Connections
Input	1 x NL4 Speakon
Output/parallel output	1 x NL4 Speakon
Pin assignment	1+/- (input/parallel output), 2+/- (wired through)

Amping/DSP Presets
Lab.Gruppen	IPX
LEA Professional	Sharkware

Amping/Filter Sheets
Filter specifications in tabular form for frequency response equalization Without limiter specifications	BiampTesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix

Mechanical data
Mounting points	2 x M8 lateral, 2 x M8 bottom/lid, 1 x M8 rear, 4 x M4 rear
Cabinet material	MDF
Cabinet surface	1-component acrylic enamel

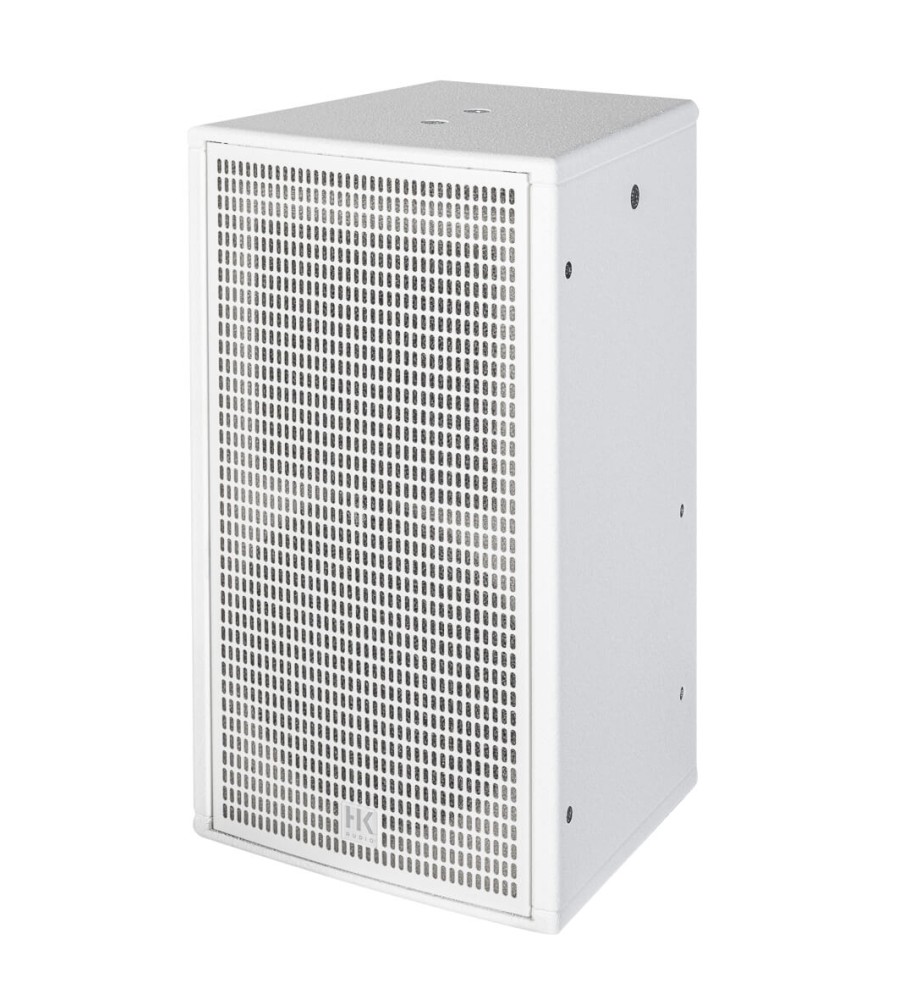

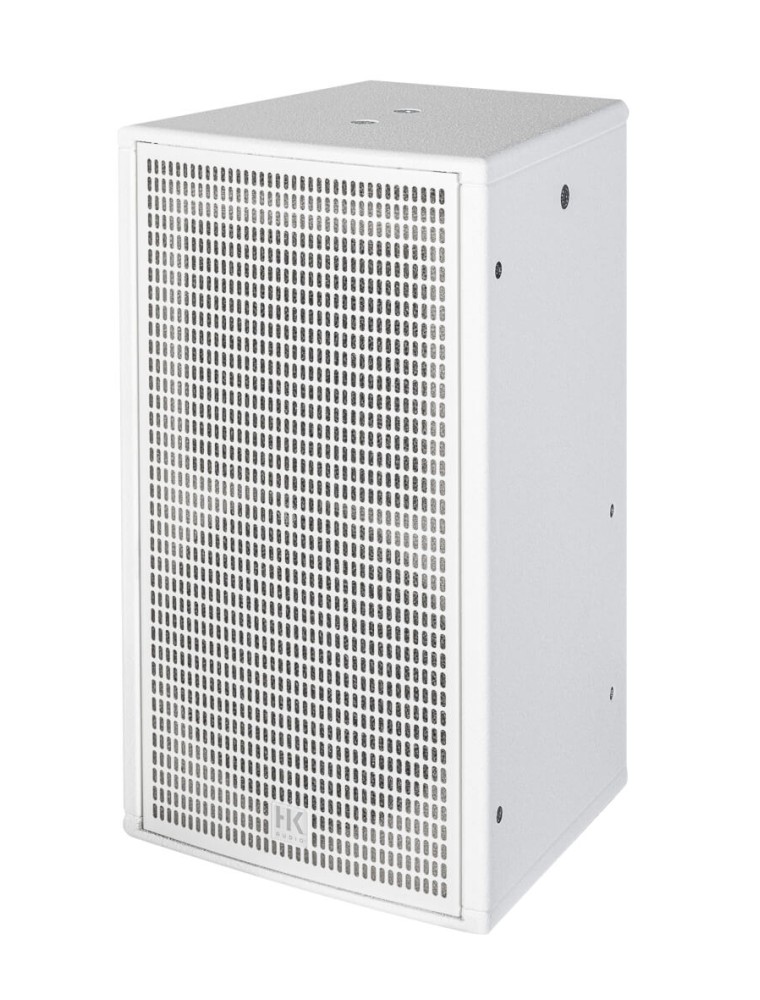

Color	Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog
Front grille	Steel front grille with anticorrosive coating, backed acoustic foam
Optional accessories	U-bracket, screw-on flange SF-35, swivel and tilt wall mount (size S for VESA MIS-D, 100 x 100 mm), AP-8
Rear hole pattern	VESA MIS-D (100 x 100 mm)
Dimensions (WxHxD)	263 x 474 x 263 mm 10.35 x 18.66 x 10.35 inch
Weight	11 kg 24.25 Ibs
