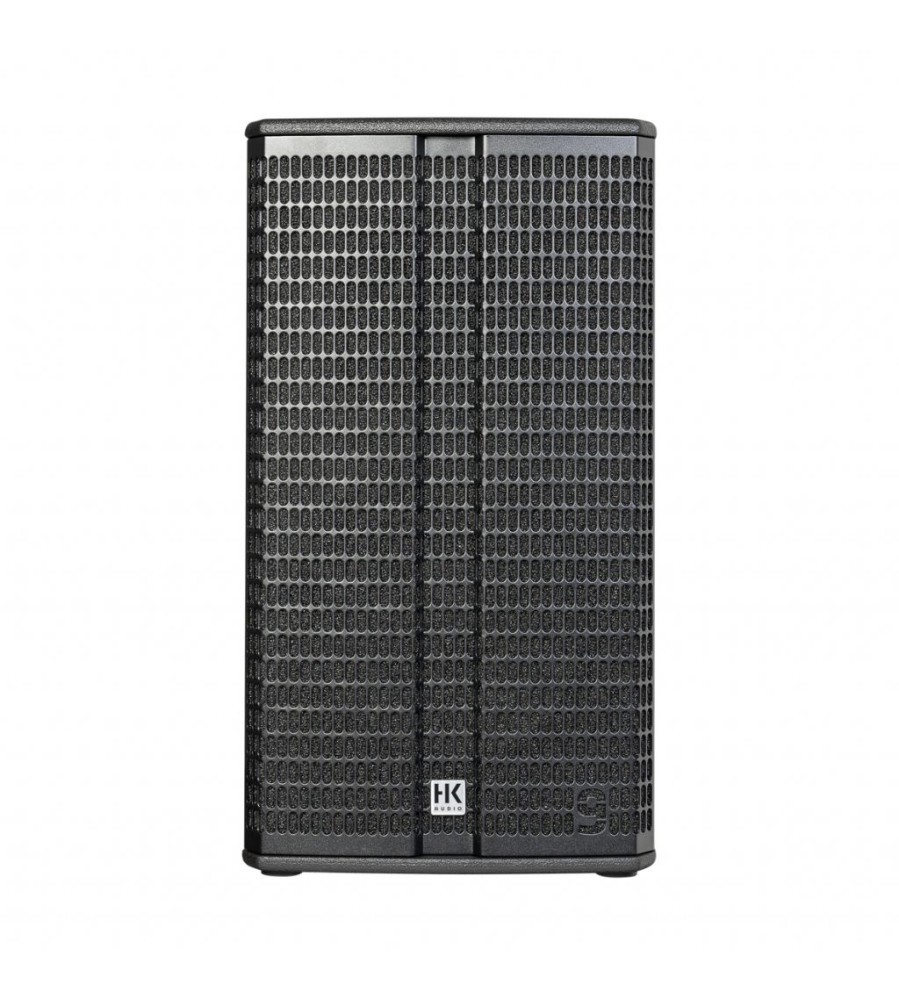

HK AUDIO LINEAR 9 112 XA

Κωδικός Προϊόντος: HK AUDIO LINEAR 9 112 XA

Διαθεσιμότητα: Μη διαθέσιμο

Max. SPL @ 10% THD	128 dB half space (70 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD	131 dB half space
Frequency response +/-3 dB	67 Hz – 19 kHz
Frequency response -10 dB	62 Hz – 20 kHz
Power amp output (RMS)	700 W
Amp type	Class D - biamped
LF driver	-
Low-/mid speaker	1x 12", 2.5" voice coil
HF driver	1", 1.7" voice coil
Horn directivity	70° x 50° CD horn, rotatable
Active crossover frequency	1.6 kHz FIR X-over with 60 dB/oct.
Maximum input level	+20 dBu
Analog inputs	1x XLR combo balanced
Analog thru	1x XLR balanced
DSP Out	1x XLR balanced
Network port	Ethercon RJ45, 1x In, 1x Thru
Filter presets	Flat, Monitor, Low Cut, Remote
Remote software	DSP CONTROL (Windows, macOS)
DSP functions	Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate	96 kHz
System latency	Less than 2.6 ms
Mains connector	1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
Power consuption	1 A / 100–240 V nominal according to EN 62368-1
Clustering angle	-
Angles up (Monitor angle)	30°
Pole mount	DuoTilt 3°/7°
Rigging points	5x M8 (AP-8)
Carrying handles	1x SingleGrip, 1x MultiGrip
Housing	Birch multiplex
Finish	PU coating black
Front grille	2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)	37 x 67 x 31 cm 14-9/16 x 26-3/8 x 12-13/64"
Weight	20.5 kg / 45.2 lbs

Οι τιμές δεν περιλαμβάνουν ΦΠΑ.
