HK AUDIO LINEAR 5 MK II 115 XA

Max. SPL @ 10 % THD :    130 dB half space (70 Hz – 12 kHz averaged)
Max. SPL Peak @ 10 % THD :    138 dB half space
Frequency response +/-3 dB :    64 Hz – 12 kHz
Frequency response -10 dB :    59 Hz – 19 kHz
Power amp output:     (RMS/Peak) 600 / 1,200 W
Amplifier type :    Class D – bi-amped
Low/mid speaker :    1 x 15", 3" voice coil
HF driver :    1", 1.7" voice coil
Horn characteristics :    70° x 50° CD horn, rotatable
Active x-over frequency :    1.6 kHz FIR X-over with 72 dB/oct.
Maximum input level :    20 dBu

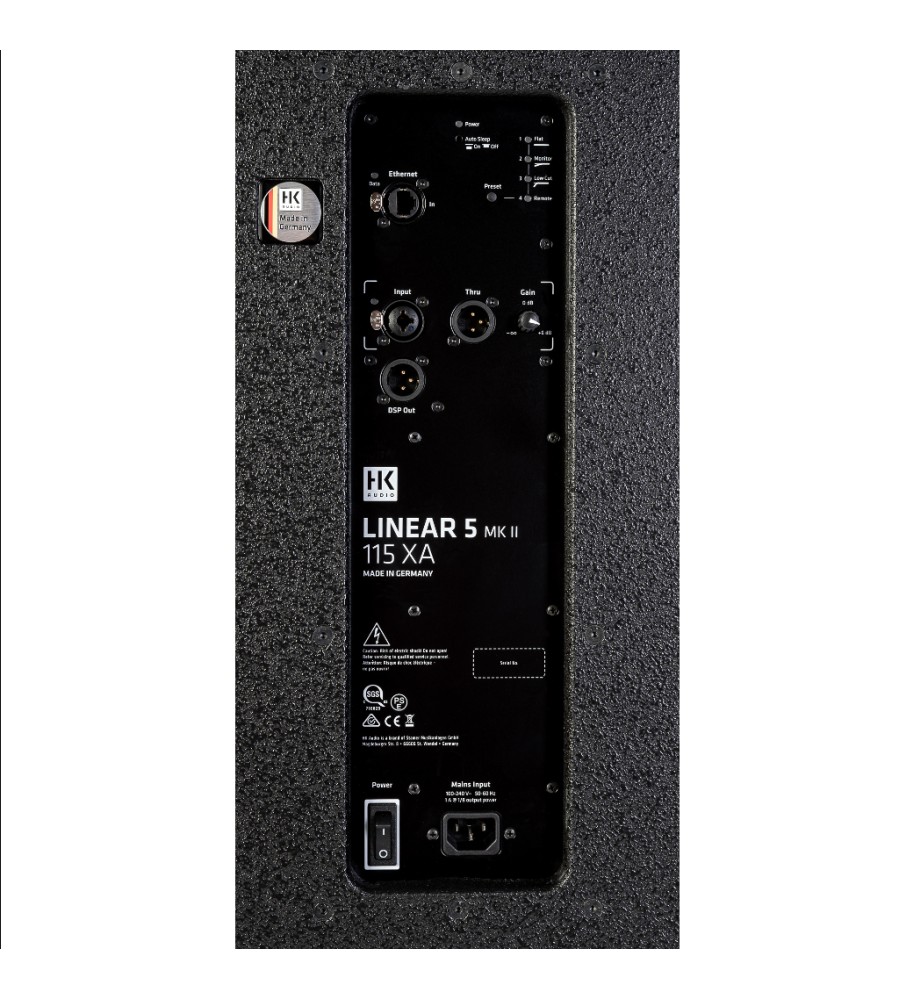

Analogue inputs:     1 x XLR combo balanced
Analogue Thru :    1 x XLR balanced
DSP Out :    1 x XLR balanced
Network port :    EtherCON RJ45, 1 x In
Filter presets :    Flat, Monitor, Low Cut, Remote
Remote software :    DSP CONTROL (Windows, Mac OS)
DSP functions :    Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-
Pass Filter, Polarity, Level, Delay, Limiter, Mute Sample rate :    48 kHz
System latency :    Less than 2 ms
Mains connection :    1x IEC connector with V-Lock securing system, 100-240 V
Power consumption :    1 A / 100–240 V nominal according to EN 62368-1
Setup angle :    31°

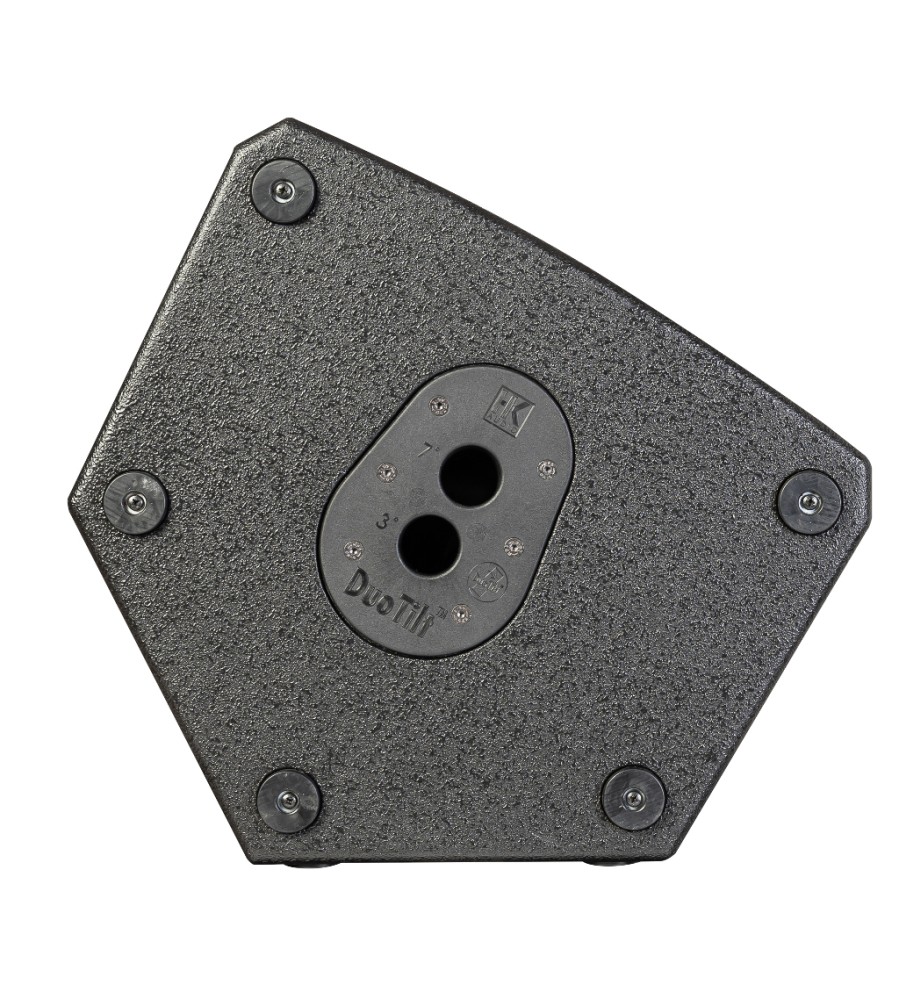

Pole mount :    DuoTilt 3°/7°
Rigging points :    3x M8 (AP-8)
Carrying handles :    2 x MultiGrip, 1 x SingleGrip
Housing :    Hybrid (birch multiplex/MDF)
Surface:     Black acrylic enamel

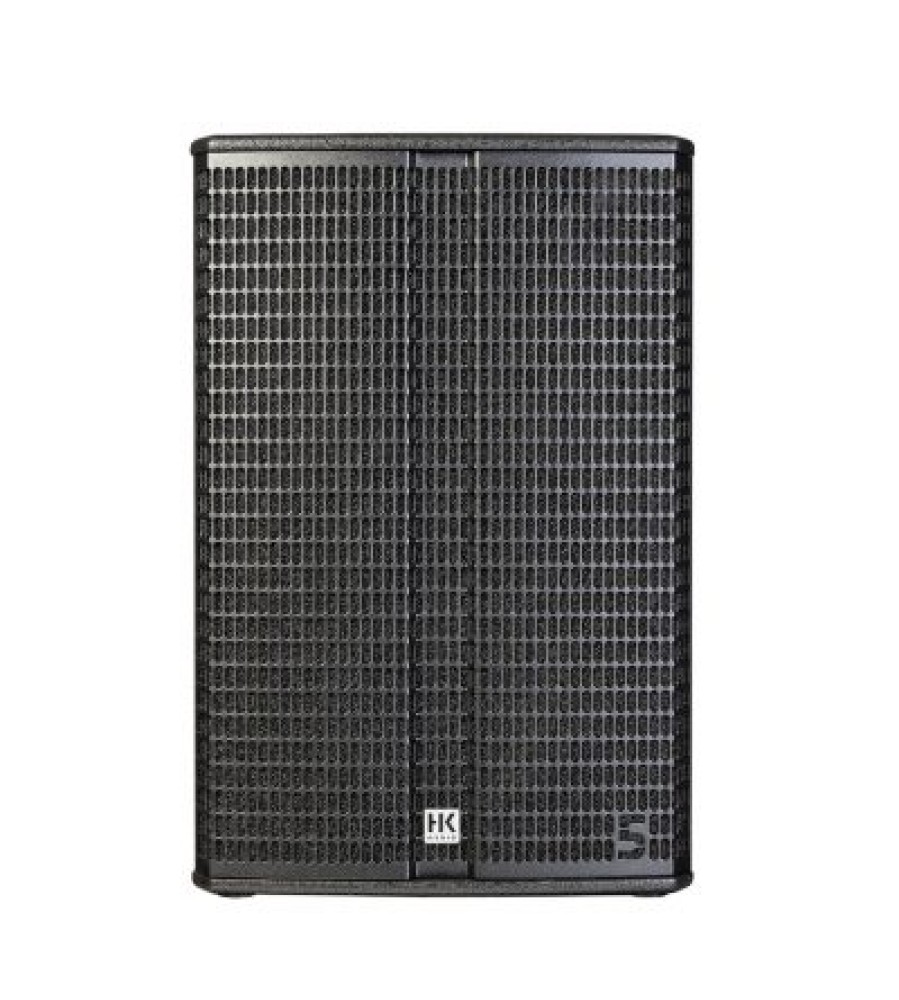

Front grille :    2 mm metal grille backed with black acoustic foam
Dimensions:     (WxHxD) 45 x 68.5 x 42 cm 17-23/32 x 26-31/32 x 16-17/32"
Weight :    27.6 kg / 60.85 lbs
