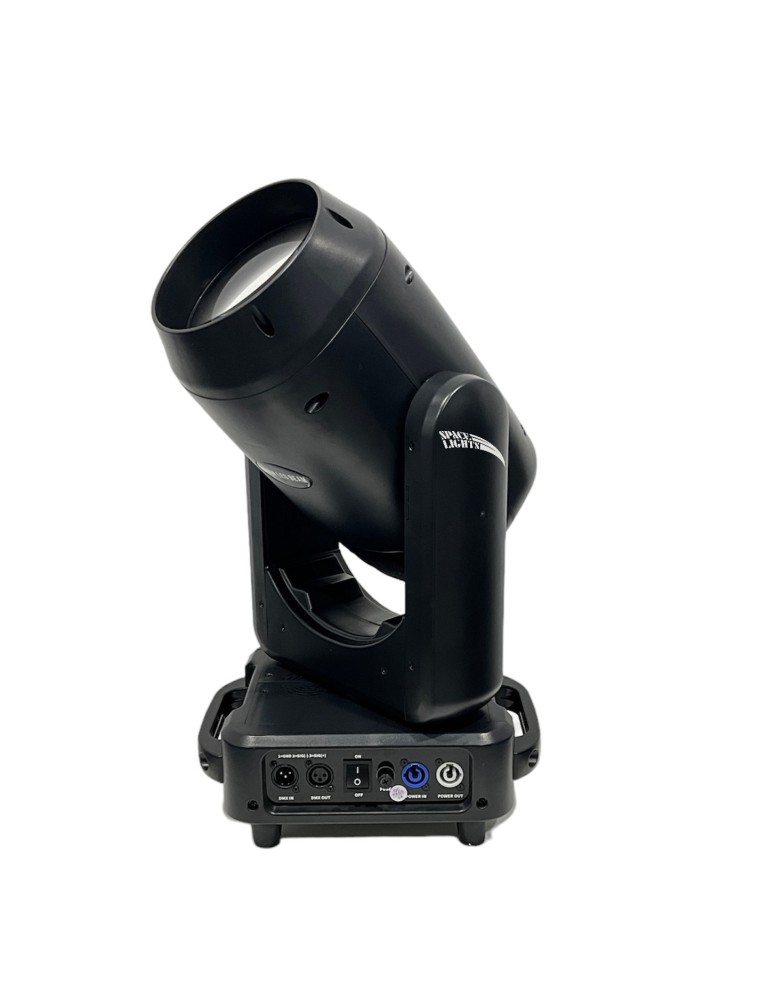

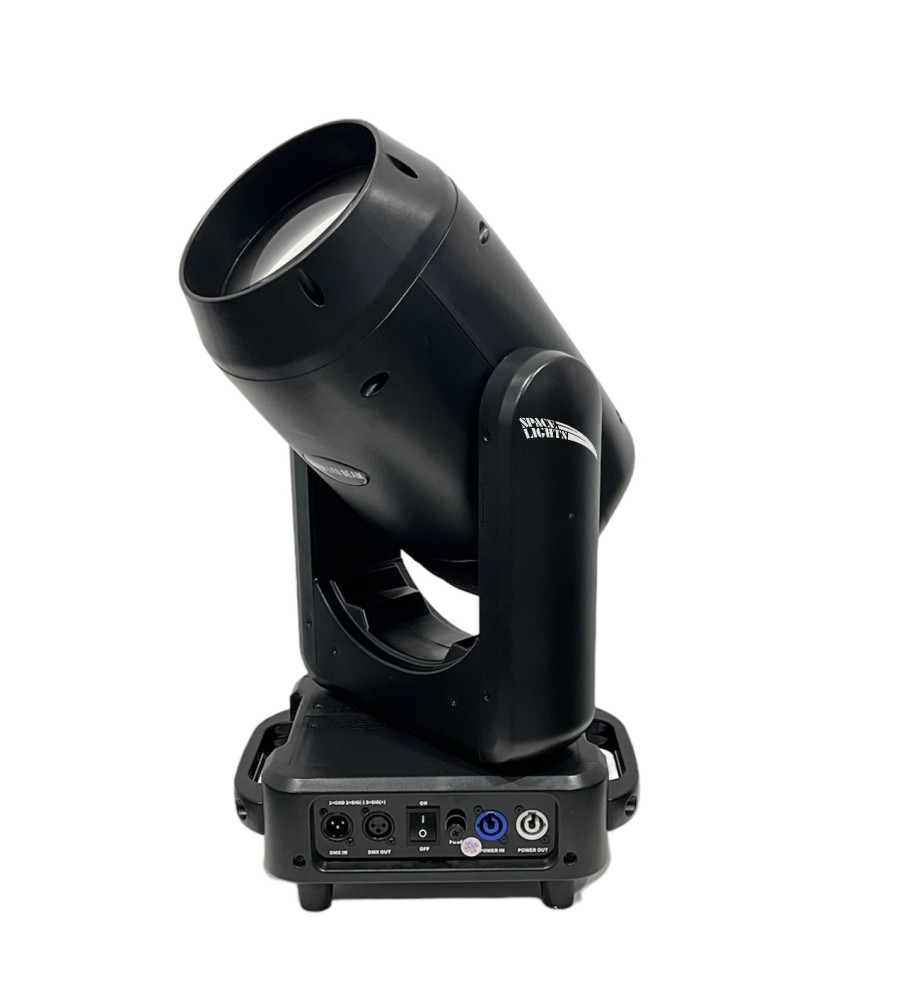

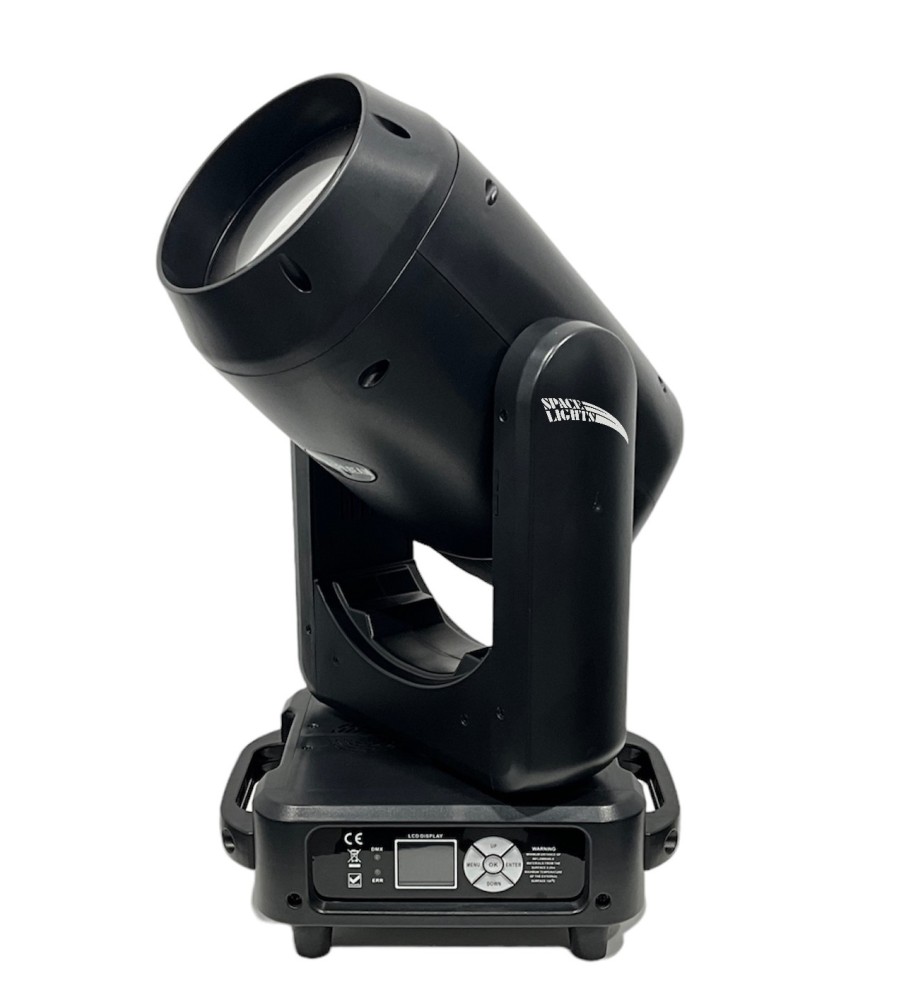

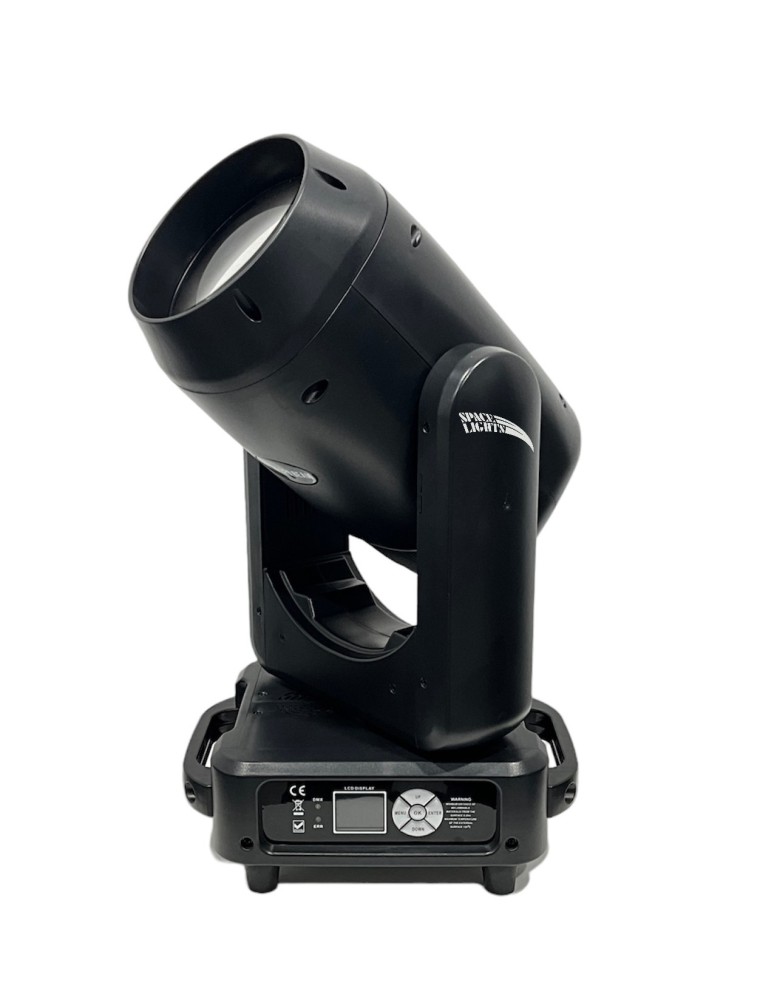

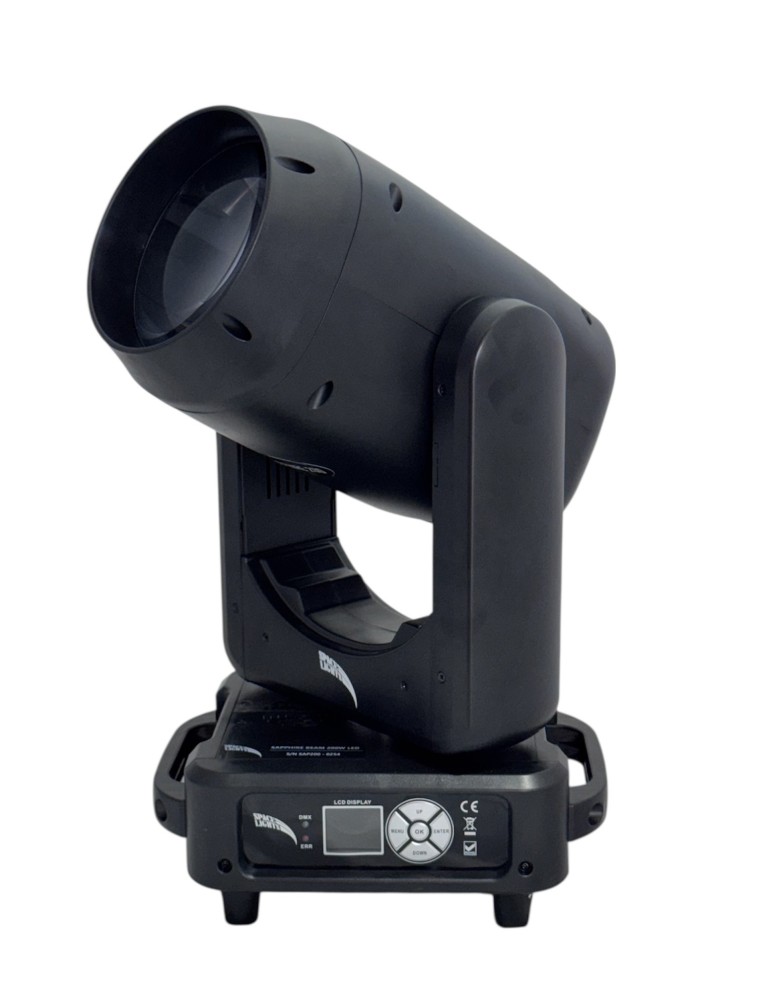

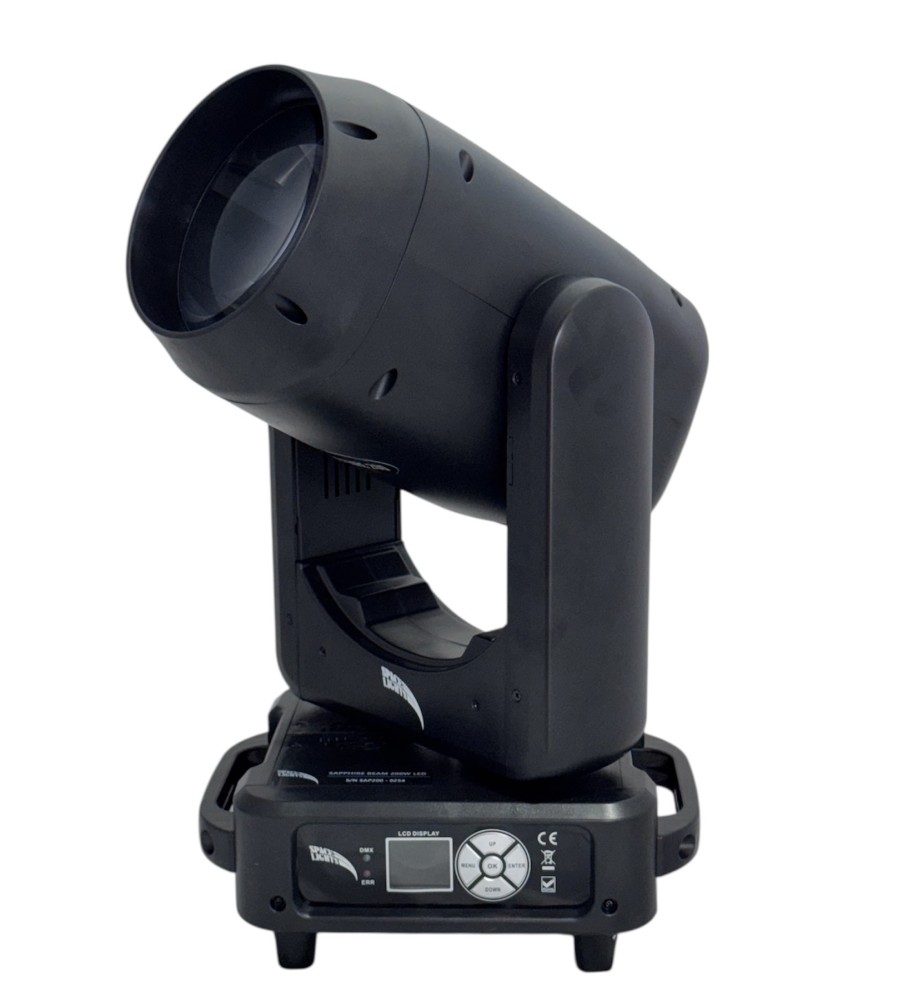

SAPPHIRE BEAM 200W LED

Lamp type:  single white LED 200w, lifespan 30000h

Color temp : 8000K

Beam angle: 0 - 2° ,

Lens: Glass optical 3 lens group

1 Fixed color wheel with14 color filters + white

two-way rotating and 1 rainbow effec

1 Gobo wheel with 13 metal gobos+white

2 rotating prisms with moving effect, 1 frost effect,dimming and strobe function

0-100% linear dimmer, strobe speed 1-13/sec

Angle: PAN=540°, TILT=270° 16 bit precision scan

PAN and TILT adopt electro-optic reset system, automatically reset the pan and tilt movement caused by accident.

Control channel: 16,20CH control mode

Protocol: Standard DMX512 protocol;

Display: LCD screen

Resolution control: Pan, Tilt, Gobo

DMX signal connection: 3 pin xlr input / output

Fixture reset is controlled through menu or light console

Intelligent fan control

Electronic sensor detection

DMX channel level monitoring

Motor zero 16bit regulation and control

AC100-240V 50/60Hz

Input power: 300w

Weight  13kgs

Product Dimension :  31 x 25 x 43 CM
