NIMBO-26

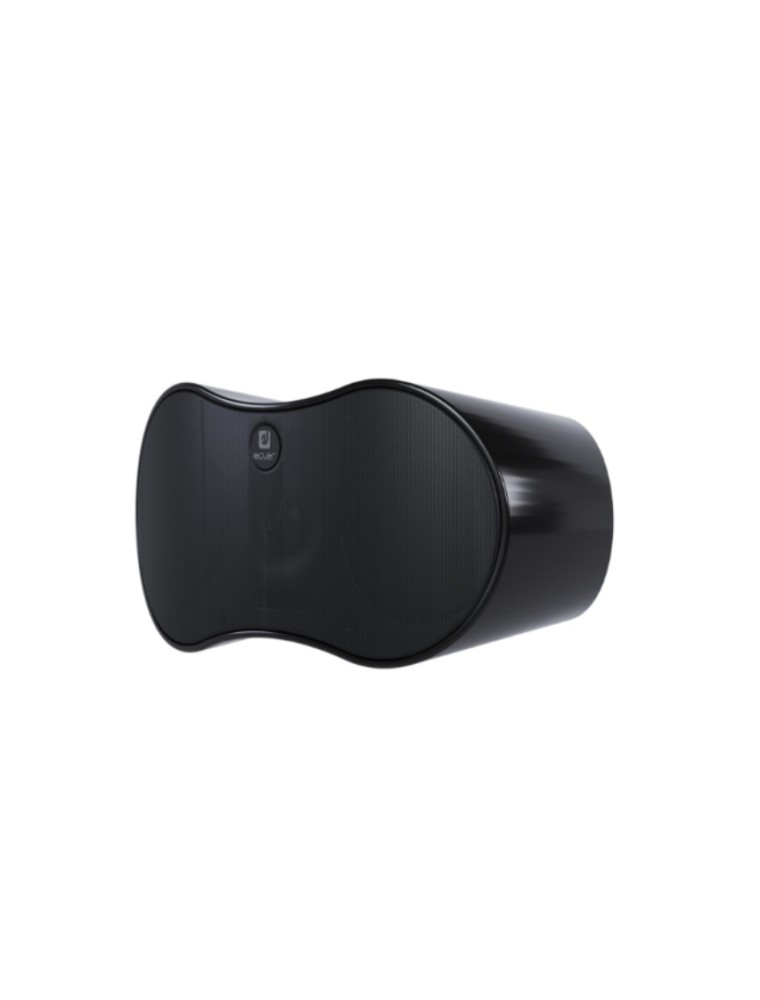

NIMBO-26 is a premium performance 2-way passive loudspeaker with 140W RMS power, in a compact size with extended low frequency response. Suitable for outdoor applications, with a cloud-inspired design, result of Ecler's engineering skills and the collaboration of architects and interior designers. Including 2 x 6.5" woofers and a 1" silk tweeter located in the acoustic centre, acting as a single point source to disperse the sound evenly. The nominal impedance of the speaker can be selected to 4 ohm or 16 ohm thanks to the front switch located behind the logo, which allows to modify its impedance without removing the aluminium front grille. It includes the robust VEASY wall bracket, allowing tilt and pan adjustment using a single screw.

2-way passive loudspeaker for surface mounting

2x 6.5" woofers with 4-layer voice coil improves power handling and low frequency response

1" silk tweeter with neodymium magnet and ferrofluid

Bass reflex port

ABS reinforced with fiberglass non resonant compact enclosure

Wide dispersion pattern

Stack Output

VEASY bracket compatible with VESA 100 included. Quick and easy to

install, including jumps and markings for repeating speaker orientation.

Weather-protected with an IP-44 rating

Available in white (RAL9003), black (RAL9005) or gold colour (RAL1036, approx.)

RAL paint customization available

Ease files available

Effective Freq. Range  60Hz-20kHz (-10dB)

Coverage angle / Dispersion  210° x 228° (HxV)

Power handling  140W RMS / 560 W Peak

Sensitivity  92 db (1W/1m)

Maximum SPL  113 dB continuous / 119 dB peak

Recommended amplifier power  280W RMS

Ways  2-ways full range

Low frequency driver  2 x 6.5" Woofer

High frequency driver  1" Silk Dome Tweeter

Nominal impedance  4Ω / 16Ω

Crossover filter  1,65 KHz

Operating humidity  <85% HR

Finished colour  White (RAL9003), Black (RAL9005), or Gold (RAL1036 approx.)

Dimensions  542.5 x 261 x 269 mm / 21.36 x 10.28 x 10.59 in. (WxHxD)

Weight  8.5 Kg / 18.74 lb
