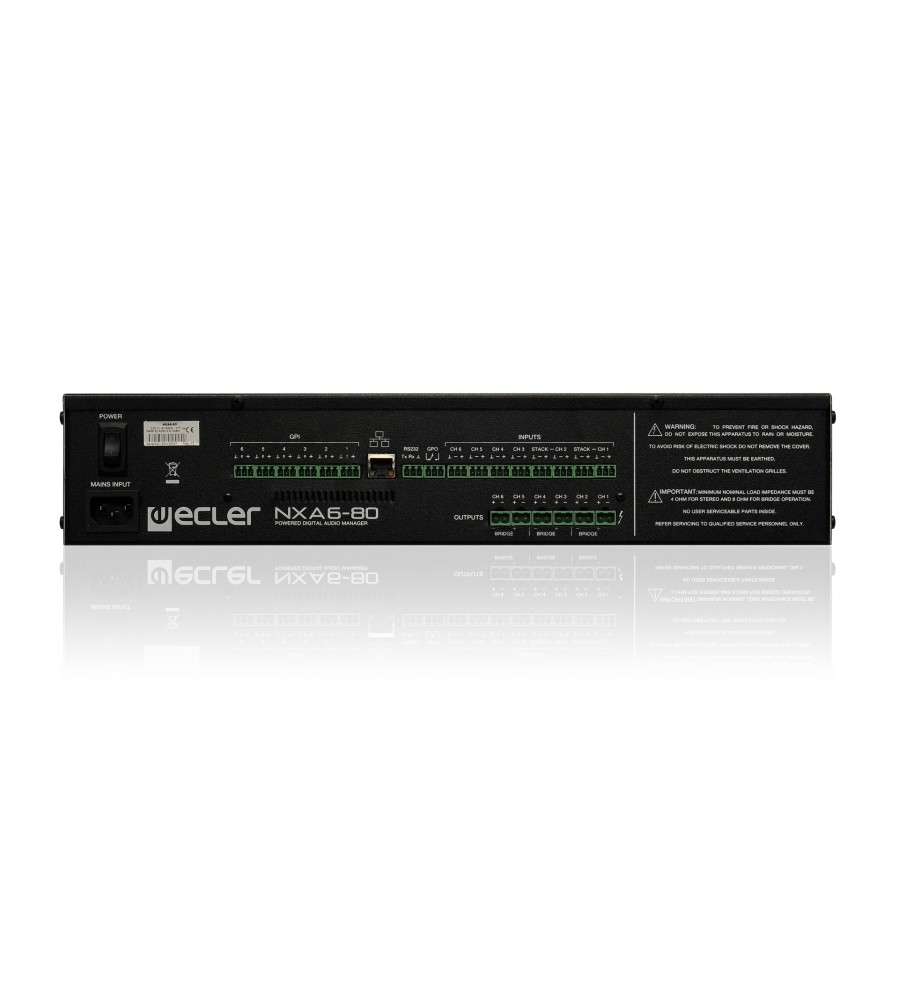

ECLER NXA6-80

2 Bridged Channels @ 8Ω (RMS) 158W

1 Channel @ 4Ω (RMS) 84W

1 Channel @ 8Ω (RMS) 49W

All Channels @ 4Ω (RMS) 65W

Communication Interfaces 1 x Ethernet + 1 x RS232 TP-NET third-party control

Remote control 6 x GPI Ports

Dimensions 482. 6x 88 x 373 mm

Weight 10.2 kg

Key Features
• 6 analogue audio inputs x 6 powered audio outputs
• Class D amplifiers (eco friendly)
• Auto stand-by function (eco friendly)
• 100% silent (fanless convection cooling system)
• Health self-test mode function, with FAULT RELAY (for an external redundancy system)
• Integrated anti-clip system
• Integrated DSP processor. Main features:
- Inputs mixer independent per channel (all inputs available)
- VOLUME, MUTE, SOLO, PHASE INVERSION, MAX. VOL limit and MIN.VOL limit, LP and HP Crossover filters, parametric EQ filters bank, Ducker, Delay, Compressor and more settings configurable per channel.
- Ethernet interface, compatible with EclerNet Manager platform and UCP remote control system
- TP-NET third-party remote control (compatible with CRESTRON®, AMX®, RTI®, VITY®, etc.)

Applications
• Live sound
• Centralized, distributed or hybrid fixed installation
• Integration in installation global control systems
• Big Public Address zoned systems
• Installations requiring remote supervision, diagnostic and
adjustment via Internet
