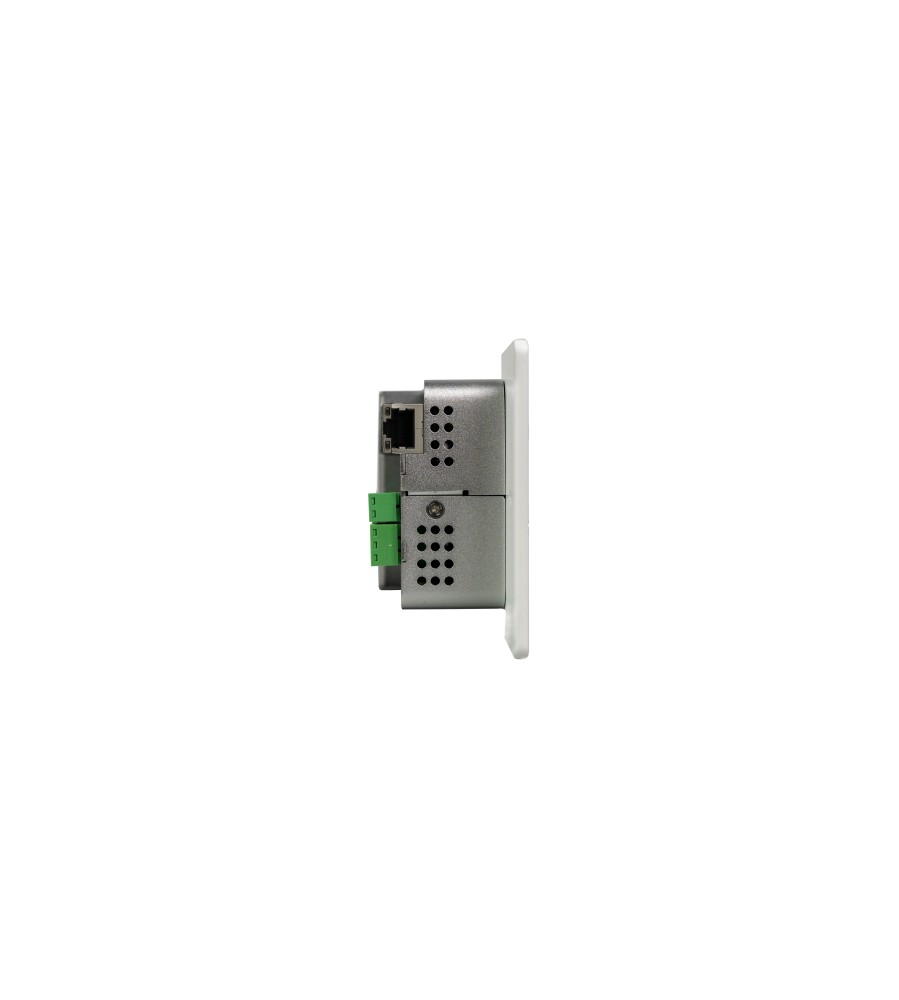

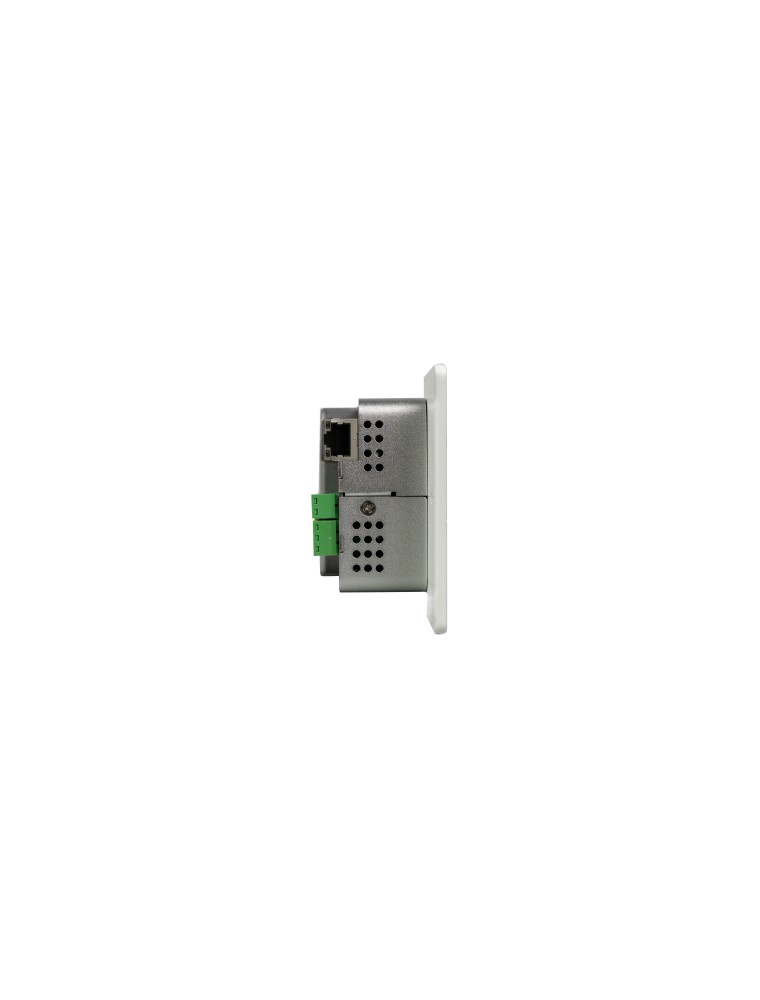

VEO-XWT44E HDBaseT Wall Plate Transmitter

Κωδικός Προϊόντος: 1.045

Διαθεσιμότητα: Μη διαθέσιμο

VEO-XWT44E HDBaseT Wall Plate Transmitter

Περιγραφή

VEO-XWT44E is a HDBaseT transmitter in European 2-gang wallplate format. It allows to extend one 4K video signal up to 40m over a single Cat 5e/6 cable or a FullHD signal up to 70m when connected to VEO-XRT44. It supports real 4K video signals at 60Hz with 4:4:4 YUV chroma subsampling and HDR 10 with a maximum bandwidth of 18Gbps. With bidirectional PoC feature, the transmitter can be powered by the receiver and vice versa. A second front panel button can be used to switch ON/OFF a display via CEC or it can be alternatively programmed by IR learning or RS-232 to send two RS-232 commands, offering a simple and versatile control option.

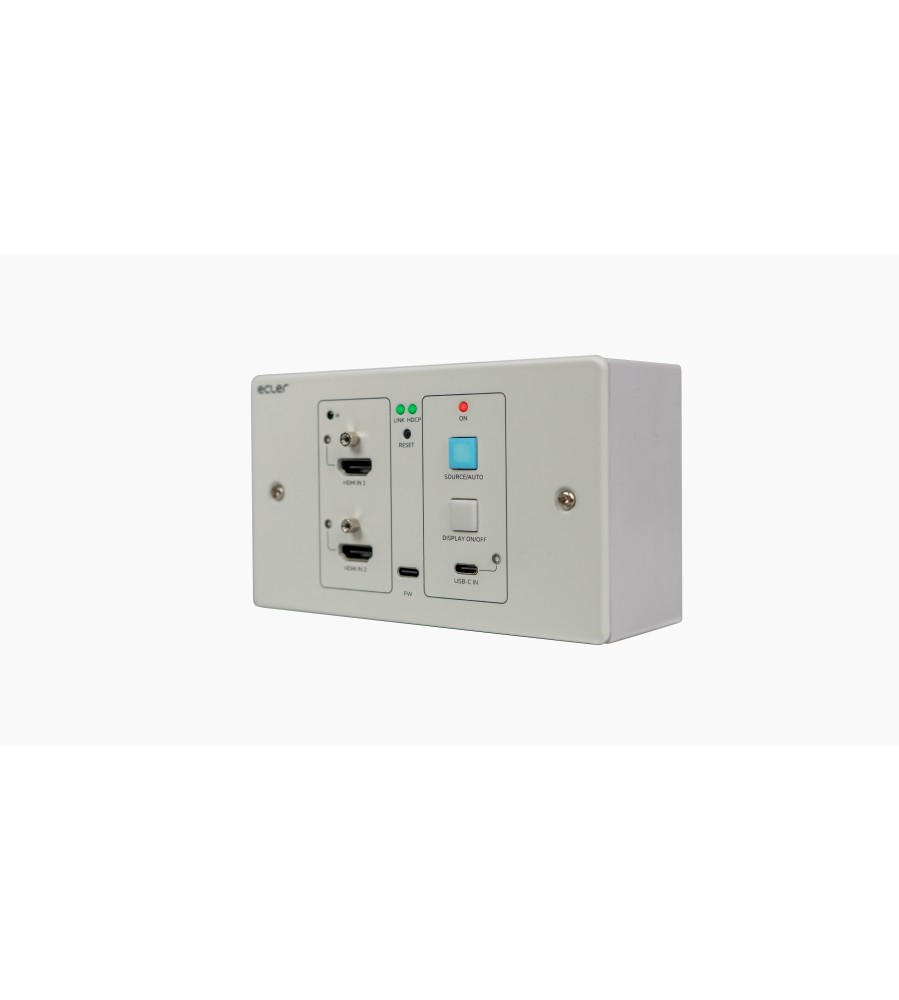

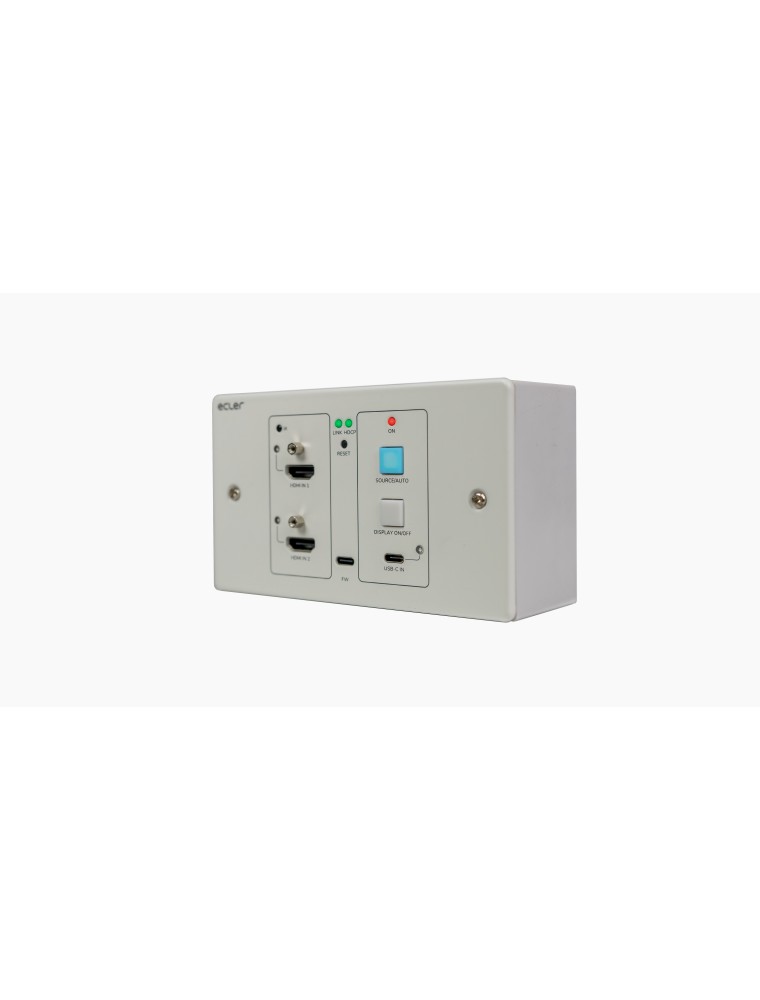

4K HDMI wall-plate transmitter with 2 HDMI IN, and 1 USB-C IN

Supports HDMI 2.0, 4Kx2K/60Hz/4:4:4

HDCP 2.2 compliant

Video source auto-switching

Video lossless compression for HDBaseT technology, transmission up to 40m@4K and 70m@1080p over CATx cable

Displays can be turned ON/OFF via CEC & RS-232 commands by ‘DISPLAY ON/OFF’ button

RS-232 and IR pass through

IR learning to control display on/off.

EDID pass through and smart managing

Two-way PoC Supports CEC pass-through.

Provides LEDs to indicate the current operating status.

Firmware upgrade by Micro-USB port.

ESD protection

Video Input Connectors	2x HDMI Type A Female, 2.0, 18 Gbps, 1x USB Type C
Video Input Resolutions	Up to 4Kx2K@60Hz
Chroma Subsampling	4:4:4
Colour Depth	8 bit
Colour Space	YUV
HDCP	2.2 compliant
HDR	HDR10
Scaling Features	No
HDMI Distance	up to 10 meters / 33 ft with Ecler VEO cables
Audio Formats	Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-X, DTS-HD Master Audio, DTS 5.1, PCM.
Sample Rate	32 KHz, 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176.4 KHz, 192 KHz
Bit Depth	up to 24-bit
Frequency Response	20Hz–20KHz, ±3dB
ARC/eARC	No
Control Connectors	2-pin Euroblock, 3-pin Euroblock, Type-C USB Female for FW update
Control Protocols	IR, RS-232
Control Buttons	Reset button, Display On/Off button, Source/Auto button
EDID Management	Pass-through and smart management
Status Indicators	Link LED, HDCP LED, Power LED, HDMI IN 1/2 LED, USB-C LED
Pass-through Connectors	2-pin Euroblock, 3-pin Euroblock
Pass-through Protocols	IR, RS-232, CEC
Transmission Distance	CAT5e/6 @ 4K up to 35 m / up to 115 feet CAT6a/7 @ 4K up to 40 m/ up to 130 feet CAT5e/6 @ 1080p up to 60 m / up to 197 feet CAT6a/7 @ 1080p up to 70 m / up to 230 feet
Power supply	PoC bidirectional; External: AC 100V - 240V @ 50-60Hz, Output: DC 24V-1.25A
DC mains connector	2-pin Euroblock to connect DC 24V adapter
Power consumption	22W Maximum
Operating temperature	Min: -10°C ; 14°F Max: 55°C ; 131°F
Operating humidity	10 - 90% RH (no condensation)
Installation options	Wall
Included accessories	Surface mount box EU, 2x Mounting screws, 3-pin Euroblock, 3x 2-pin Euroblock, Power Adapter (24V DC 1.25A), Quick guide and warranty
Dimensions	146 × 86 × 42 mm / 5.75 x 3.39 x 1.65 in. (WxHxD)
Weight	0.294 kg / 0.648 lb
Shipping dimensions	183 x 105 x 133 mm / 7.2 x 4.13 x 5.24 in. (WxHxD)
Shipping weight	0.8 kg / 1.76 lb
Chassis material	Plastic
